Lithium Fluoride (LiF) Components
• Optically isotropic, medium hard, hygroscopic, insoluble in water • Wide transmission range from 150 nm to 6000 nm Lithium fluoride (LiF) crystals are well-suited for manufacturing of optical elements (mirrors,… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Diameter | Thickness | Material Type | Material | Coating S1W1 | Coating S2W1 | |
|---|---|---|---|---|---|---|---|
| 510-5253 | 25.4 mm | 3 mm | Crystalline Material | LIF | Uncoated | Uncoated |
49 in stock
Ships in: 2–5 calendar days
$147
|
| 510-5384 | 38.1 mm | 4 mm | Crystalline Material | LIF | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$310
|
| 510-5506 | 50.8 mm | 6 mm | Crystalline Material | LIF | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$454
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Diameter Lower Tolerance | -0.1 mm |
| Thickness Tolerance Upper Limit | -0.2 mm |
| Thickness Tolerance Lower Limit | 0.2 mm |
| Material Type | Crystalline Material |
| Material | LIF |
Surface 1
| Surface quality, ISO | 60-40 |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 90 % - 100 % |
| Irregularity, fringes @633 nm | 0.5 fr |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, ISO | 60-40 |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 90 % - 100 % |
| Irregularity, fringes @633 nm | 0.5 fr |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Optically isotropic, medium hard, hygroscopic, insoluble in water

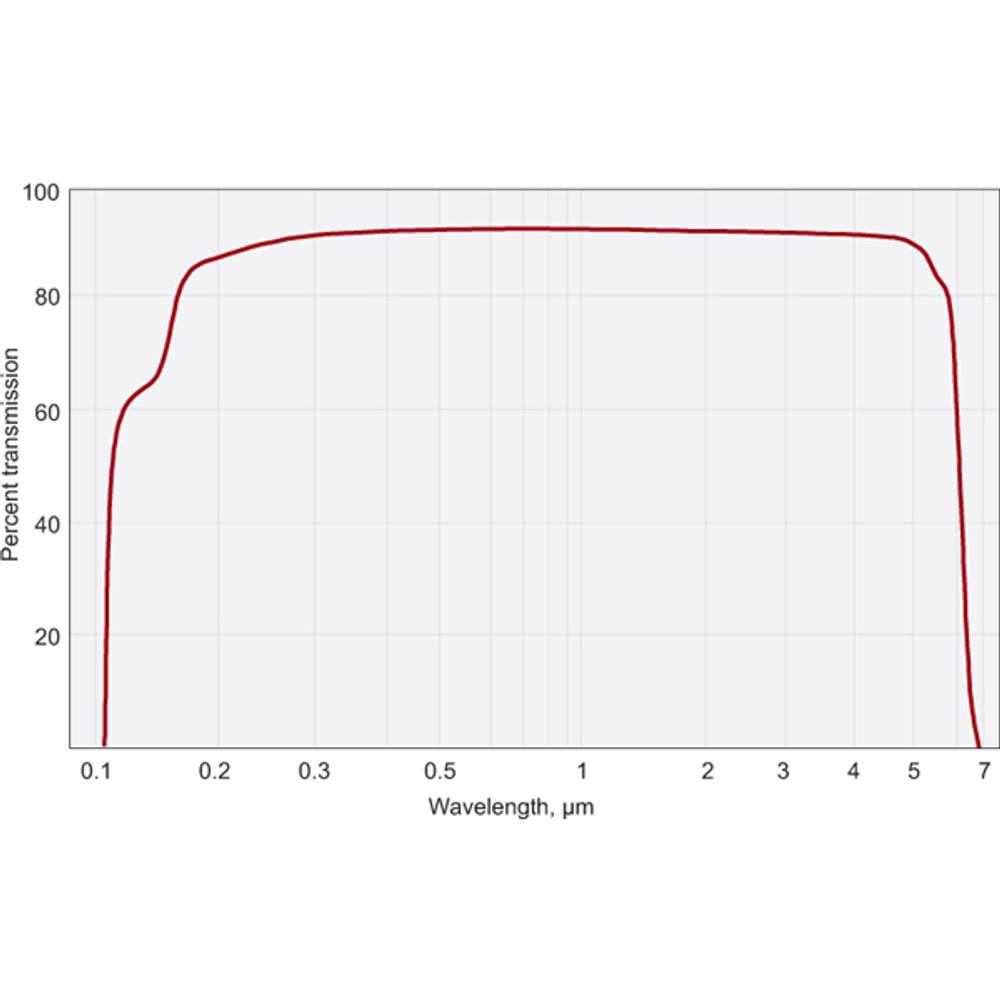

- Wide transmission range from 150 nm to 6000 nm
Lithium fluoride (LiF) crystals are well-suited for manufacturing of optical elements (mirrors, windows, lenses) for UV, visible and IR applications. Lithium fluoride (LiF) is very useful for x-ray monochromators and for the study of fundamental properties and defects in crystals
