Optical Component Mounts 830-0037 SKU: 830-0037-10

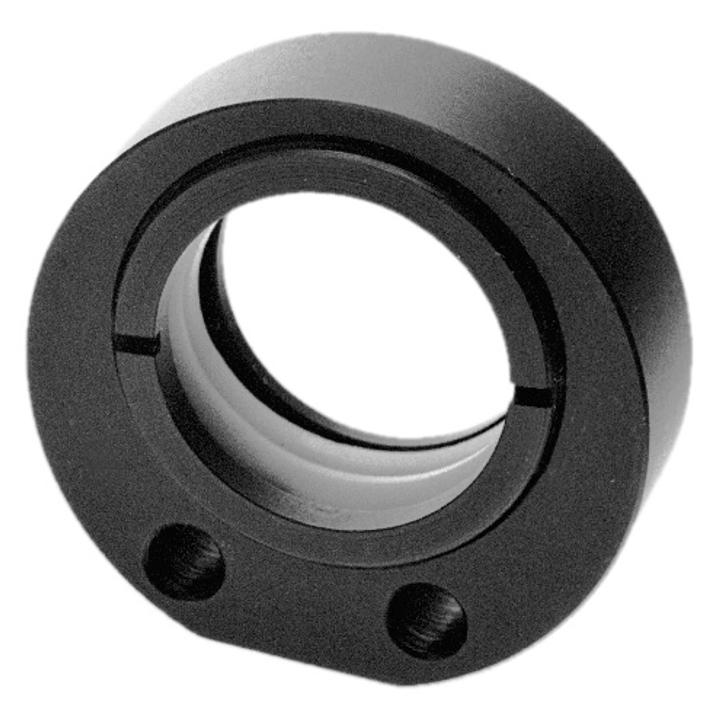

Optical Component Mounts 830-0037 can be used to hold round and thin optical elements of standard sizes. Mounts vary in dimensions so as to support diameters from 12,7 to 75 mm (0.5" to 2"). Original design allows to decrease the mount's dimensions and weight. Mounting holes:…
Variant specifications
| Specification | Value |
|---|---|
| A | 12,7 (0,5'') |
| B | 26 |
| C | 8 |
| D | 12 |
| E | 10 |
| F | 13.5 |
| G | 8.5 |
Shared product specifications
These specifications apply across the Optical Component Mounts 830-0037 product family.
| 830-0037-10 Optical Component Mount - Solidworks file | |
| 830-0037-10 Optical Component Mount - DWG file | |
| 830-0037-25 Optical Component Mount - STEP file |
Classification
| Type | optical-mount |
