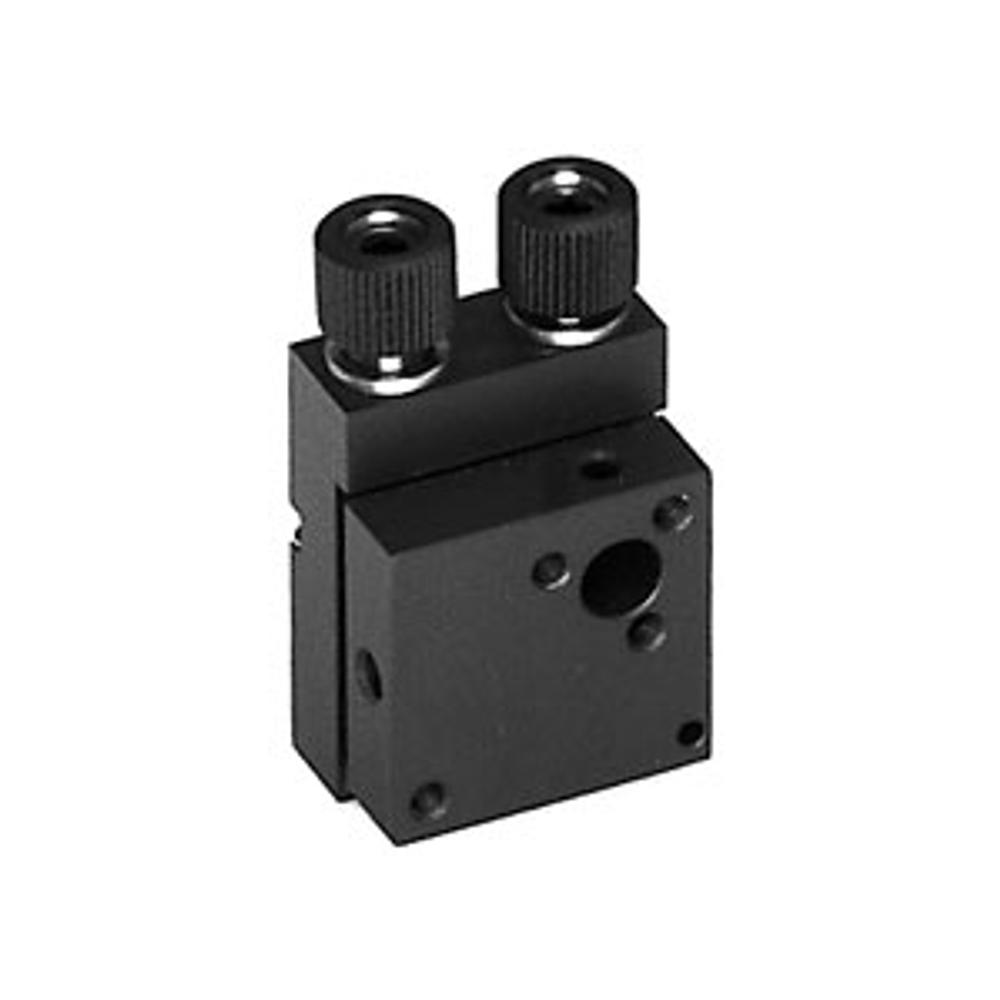

Small Optical Mount of Side Drive 840-0102-T

840-0102-T is designed to hold optics in schemes of high density. Adapters are available for round and rectangular lenses, mirrors and beamsplitters or polarizing cubes (see 840-0100-A1, -A2, -A3 or 840-0100-A4, -A5).

• Single side drive
• Tilt/tip ±5° about two orthogonal axes
• Fine adjustment screws with 0.25 mm pitch
• Hardened seats under adjustment screws
• Sensitivity 10 arcsec
• Large assortment of additional adapters
• Material: black anodized aluminium

A platform has four M3 holes on its face for mounting of optics, and three M4 holes on the sides for adapters. Adapters with connecting cones match the Ø6.2 mm hole, where a cone is clutched by the fixing screw. A platform is preloaded against a base by coil springs. The mount is held together and stabilized by a flat spring.

Special Base Mounts 840-0100-B allow to mount 840-0102-T in different positions. 840-0100-T may be mounted as a tilt platform.

Note: 810-0102-T replaces the older mount 840-0100-T. Adapters 840-0100-A combine with the new mount 840-0102-T in the same manner.

Special Base Mounts 840-0100-B allow to mount 840-0102-T in different positions. 840-0102-T may be mounted as a tilt platform.

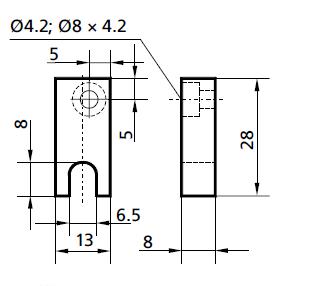

840-0100-B1 allows mounting with extremely low-profile.

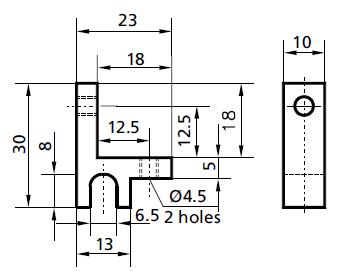

840-0100-B2 attaches to 840-0102-T both immediately and through the intermediate accessories.
