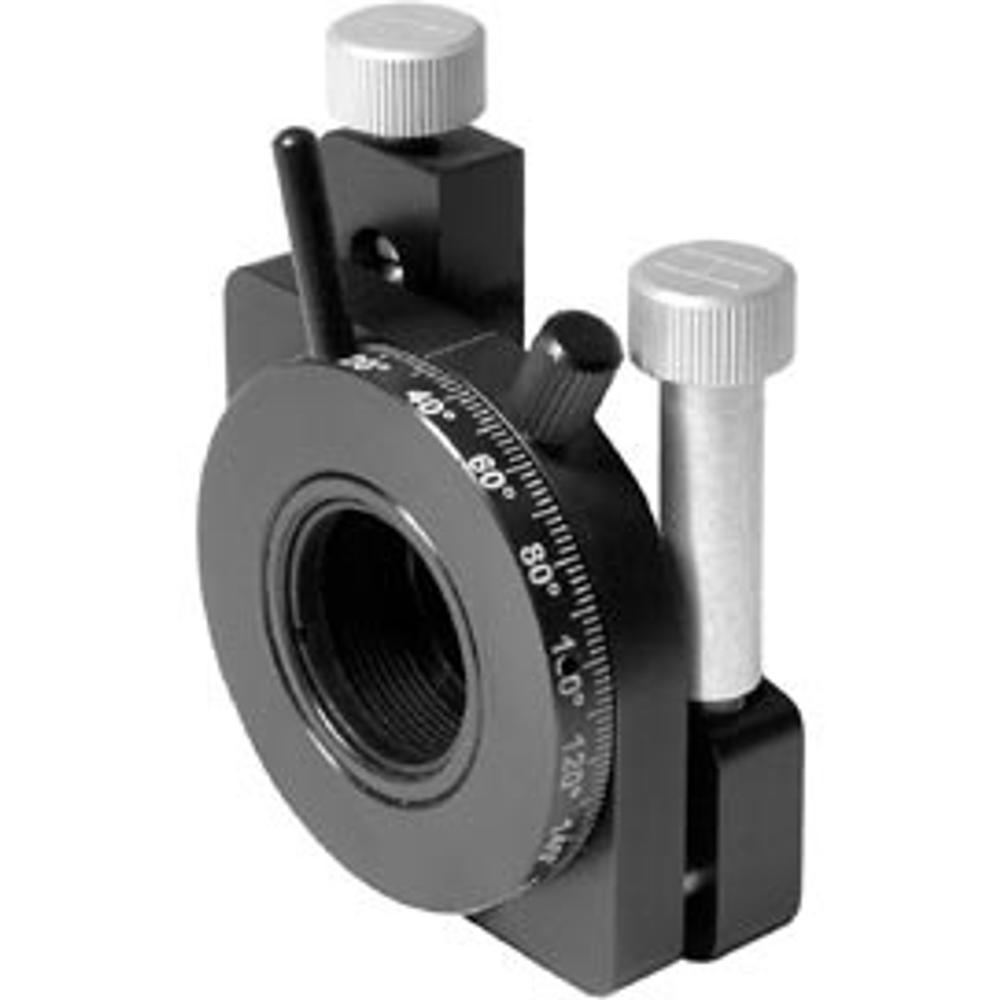

Optical Mount of Side Drive with Adjustable Polarizer Holder 840-0197
• For Ø 25.4 mm (1 inch) optics • Clear aperture 23 mm • Kinematic design • Dimensions most compact among 1 inch optics mounts • Tilt/tip range ±2° • Sensitivity 3 arcsec • Both tilt and tip controlled from aside the… Read more →
Order
| SKU | Product Type | Mounted Optics Diameter | Mounting Thread | |
|---|---|---|---|---|
| 840-0197 | Manual Optical Positioner, 2-screws | 25.4 mm - 25.4 mm | M4 |
17 in stock
Ships in: 2–5 calendar days
$227
|
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Mounting Thread | M4 |
| Angular Tilt Range | 4 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Number of Axes | 3 |
| Mount Clear Aperture | 23 mm |
| Width | 55 mm |
| Length | 28 mm |
| Height | 77 mm |
Description
- For Ø 25.4 mm (1 inch) optics
- Clear aperture 23 mm
- Kinematic design
- Dimensions most compact among 1 inch optics mounts
- Tilt/tip range ±2°
- Sensitivity 3 arcsec
- Both tilt and tip controlled from aside the optical path
- Ideal for dense optical schemes
- Fine adjustment screws with 0.25 mm pitch
- Hardened seats under adjustment screws
- Rotation range 360°
- Scale gradation 2°
- Weight 0,13 kg
- Accepts two pieces of optics:
-on the platform (adjustable),
-on the base (not adjustable)
Note: The fixing screw for optics on the base has a plastic tip. A retaining ring M27x1 to fix the optics is included. A tightening key for the retaining ring is available on request.
