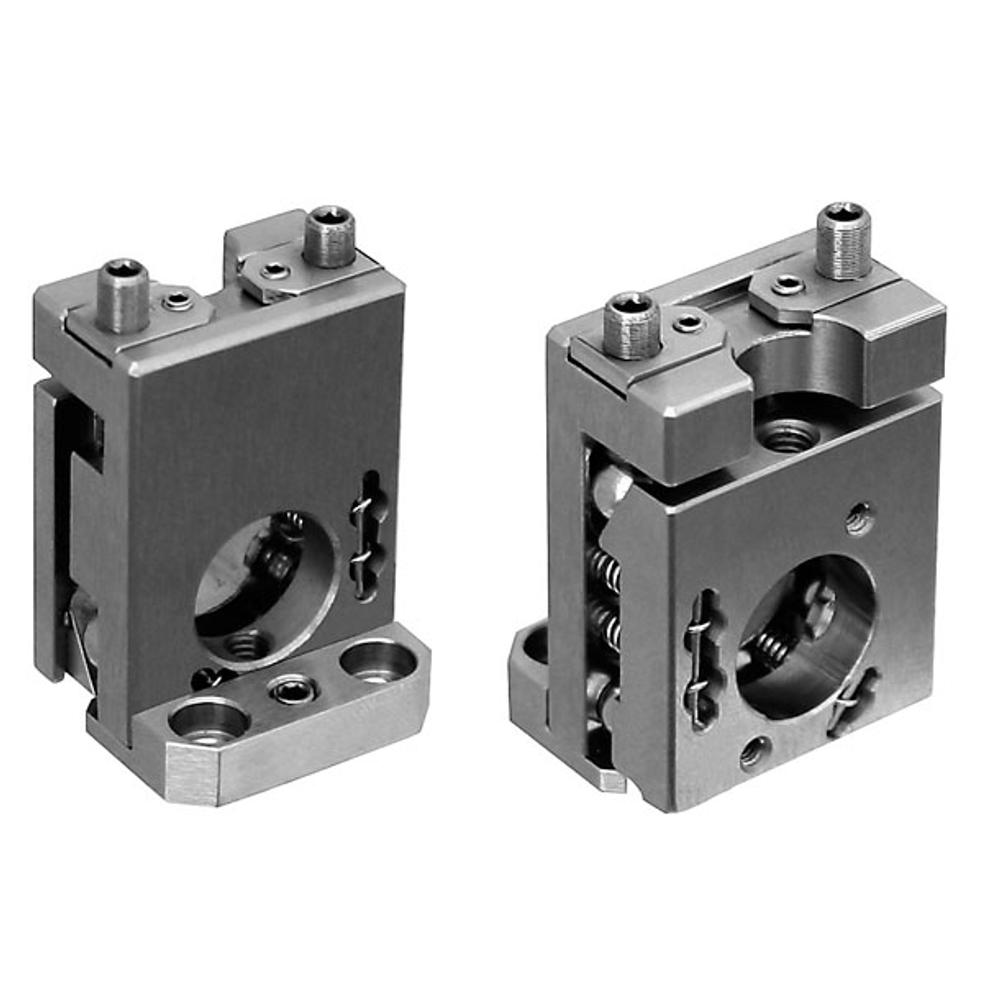

Kinematic Vertical Drive Optical Mount 840-0230
• For Ø12.7 mm (0.5 inch) optics • Stainless steel • Compact/robust design • Lockable adjustment screws • Fine screws pitch 0.25 mm (101.6 TPI) • Tilt/tip range ±2.5° • Sensitivity 2 arcsec • Vacuum compatible version… Read more →
Listed in
Order
Description
- For Ø12.7 mm (0.5 inch) optics
- Stainless steel
- Compact/robust design
- Lockable adjustment screws
- Fine screws pitch 0.25 mm (101.6 TPI)
- Tilt/tip range ±2.5°
- Sensitivity 2 arcsec
- Vacuum compatible version is available on request
Kinematic Vertical Drive Optical Mount 840-0230 is designed to minimize mount-induced wavefront distortions. In conventional mounts, the mirror is tightened by a side screw. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism.
Uniformly distributed axial forces eliminate wavefront distortion.
This mount is ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.
A fixing screw secures the optics against contact lines, which make 2 contact points. To prevent damage to the optics, the tip of the fixing screw is made of plastic.
