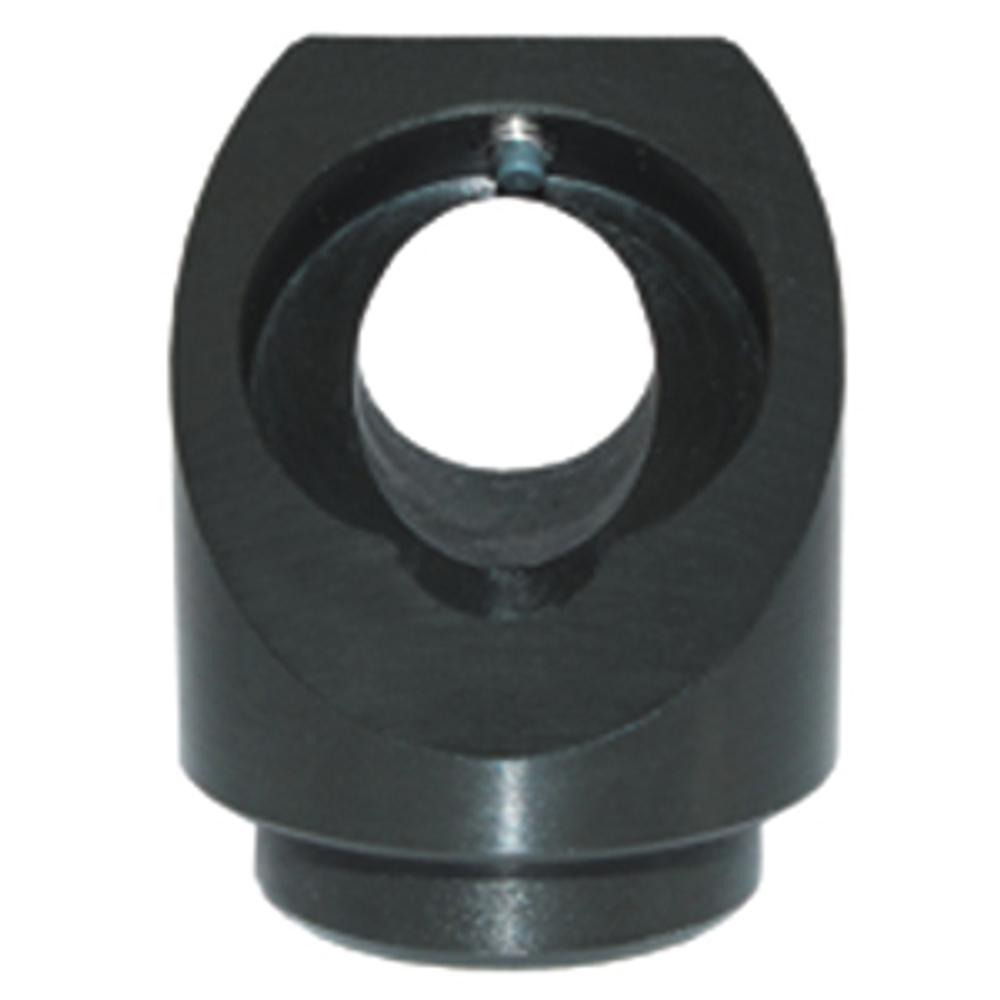

Adapter for Beamsplitter at 45 deg 840-0116

• Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. Adapter easily accommodates… Read more →

From $36 Configure & order →

Configure & order — pick a catalog variant or configure your own

Product

Mount Material and Coating Any

3 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Mounted Optics Diameter	Mount Material and Coating	Mounting Thread
840-0116	Optics Adapter	22.4 mm - 25.5 mm	Black Anodised Aluminum	M6	Out of stock $36
840-0116A	Optics Adapter	22.4 mm - 25.5 mm	Black Anodised Aluminum	M6	Out of stock $38
840-0116S	Optics Adapter	22.4 mm - 25.5 mm	Black Oxidized Steel	M6	6 in stock Ships in: 2–5 calendar days $51

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type	Optics Adapter
Mounted Optics Diameter	22.4 mm - 25.5 mm
Mounting Thread	M6
Width	33 mm
Height	41.2 mm

Description

Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg

Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. Adapter easily accommodates any optical mount designed for 1'' optics or can be attached to any mount using baseplate.

For fine adjustment adapter can be mounted into Kinematic Mirror Mount 840-0020. Such combination provides +-6° range of orthogonal adjustments with 8 arc-seconds resolution.

Optics with diameter 22.4-25.5 mm and thickness 5-8 mm can be fixed with plastic screw. Optics of other thickness can be cemented into adapter.

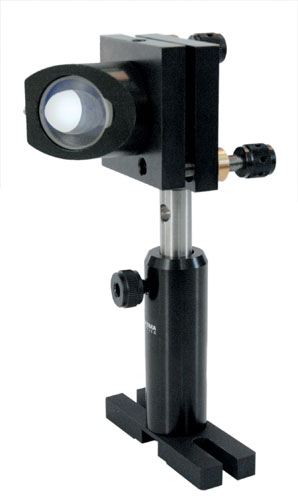

Mouting Option:

Movable base 820-0080
Rod Holder 820-0050-04
Standard Rod 820-0010-02

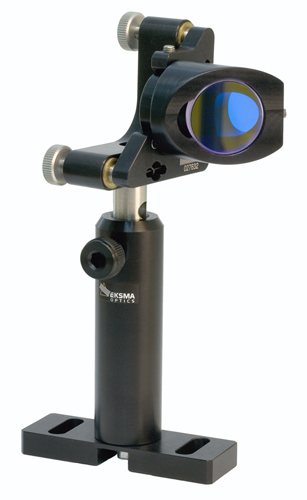

Kinematic mirror and beamsplitter mount 840-0020 and adapter for beamsplitter at 45 deg 840-0116
