Femtoline Laser Harmonic Separators

Femtoline Laser Harmonic Separators

• Offered on Ø 0.5 or 1 inch UVFS substrates with surface flatness λ/10 Harmonic separators are dichroic beamsplitters that reflect one wavelength and transmit the other. Reflectance is better than 99,5% for the… Read more →

From $186 Configure & order →

Volume discount

  • 5–9 units −10%
  • 10+ units −15%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.7 mm - 50.8 mm · 3 values Any mm
mm
Material Any

Surface 1, Wavelength 1

Wavelength 257 nm - 1030 nm · 7 values Any nm
nm
Reflectivity, % 99 % - 100 % · 2 values Any %
%
AOI (angle of incidence) Any deg;min;sec
deg;min;sec
47 catalog variants — refine the spec to narrow it down.
SKU Shape Type Diameter Material Surface Shape Coating Wavelength Reflectivity, % AOI (angle of incidence) Polarization
041-0840 Round 12.7 mm UVFS Plano HR 800 nm - 800 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
8 in stock Ships in: 2–5 calendar days
$194
041-0845 Round 12.7 mm UVFS Plano HR 800 nm - 800 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$194
041-2405 Round 12.7 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
11 in stock Ships in: 2–5 calendar days
$201
041-2485 Round 12.7 mm UVFS Plano HR 257 nm - 275 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$228
041-2805 Round 12.7 mm FS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
13 in stock Ships in: 2–5 calendar days
$201
041-3135 Round 12.7 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$186
041-3530 Round 12.7 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$214
041-3535 Round 12.7 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$214
041-4800 Round 12.7 mm FS Plano HR 380 nm - 420 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
Out of stock Ships in: 58–61 calendar days
$201
041-4805 Round 12.7 mm UVFS Plano HR 390 nm - 410 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
9 in stock Ships in: 2–5 calendar days
$201
041-5130 Round 12.7 mm FS Plano HR 500 nm - 530 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
10 in stock Ships in: 2–5 calendar days
$186
041-5135 Round 12.7 mm UVFS Plano HR 500 nm - 530 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
10 in stock Ships in: 2–5 calendar days
$186
041-6510 Round 12.7 mm FS Plano HR 1030 nm - 1030 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
2 in stock Ships in: 2–5 calendar days
$194
041-6515 Round 12.7 mm UVFS Plano HR 1030 nm - 1030 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
12 in stock Ships in: 2–5 calendar days
$194
042-0840 Round 25.4 mm UVFS Plano HR 800 nm - 800 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
Out of stock Ships in: 62–65 calendar days
$236
042-0845 Round 25.4 mm UVFS Plano HR 800 nm - 800 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$236
042-2400 Round 25.4 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
Out of stock Ships in: 62–65 calendar days
$242
042-2405 Round 25.4 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$242
042-2480 Round 25.4 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
13 in stock Ships in: 2–5 calendar days
$269
042-2485 Round 25.4 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
17 in stock Ships in: 2–5 calendar days
$269
042-2800 Round 25.4 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
Out of stock Ships in: 62–65 calendar days
$242
042-2805 Round 25.4 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$242
042-3135 Round 25.4 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$228
042-3450 Round 25.4 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
6 in stock Ships in: 2–5 calendar days
$228
042-3455 Round 25.4 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
14 in stock Ships in: 2–5 calendar days
$228
042-3530 Round 25.4 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$256
042-3535 Round 25.4 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
10 in stock Ships in: 2–5 calendar days
$256
042-4800 Round 25.4 mm UVFS Plano HR 390 nm - 410 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
15 in stock Ships in: 2–5 calendar days
$242
042-4805 Round 25.4 mm UVFS Plano HR 390 nm - 410 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
29 in stock Ships in: 2–5 calendar days
$242
042-5130 Round 25.4 mm UVFS Plano HR 500 nm - 530 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$228
042-5135 Round 25.4 mm UVFS Plano HR 500 nm - 530 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
12 in stock Ships in: 2–5 calendar days
$228
042-6510 Round 25.4 mm UVFS Plano HR 1030 nm - 1030 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
13 in stock Ships in: 2–5 calendar days
$236
042-6515 Round 25.4 mm UVFS Plano HR 1030 nm - 1030 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
10 in stock Ships in: 2–5 calendar days
$236
045-0840 Round 50.8 mm UVFS Plano HR 800 nm - 800 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
1 in stock Ships in: 2–5 calendar days
$352
045-0845 Round 50.8 mm UVFS Plano HR 800 nm - 800 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$352
045-2405 Round 50.8 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$366
045-2480 Round 50.8 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
3 in stock Ships in: 2–5 calendar days
$407
045-2485 Round 50.8 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$407
045-2805 Round 50.8 mm UVFS Plano HR 257 nm - 275 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$366
045-3135 Round 50.8 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$339
045-3535 Round 50.8 mm UVFS Plano HR 333 nm - 353 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
2 in stock Ships in: 2–5 calendar days
$380
045-4800 Round 50.8 mm UVFS Plano HR 390 nm - 410 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
1 in stock Ships in: 2–5 calendar days
$366
045-4805 Round 50.8 mm UVFS Plano HR 390 nm - 410 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$366
045-5130 Round 50.8 mm UVFS Plano HR 500 nm - 530 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$339
045-5135 Round 50.8 mm UVFS Plano HR 500 nm - 530 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
18 in stock Ships in: 2–5 calendar days
$339
045-6510 Round 50.8 mm UVFS Plano HR 1030 nm - 1030 nm 99.5 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec —
Out of stock Ships in: 62–65 calendar days
$352
045-6515 Round 50.8 mm UVFS Plano HR 1030 nm - 1030 nm 99.5 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$352

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter Upper Tolerance 0 mm
Diameter Lower Tolerance -0.12 mm
Material Type FS
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 0 min 30 sec

Surface 1

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm 0(0.2)
Clear Aperture, % 85 % - 100 %

Surface 1, Wavelength 1

Coating HR

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm 0(0.2)
Clear Aperture, % 85 % - 100 %

Surface 2, Wavelength 1

Coating AR

Description

  • Offered on Ø 0.5 or 1 inch UVFS substrates with surface flatness λ/10

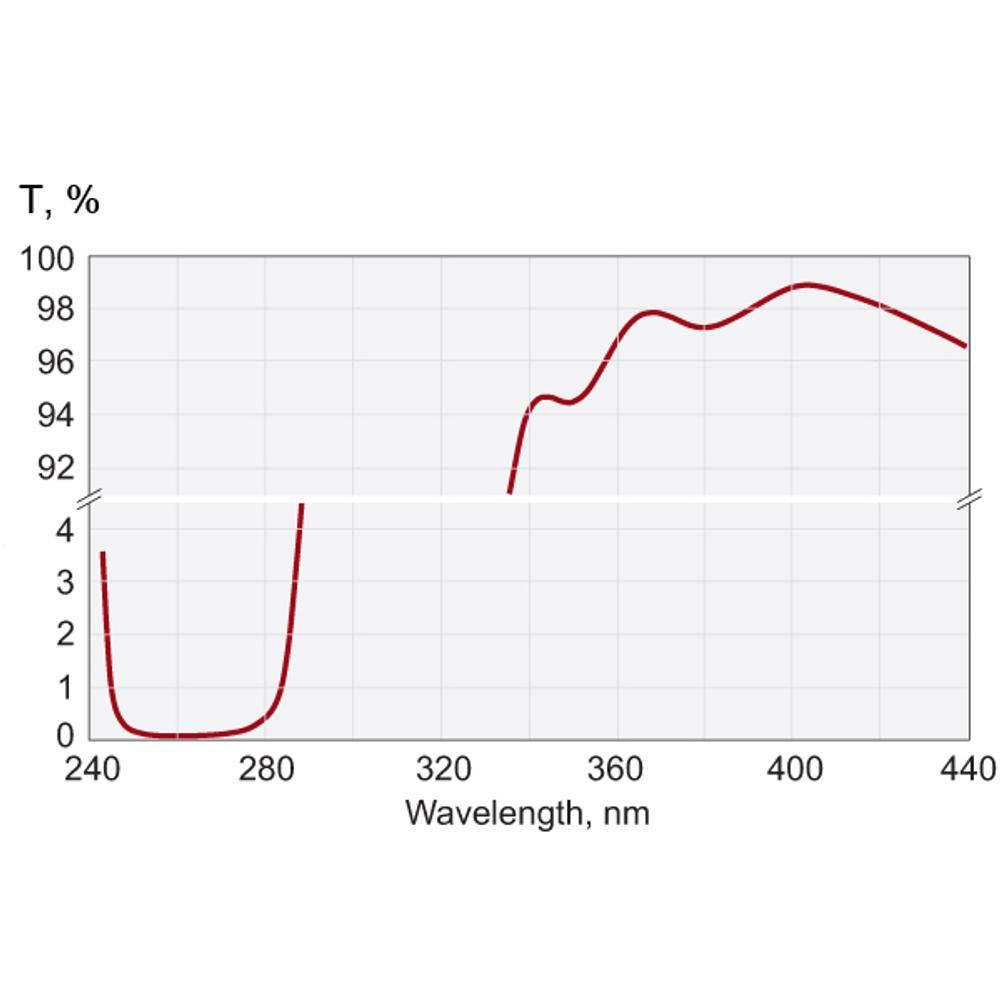

Harmonic separators are dichroic beamsplitters that reflect one wavelength and transmit the other. Reflectance is better than 99,5% for the wavelength of interest and transmittance is at least 90% for the rejected wavelengths. The rear surface of harmonic separators is antireflection coated. If possible use shorter wavelength for reflection and longer wavelengths for transmission in order to have higher reflection/transmission coeficients.

Downloads

PDF
EKSMA_Optics_Femtoline_Laser_Harmonic_Separators.pdf PDF · 93.1 KB
