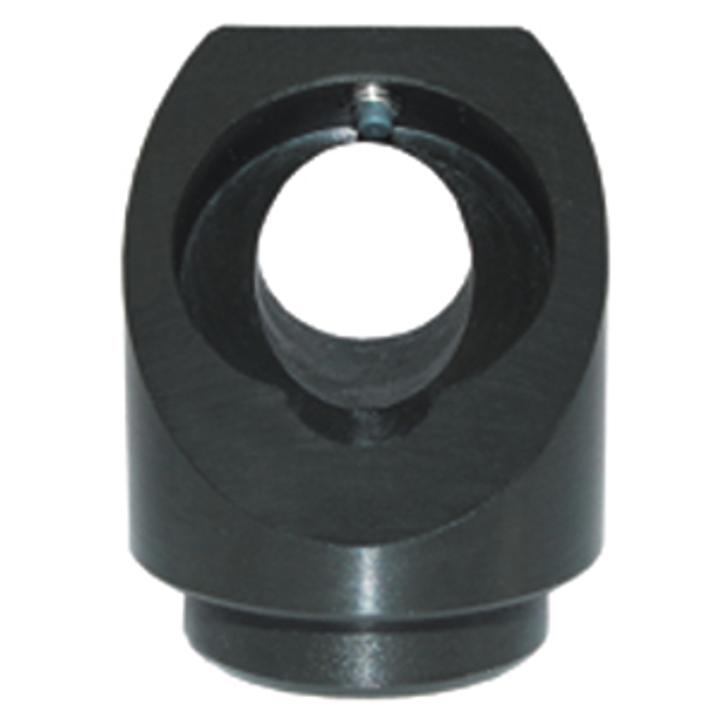

Adapter for Beamsplitter at 45 deg 840-0116 SKU: 840-0116
• Suitable for dichroic mirrors and beamsplitters operating at AOI 45 deg Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. Adapter easily accommodates any optical mount designed for 1'' optics or can be attached…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Optics Adapter |
| Mounted Optics Diameter | 22.4 mm - 25.5 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M6 |
| Mount Clear Aperture | 15 mm |
| Width | 33 mm |
| Height | 41.2 mm |
Variant files
Technical drawings, models and data files for SKU 840-0116.
Product brochures
Shared documentation for the complete product family.
