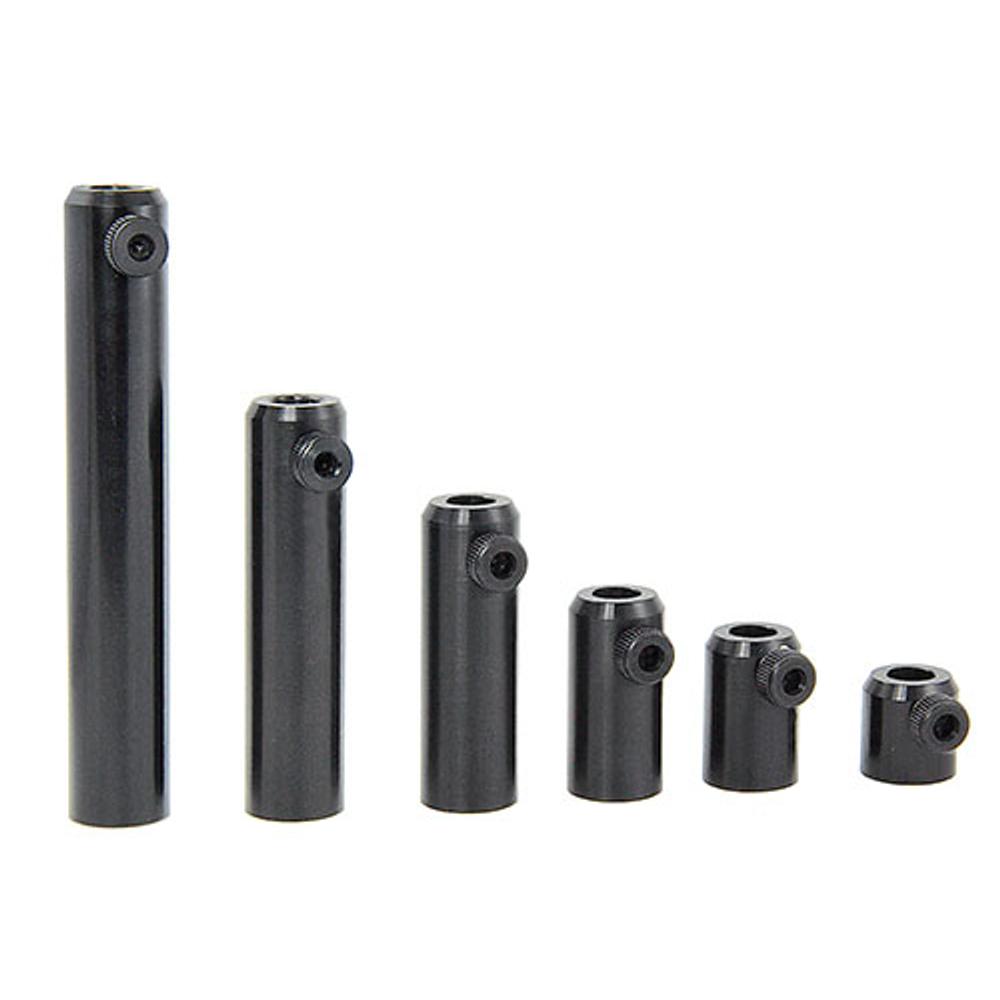

Rod Holders 820-0050

The model 820-0050 rod holders provide convenient and reliable model 820-0010 rod mounting and positioning at fixed height. To eliminate rod wobble, the inside diameter of rod holders is double-bored, providing two… Read more →

From $14 Configure & order →

Listed in

Optomechanics › Mounting Systems › Rods and Rod Holders

Configure & order — pick a catalog variant or configure your own

Height A, mm Any

Catalog band: 25.4–150.0 mm

Manufacturable: 25.4–150.0 mm

25.4 mm 150.0 mm

or mm

7 catalog variants — refine the spec to narrow it down.

SKU	Height A, mm · Group
820-0050-00	25.4 mm·Standard Rod Holders	24 in stock Ships in: 2–5 calendar days $14
820-0050-01	38.1 mm·Standard Rod Holders	11 in stock Ships in: 2–5 calendar days $16
820-0050-02	50 mm·Standard Rod Holders	Out of stock $16
820-0050-03	75 mm·Standard Rod Holders	12 in stock Ships in: 2–5 calendar days $18
820-0050-04	80 mm·Standard Rod Holders	37 in stock Ships in: 2–5 calendar days $18
820-0050-06	100 mm·Standard Rod Holders	7 in stock Ships in: 2–5 calendar days $19
820-0050-08	150 mm·Standard Rod Holders	4 in stock Ships in: 2–5 calendar days $21

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a quote request — sales will confirm price and lead time within 1 business day.

Description

The model 820-0050 rod holders provide convenient and reliable model 820-0010 rod mounting and positioning at fixed height.

To eliminate rod wobble, the inside diameter of rod holders is double-bored, providing two full-length contacts in the holder wall to support the rod along its entire length.

Model 820-0050 holders can be mounted directly to a table by model 820-0260 screw, as well as on bases, fixed by M6 bolts.

Finish: black anodized aliuminium.
