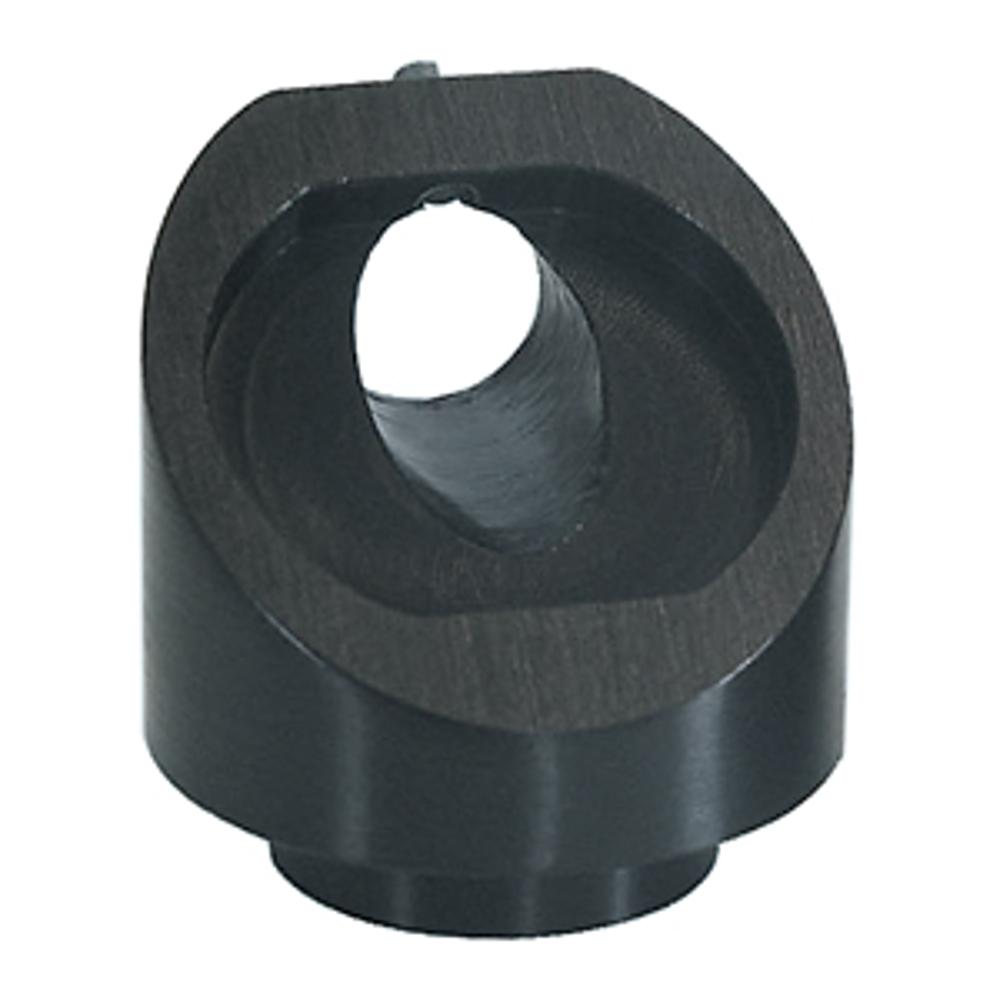

Adapter for Rectangular Polarizer at 56 deg 840-0118

• Suitable for rectangular thin film laser polarizers at 56 deg. Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. The Adapter easily accommodates any… Read more →

From $41 Configure & order →

Order

SKU	Product Type	Mounted Optics Diameter	Mount Material and Coating	Mounting Thread
840-0118	Optics Adapter	25 mm - 30 mm	Black Anodised Aluminum	M6	19 in stock Ships in: 2–5 calendar days $41
840-0118A	Optics Adapter	25 mm - 30 mm	Black Anodised Aluminum	M6	9 in stock Ships in: 2–5 calendar days $42

Specifications

Product Type	Optics Adapter
Mounted Optics Diameter	25 mm - 30 mm
Mount Material and Coating	Black Anodised Aluminum
Mounting Thread	M6
Width	40 mm

Description

Suitable for rectangular thin film laser polarizers at 56 deg.

Optics is firmly held by a plastic securing screw and it rests against two contact lines formed at the interface. The Adapter easily accommodates any optical mount designed for 1'' optics or can be attached to any mount using a baseplate.

For fine adjustment adapter can be mounted into Kinematic Mirror Mount 840-0020. Such combination provides +-6° range of orthogonal adjustments with 8 arc-seconds resolution.

Optics with width 5.0-15 mm and length 25.0-30 and thickness 2-6 mm can be fixed with a plastic screw. Optics of other thickness can be cemented into adapter.

Finish: black anodized aliuminium.
