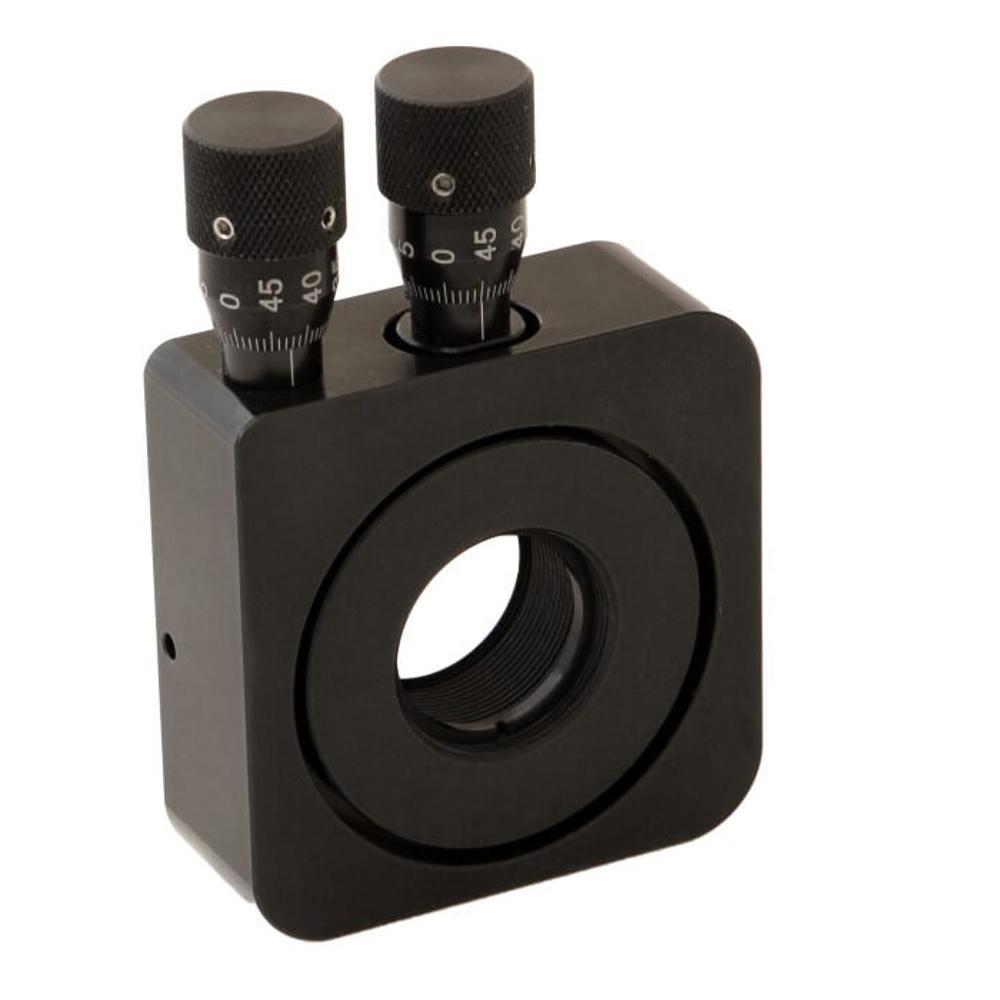

Gimbal Mount 840-0096
This mount is designed so that two intersecting axes of rotation are orthogonal and fixed in space. Such design allows independent adjustment about both axes without translation of the center of the rotated component. … Read more →
Order
| SKU | Product Type | Mounted Optics Diameter | Mounting Thread | |
|---|---|---|---|---|
| 840-0096 | Gimbal Mount | 25.4 mm - 25.4 mm | M4 |
Out of stock
$297
|
Specifications
| Product Type | Gimbal Mount |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Mounting Thread | M4 |
| Angular Tilt Range | 5 Deg |
| Number of Axes | 2 |
| Mount Clear Aperture | 23 mm |
| Width | 64 mm |
| Length | 20 mm |
| Height | 93 mm |
| Screw Pitch | M6×0.25 |
Description
This mount is designed so that two intersecting axes of rotation are orthogonal and fixed in space. Such design allows independent adjustment about both axes without translation of the center of the rotated component.
- True Gimbal design
- Adjustment knobs are with engraved scale
- ±2.5° angular range
- Hardened steel drive for stability
- Lightweight aluminium body
Two plastic padding rings and a retaining ring M27×1 to fix the optics are included. A tightening key for the retaining ring is available on request.
