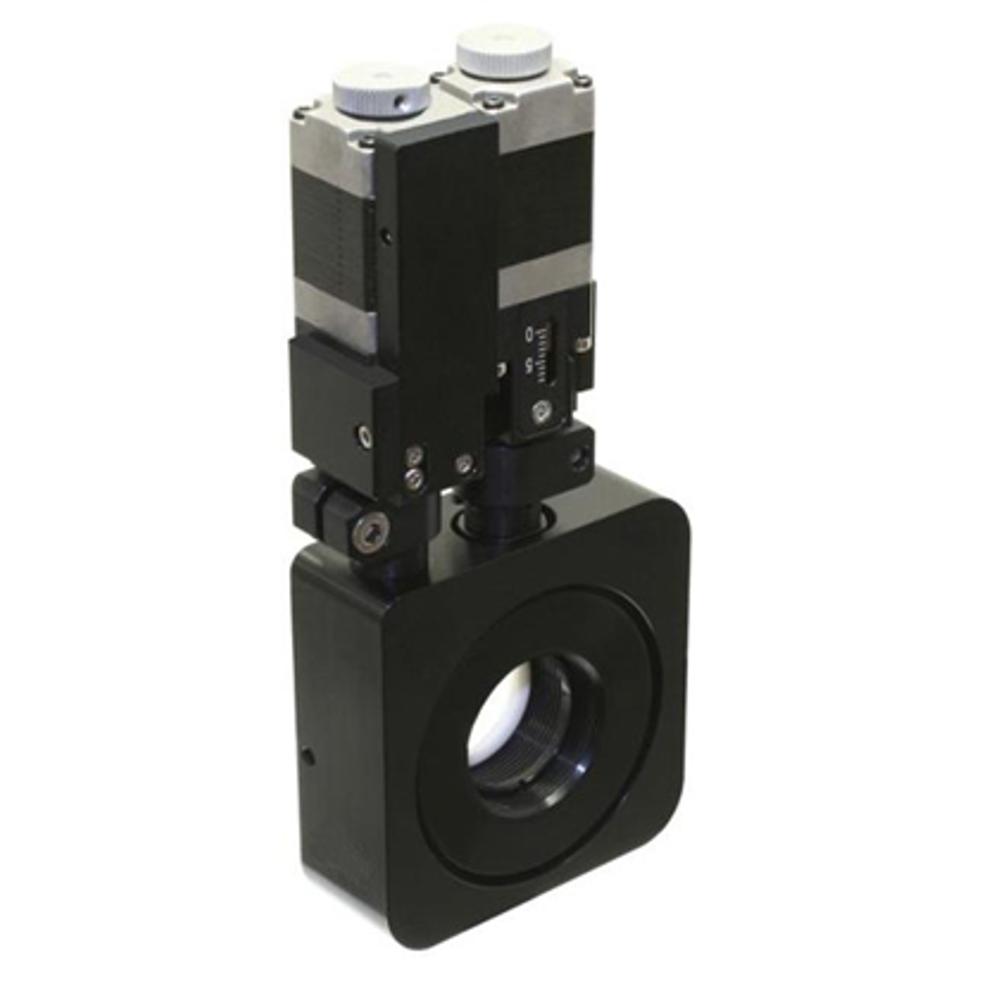

Motorized Gimbal Mount 940-0096
• Angular range ±2,5° • Resolution 0,156 μm • Two Compact Motorized Actuators 970-0060 are installed • Optics diameter is 25,4 mm • Clear aperture - 23 mm • Vacuum version 940-0096V is available on request
Order
| SKU | Product Type | Angular Tilt Range | Mount Clear Aperture | Mounted Optics Diameter | Number of Axes | |
|---|---|---|---|---|---|---|
| 940-0096 | Motorized Optical Positioner, 2-screws | 5 Deg | 23 mm | 25.4 mm - 25.4 mm | 2 |
Out of stock
$1,017
|
Specifications
| Product Type | Motorized Optical Positioner, 2-screws |
| Vacuum Compatibility | False |
| Angular Tilt Range | 5 Deg |
| Mount Clear Aperture | 23 mm |
| Motor Type | Stepper motor 20 |
| Motor Connector | HDB15 |
| Weight | 0.7 kg |
| Mounting Thread | M4 |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Width | 64 mm |
| Length | 30.6 mm |
| Height | 142 mm |
| Number of Axes | 2 |
Description
- Angular range ±2,5°
- Resolution 0,156 μm
- Two Compact Motorized Actuators 970-0060 are installed
- Optics diameter is 25,4 mm
- Clear aperture - 23 mm
- Vacuum version 940-0096V is available on request
