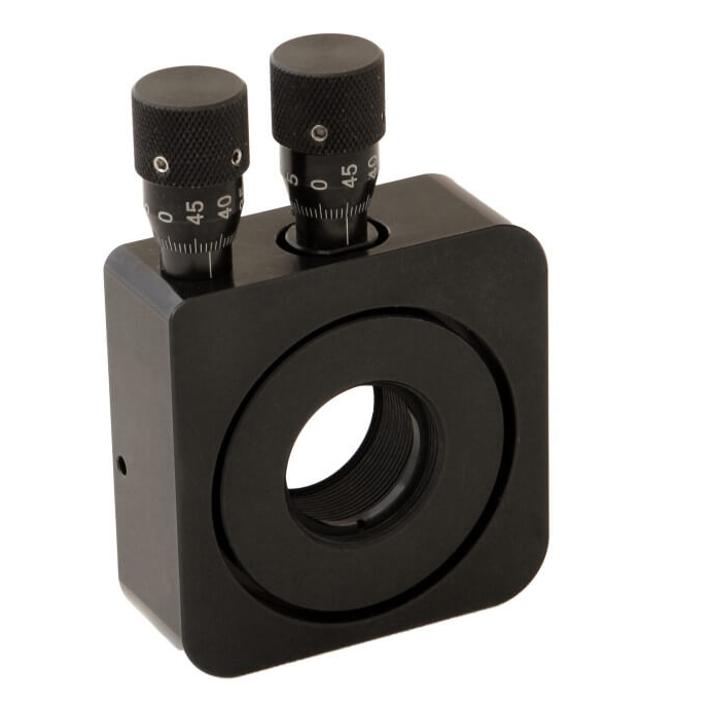

Gimbal Mount 840-0096 SKU: 840-0096
This mount is designed so that two intersecting axes of rotation are orthogonal and fixed in space. Such design allows independent adjustment about both axes without translation of the center of the rotated component. • True Gimbal design • Adjustment knobs are with engraved…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Gimbal Mount |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Mounting Thread | M4 |
| Angular Tilt Range | 5 Deg |
| Number of Axes | 2 |
| Mount Clear Aperture | 23 mm |
| Width | 64 mm |
| Length | 20 mm |
| Height | 93 mm |
| Screw Pitch | M6×0.25 |
