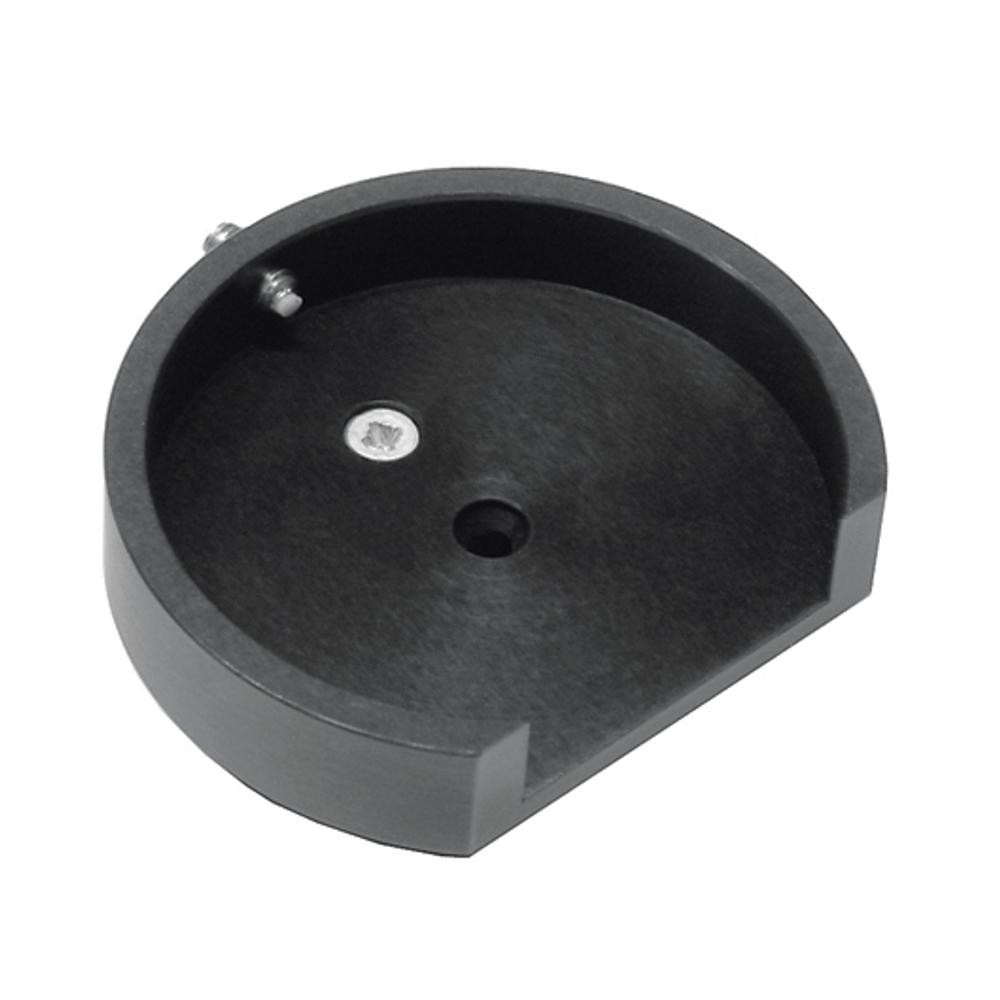

Mirror Adapter 840-0110-A3
Connecting cone facilitates adjustmenrt of the adapter. The cut-off side clears the edge of the optics for working with a beam very closely situated to another beam. Optics is firmly clutched by a stainless steel… Read more →
Order
| SKU | Product Type | Mounted Optics Diameter | |
|---|---|---|---|
| 840-0110-A3 | Optics Adapter | 0 mm - 50.8 mm |
Out of stock
$23
|
Specifications
| Product Type | Optics Adapter |
| Mounted Optics Diameter | 0 mm - 50.8 mm |
| Width | 58 mm |
| Length | 12 mm |
Description
Connecting cone facilitates adjustmenrt of the adapter. The cut-off side clears the edge of the optics for working with a beam very closely situated to another beam.
Optics is firmly clutched by a stainless steel fixing screw and rests against the two contact lines formed at the cut-off side. The adapter is suitable for optical elements up to Ø50 mm (2 inch).
Note: for optics Ø20÷25.4mm adapter 840-0100-A3 is used.
