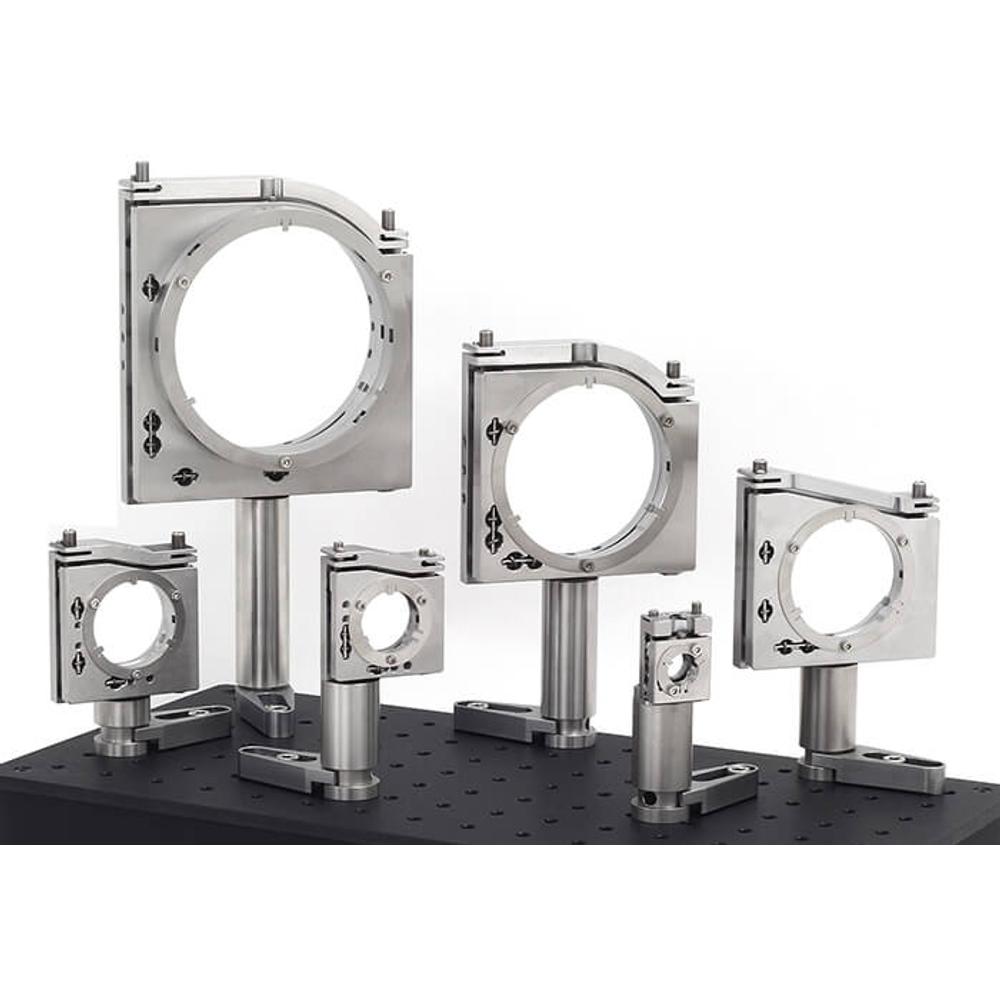

Kinematic Vertical Drive Optical Mount/Vertical Drive Optical Mount 840-0220, 840-0225
• For optics from 1" (25.4 mm) to 4" (101.6 mm) • Lockable adjustment screws • Sensitivity - 2 arcsec • Vacuum compatible version is available on request • Made of stainless steel Ultra-stable Mirror Mounts… Read more →
Listed in
Order
| SKU | Description · Group | |
|---|---|---|
| 840-0220-01 | Kinematic Mount for Ø25.4 mm (1'') optics·Kinematic Mounts with Spiral Springs |
Out of stock
$288
|
| 840-0220-02L | Kinematic Mount for Ø50.8 mm (2''), 12,7 mm thickness optics·Kinematic Mounts with Spiral Springs |
Out of stock
—
|
| 840-0220-02S | Kinematic Mount for Ø50.8 mm (2''), 8 mm thickness optics·Kinematic Mounts with Spiral Springs |
Out of stock
$481
|
| 840-0220-03L | Kinematic Mount for Ø76.2 mm (3''), 12,7 mm thickness optics·Kinematic Mounts with Spiral Springs |
Out of stock
—
|
| 840-0220-03S | Kinematic Mount for Ø76.2 mm (3''), 8 mm thickness optics·Kinematic Mounts with Spiral Springs |
Out of stock
$613
|
| 840-0220-04L | Kinematic Mount for Ø101.6 mm (4"), 20 mm thickness optics·Kinematic Mounts with Spiral Springs |
Out of stock
$752
|
| 840-0220-04S | Kinematic Mount for Ø101.6 mm (4"), 8 mm thickness optics |
Out of stock
$601
|
| 840-0220-15 | Kinematic Mount for Ø38.1 mm (1.5''), 8 mm thickness optics·Kinematic Mounts with Spiral Springs |
Out of stock
$403
|
| 840-0220-BP | Universal Base Plate·Accessories |
Out of stock
$50
|
| 840-0225-01 | Mount with L-shaped flat spring for Ø25.4 mm (1'') optics·Mounts with L-Shaped Flat Spring |
Out of stock
$290
|
| 840-0225-02L | Mount with L-shaped flat spring for Ø50.8 mm (2'') optics for 12,7mm thickness optics·Mounts with L-Shaped Flat Spring |
Out of stock
—
|
| 840-0225-02S | Mount with L-shaped flat spring for Ø50.8 mm (2'') optics for 8mm thickness optics·Mounts with L-Shaped Flat Spring |
Out of stock
$504
|
| 840-0225-15 | Mount with L-shaped flat spring for Ø38.1 mm (1.5'') optics, 8 mm thickness optics·Mounts with L-Shaped Flat Spring |
Out of stock
$426
|
Specifications
| 840-0220-01 Vertical Drive Optical Mount- DWG file | |
| 840-0220-01 Vertical Drive Optical Mount - STEP file |
Description
- For optics from 1" (25.4 mm) to 4" (101.6 mm)
- Lockable adjustment screws
- Sensitivity - 2 arcsec
- Vacuum compatible version is available on request
- Made of stainless steel
Ultra-stable Mirror Mounts 840-0220 and 840-0225 are designed to minimize mount-induced wavefront distortions. In conventional mounts, the mirror is tightened by a side screw. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism. These mounts use secure 3-points mirror suspension in between the frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion.
Vertical drive optical mounts are manufactured in two modifications: 840-0220 with spiral springs and 840-0225 with L-shaped flat spring.
These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long term stability.
