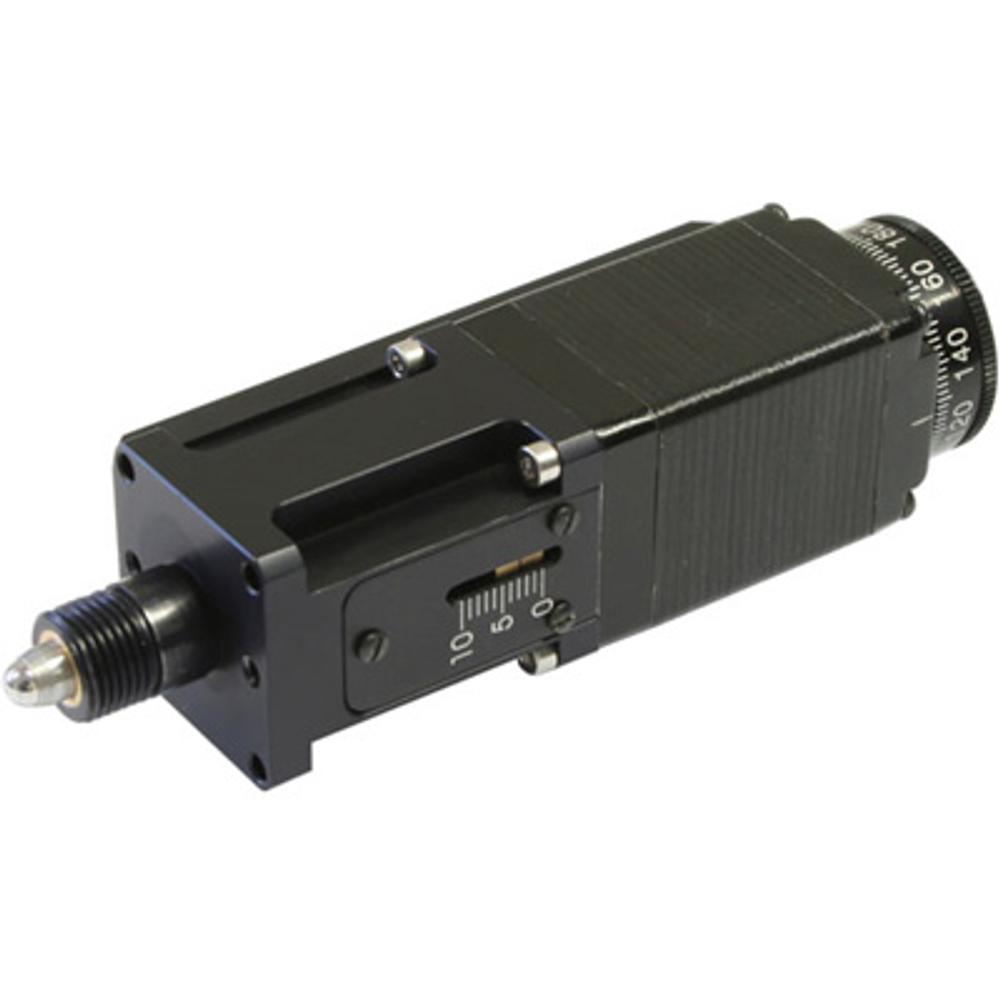

Motorized Actuator 970-0065
• Compact • Manual drive with a knob • Two limit switches • Step motor controllers (USB, RS232, Manual) are offered separately • Optional power supplies for higher voltages/speeds are available Encoders or Revolution… Read more →
Listed in
Order
| SKU | Spec | |
|---|---|---|
| 970-0065 |
Out of stock
$532
|
Specifications
| Travel range | 10 mm |
| Resolution | 1.25 μm |
| Lead screw pitch | 0.25 mm |
| Nominal force | 70 N |
| Tip shape. | Round. Flat on request. |
| Cable | Integrated, 1.2 length |
| Motor connector | HDB15(M) |
| Stepper motor | 28 |
| Weight | 0.15 kg |
| Optocoupler end limit switches | 2 |
| Switch polarity | pushed is open |
Description
- Compact
- Manual drive with a knob
- Two limit switches
- Step motor controllers (USB, RS232, Manual) are offered separately
- Optional power supplies for higher voltages/speeds are available
Encoders or Revolution sensors are available on request. More information.
