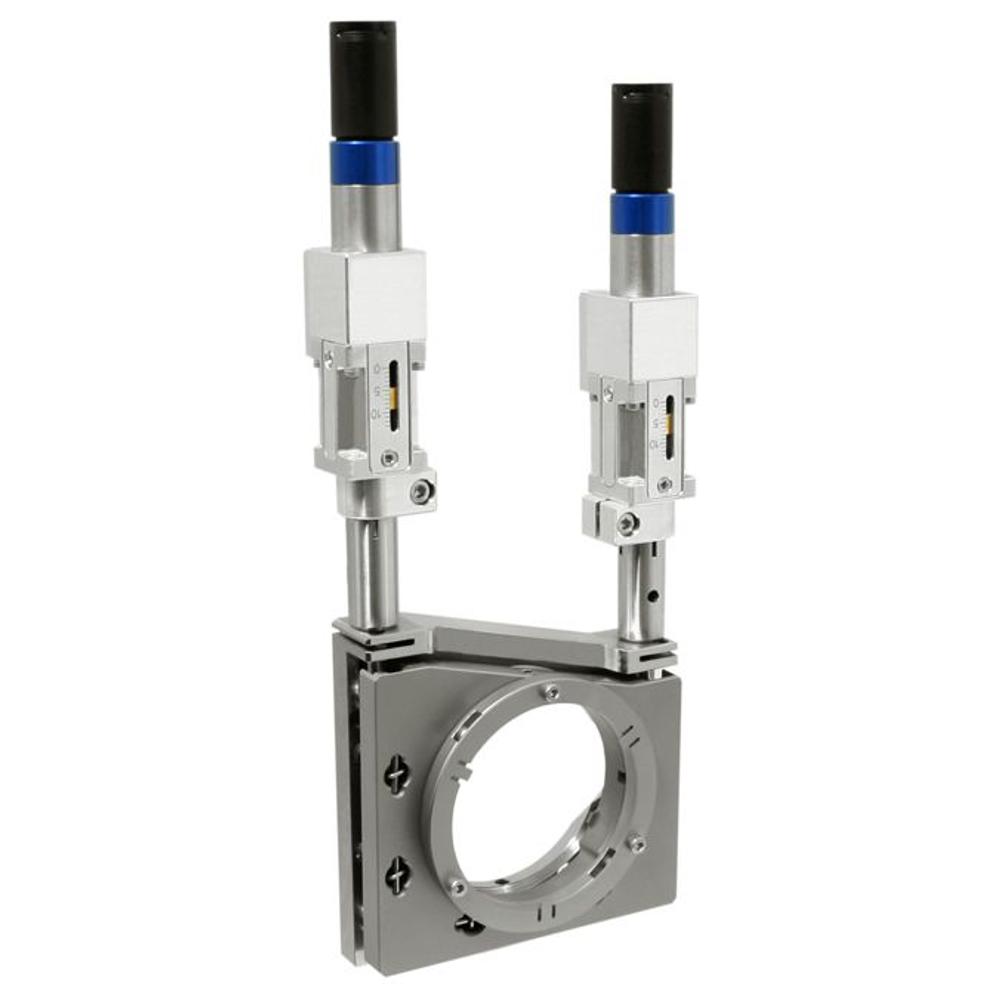

Vacuum Compatible Motorized Vertical Drive Optical Mount with DC motor 940-0080
• 1'' or 2" optics diameter • Stainless steel • Annealed front panel • Compact/robust design • Super stable • Manual version Vacuum Compatible Motorized Vertical Drive Mirror Mounts with DC motor 940-0080 are designed… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 940-0080-01 | Mount for Ø25,4 mm (1'') optics with DC motor |
Out of stock
—
|
| 940-0080-02L |
Out of stock
—
|
|
| 940-0080-02S |
Out of stock
—
|
|
| 940-0080-03L | Mount for Ø76.2 mm (3'') 12,7 mm thickness optics with DC motor |
Out of stock
—
|
| 940-0080-03S |
Out of stock
—
|
Specifications
| 940-0080-01 | 940-0080-02 | |
|---|---|---|
| Optics diameter | 25,4 mm | 50,8 mm |
| Clear aperture | 23 mm | 48 mm |
| Tilt / Tip range | ±2,5° | ±2,5° |
| Angular Resolution / by horizontal / by vertical | 1,5 arcsec / 1,75 arcsec. in the middle tilt of platform | 1 arcsec / 1,25 arcsec. in the middle tilt of platform |
| Installed actuators | 2 x 970-0067-15V | 2 x 970-0067-15V |
| Lead screw pitch | 0.25 mm | 0.25 mm |
| Cable | 1,2 m length cable included | 1,2 m length cable included |
| Motor connector | HDB15(M) | HDB15(M) |
| DC motor | DCE1841 | DCE1841 |
| Optocoupler end limit switches | 2 per actuator | 2 per actuator |
| Recommended controller | 980-1045 | 980-1045 |
Description
- 1'' or 2" optics diameter
- Stainless steel
- Annealed front panel
- Compact/robust design
- Super stable
- Manual version
Vacuum Compatible Motorized Vertical Drive Mirror Mounts with DC motor 940-0080 are designed to minimize mount-induced wavefront distortions. In conventional mounts, a side screw tightens the mirror. Radial forces acting on the mirror induces parasitic wavefront distortion, such as astigmatism.
940-0080 mirror mounts use secure 3-points mirror suspension in between frontal flat spring and the back plate. Uniformly distributed axial forces eliminate wavefront distortion. Due thermal processes on optic holding part, all metal inner tensions were removed and part makes none micro movements.
These mounts are ideal for industrial applications in different optical devices (laser cavities, optical sub-assemblies, limited space applications) because of their long-term stability.
