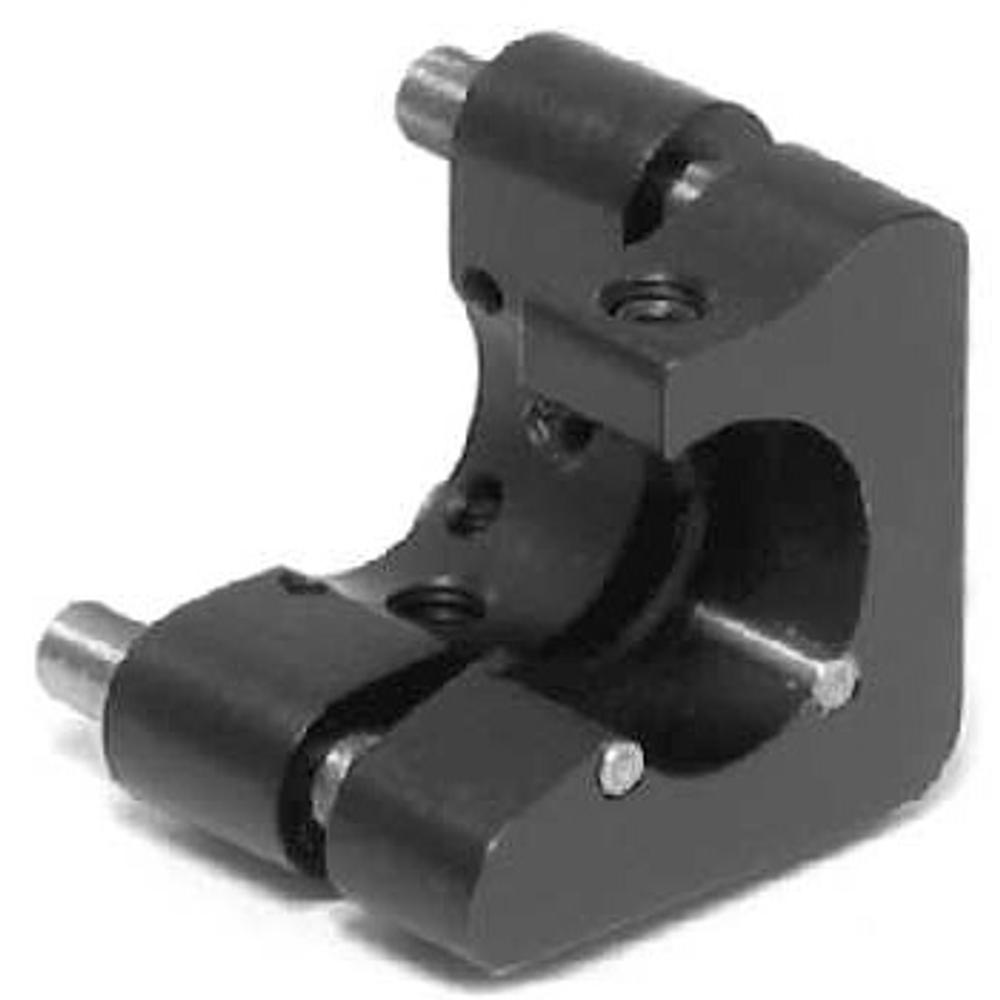

Miniature Kinematic Mirror / Beamsplitter Mount 840-0054
• Precise angular adjustments around two orthogonal axes • For Ø 12.7 mm optics (0.5 inch) • Kinematic • Clear edge design • Hex key drive • Tilt/tip range - 14° • Sensitivity of 8 arcsec • Made of black anodized… Read more →
Order
| SKU | Product Type | Mounted Optics Diameter | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|---|
| 840-0054 | Manual Optical Positioner, 3-screws | 12.7 mm | Black Anodised Aluminum | M4 |
Out of stock
$80
|
| 840-0054-02 | Manual Optical Positioner, 3-screws | 12.7 mm | Black Anodised Aluminum | M4 |
Out of stock
$80
|
Specifications
| Product Type | Manual Optical Positioner, 3-screws |
| Mounted Optics Diameter | 12.7 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M4 |
| Angular Tilt Range | 14 Deg |
| Tilt Sensitivity | 8 sec |
| Number of Axes | 2 |
| Mount Clear Aperture | 10.2 mm |
| Width | 25.4 mm |
| Length | 26 mm |
| Height | 25.4 mm |
Description
- Precise angular adjustments around two orthogonal axes
- For Ø 12.7 mm optics (0.5 inch)
- Kinematic
- Clear edge design
- Hex key drive
- Tilt/tip range - 14°
- Sensitivity of 8 arcsec
- Made of black anodized aluminium
