Lock Screws Mirror Mounts 840-0080
Miniature precision Mirror Mounts ensure precise angular adjustments of small optics about two orthogonal axes with 10 arcsec sensitivity. • miniature mounts for small optic • ±10° tilt adjustments about two… Read more →
Order
| SKU | Product Type | Mounted Optics Diameter | Mount Material and Coating | Mounting Thread | |
|---|---|---|---|---|---|
| 840-0080-01 | Manual Optical Positioner, 2-screws | 0 mm - 25 mm | Black Anodised Aluminum | M6, M4 |
Out of stock
$50
|
| 840-0080-02 | Manual Optical Positioner, 2-screws | 0 mm - 25 mm | Black Anodised Aluminum | M6, M4 |
Out of stock
$47
|
Specifications
| Product Type | Manual Optical Positioner, 2-screws |
| Mounted Optics Diameter | 0 mm - 25 mm |
| Mount Material and Coating | Black Anodised Aluminum |
| Mounting Thread | M6, M4 |
| Angular Tilt Range | 20 Deg |
| Tilt Sensitivity | 10 sec |
| Number of Axes | 2 |
| Width | 25 mm |
| Length | 35 mm |
| Screw Pitch | M6×0.5 |
Description
Miniature precision Mirror Mounts ensure precise angular adjustments of small optics about two orthogonal axes with 10 arcsec sensitivity.
- miniature mounts for small optic
- ±10° tilt adjustments about two orthogonal axes
- high degree of versatility
- made of black anodized aluminium
Mirror Mounts are provided with M4 and M6 taped holes for mounting. These black anodized aluminium mirror mounts are ideal for holding of 25 mm and smaller optic in tight spaces.

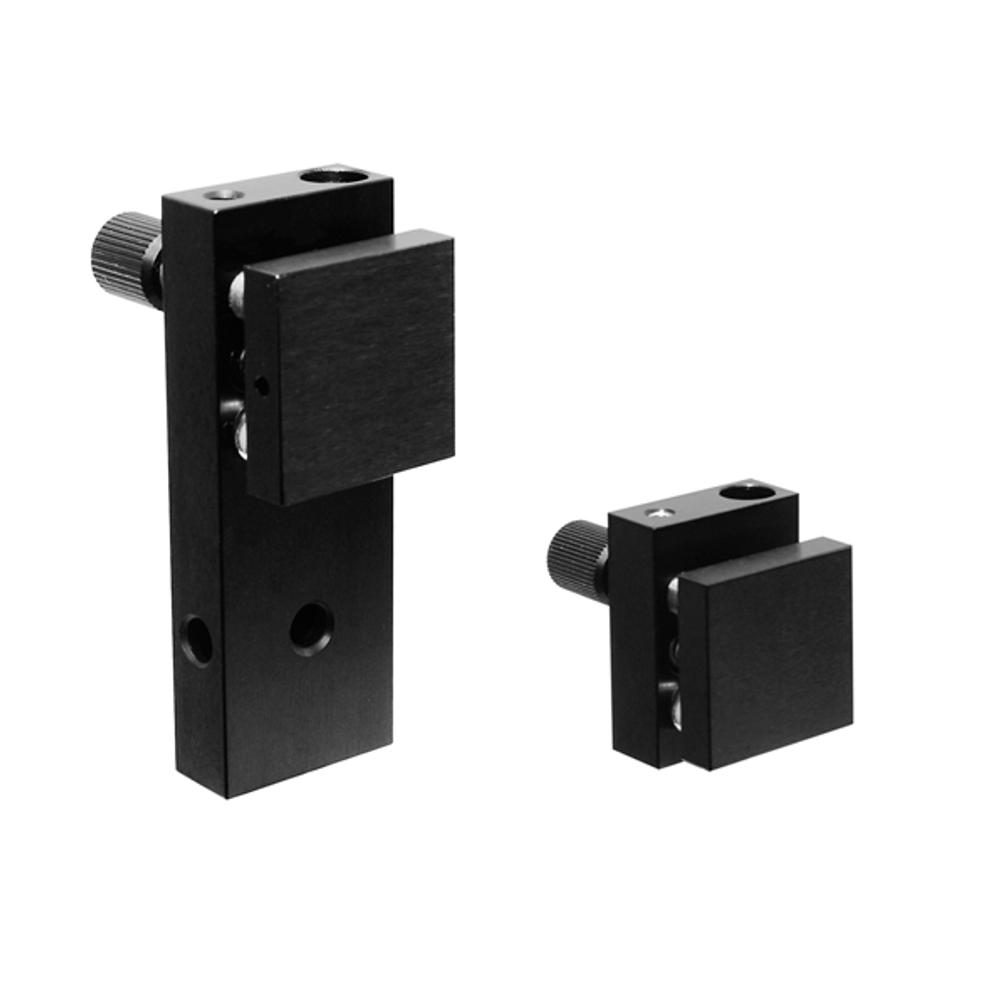

Lock Screws Mirror Mount 840-0080 is provided with extended back for convenient mounting in horizontal or vertical position. Teflon fixture of driving screws ensures stability during exploitation.
