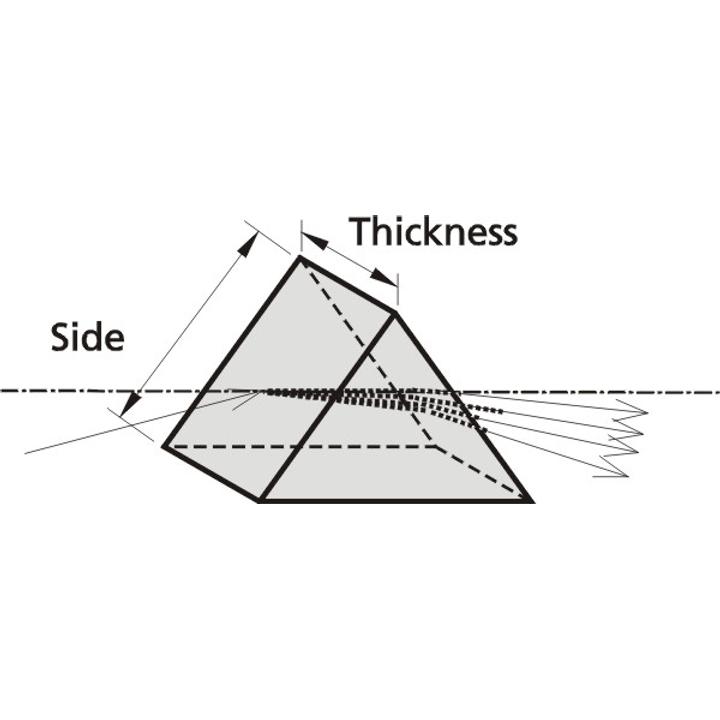

Laser Dispersing Prisms SKU: 320-8525
• Separate light by wavelength • They are made so that entrance and exit beams pass through at the Brewster Angle Like Brewster Angle Windows, Laser Dispersing Prisms can be used inside the cavity of laser operating on very low gain laser transitions, where even slight…
Variant specifications
| Product | Value |
|---|---|
| Design Wavelength Range | 800 nm - 800 nm |
| Width | 50 mm |
| Height | 25 mm |
| Thickness | 25 mm |
| Input Beam Diameter | 22 mm |
| Material Type | Glass |
| Material | SF11 |
| Apex Angle | 59 deg 0 min 0 sec |
| Angle Tolerance, +/- | 0 deg 2 min 0 sec |
| Surface 1 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.5) |
| Clear Aperture, % | 80 % - 100 % |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | Uncoated |
| Surface 2 | Value |
|---|---|
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | 0(0.5) |
| Clear Aperture, % | 80 % - 100 % |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | Uncoated |
