Non-Polarizing Cube Beamsplitters
• Two right angle prisms cemented together with a partially reflecting surface on the internal (protected) face All dielectric coatings of non-polarizing laser beamsplitters are optimized to be insensitive to… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Surface 1, Wavelength 1
| SKU | Product Type | Side A length | Material | Wavelength | Reflectivity, % | Transmission, % | |
|---|---|---|---|---|---|---|---|
| 350-0101 | Non-polarizing beamsplitter cube | 10 mm | BK7 | 532 nm - 532 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$186
|
| 350-0102 | Non-polarizing beamsplitter cube | 10 mm | BK7 | 633 nm - 633 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$186
|
| 350-0106 | Non-polarizing beamsplitter cube | 10 mm | BK7 | 1064 nm - 1064 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$186
|
| 350-0151 | Non-polarizing beamsplitter cube | 15 mm | BK7 | 532 nm - 532 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 350-0152 | Non-polarizing beamsplitter cube | 15 mm | BK7 | 633 nm - 633 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$222
|
| 350-0156 | Non-polarizing beamsplitter cube | 15 mm | BK7 | 1064 nm - 1064 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$222
|
| 350-0201 | Non-polarizing beamsplitter cube | 20 mm | BK7 | 532 nm - 532 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$246
|
| 350-0202 | Non-polarizing beamsplitter cube | 20 mm | BK7 | 633 nm - 633 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$246
|
| 350-0206 | Non-polarizing beamsplitter cube | 20 mm | BK7 | 1064 nm - 1064 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$246
|
| 350-0251 | Non-polarizing beamsplitter cube | 25 mm | BK7 | 532 nm - 532 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 62–65 calendar days
$282
|
| 350-0252 | Non-polarizing beamsplitter cube | 25 mm | BK7 | 633 nm - 633 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$282
|
| 350-0256 | Non-polarizing beamsplitter cube | 25 mm | BK7 | 1064 nm - 1064 nm | 45 % - 55 % | 45 % - 55 % |
Out of stock
Ships in: 58–61 calendar days
$282
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Non-polarizing beamsplitter cube |
| Side A length Lower Tolerance | -0.5 mm |
| Side A length upper tolerance | 0.5 mm |
| Material Type | BK7 |
| Material | BK7 |
| Cementing material or method | Cemented |
Surface 1
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 80 % - 100 % |
Surface 1, Wavelength 1
| Coating | PR |
| Reflectivity, % | 45 % - 55 % |
| Transmission, % | 45 % - 55 % |
| AOI (angle of incidence) | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec |
| Polarization | sp |
Surface 2
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 80 % - 100 % |
Surface 2, Wavelength 1
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description

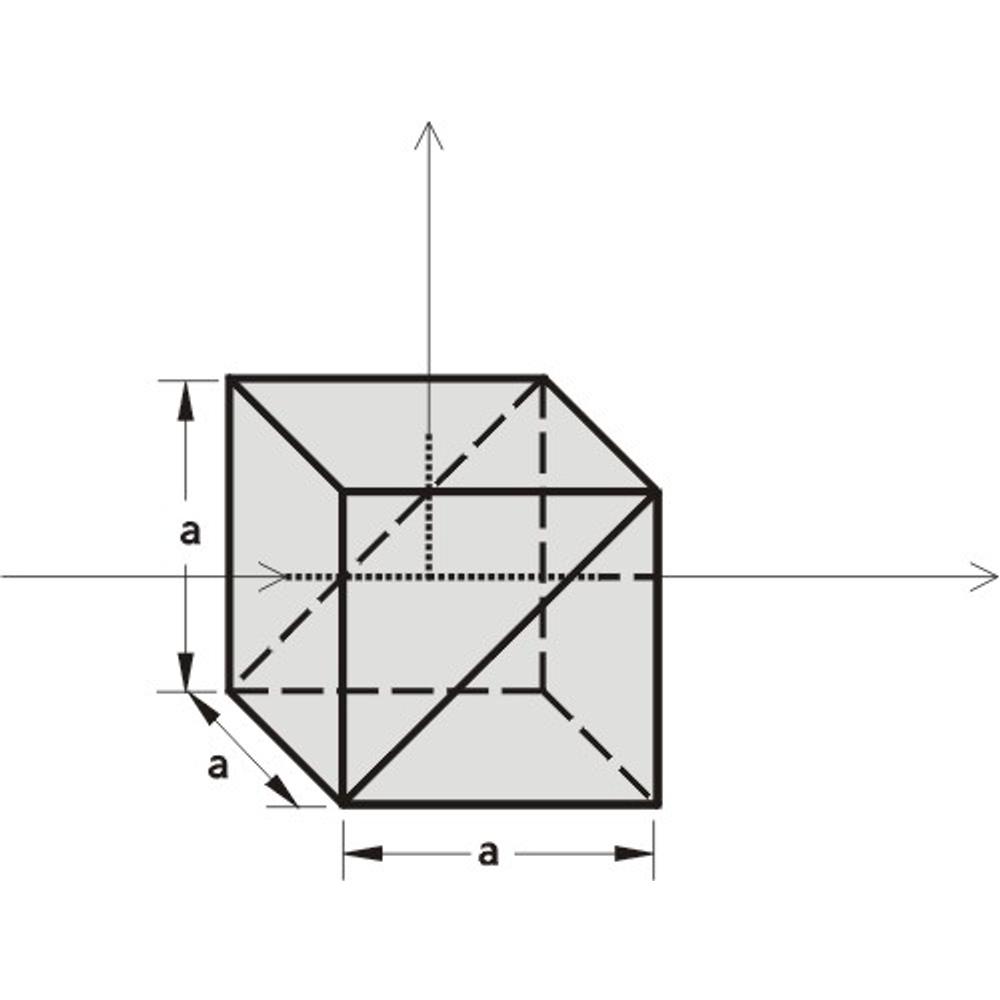

- Two right angle prisms cemented together with a partially reflecting surface on the internal (protected) face
All dielectric coatings of non-polarizing laser beamsplitters are optimized to be insensitive to polarization at designed wavelengths. The coatings hold both the s- and p-polarization components to the same ratio of reflection-to-transmission over a specific laser wavelength region.
We suggest to choose from non-polarizing cube beamsplitters for broadband 450-700 nm and 750-1100 nm ranges.
