Dual Band Laser Mirrors SKU: 051-5306
• Highly reflective mirrors (99.5% reflectivity) • Designed to work at 45° or 0° angle of incidence • Made from BK7 glass or UV grade fused silica Laser Line Mirrors are dielectric reflectors with optimised performance at stated laser wavelengths. Dual band laser mirrors…
Variant specifications
| Specification | Value |
|---|---|
| Material | BK7 |
| D | 12.7 mm |
| ET | 3 mm |
| R, % (s+p)/2 | 99.5% |
| AOI | 45° |

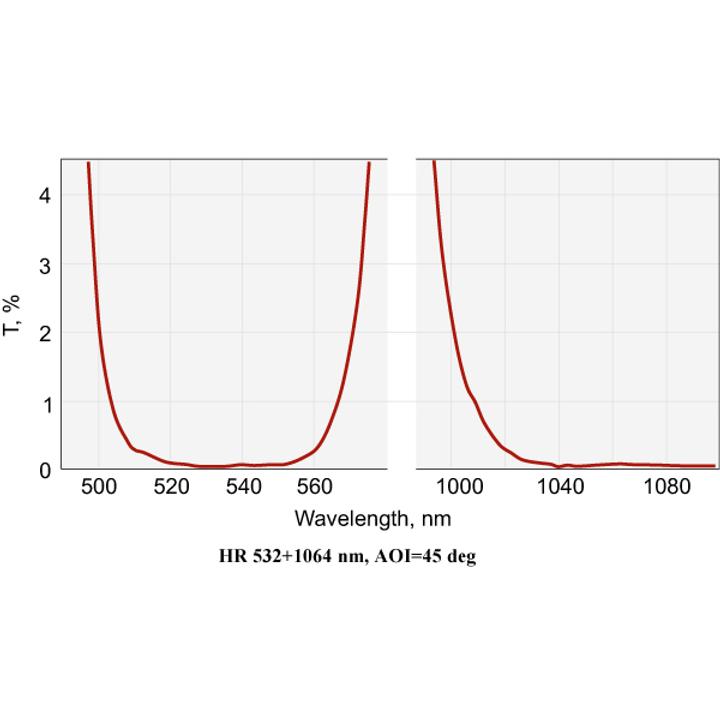

| Wavelength | 532+1064 nm |
| Application | Nd:YAG 2H+1H |
| Group | BK7; ø12.7 x 3 mm |
Shared product specifications
These specifications apply across the Dual Band Laser Mirrors product family.
| Material | BK7 grade A glass or UV grade fused silica |
| S1 Surface Flatness | λ / 10 typical at 633 nm |
| S1 Surface Quality | 20-10 scratch & dig laser quality |
| S2 Surface Quality | Commercial polish |
| Diameter Tolerance | + 0.00 mm, - 0.12 mm |
| Thickness Tolerance | ± 0.25 mm |
| Wedge | < 3 minutes |
| Chamfer | 0.3 mm at 45° typical |
| Technology | Electron beam multilayer dielectric |
| Adhesion and Durability | Per MIL-C-675A. Insoluble in lab solvents |
| Clear Aperture | Exceeds central 85% of diameter |
| Damage Threshold | BK7 dual line mirrors - 3 J / cm2, 8 nsec pulse, 1064 nm typical / UVFS dual line mirrors - 5 J / cm2, 8 nsec pulse, 1064 nm typical |
| Coated Surface Flatness | λ / 10 at 633 nm over 85% of diameter available |
| Angle of incidence | 0° or 45° |
Classification
| Coating | dielectric |
