Corner Cubes
• Deviate incident light by 180 degrees independently of an angle of incidence These prisms (corner cube) have 3 mirror surfaces making angles of 90° to each other, juxtaposed to form the corner of a cube with the… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Diameter | Material Type | Material | |
|---|---|---|---|---|
| 340-0217 | 22 mm | BK7 | BK7 |
Out of stock
Ships in: 62–65 calendar days
$144
|
| 340-0217M | 22 mm | BK7 | BK7 |
Out of stock
Ships in: 62–65 calendar days
$168
|
| 340-0219 | 25.4 mm | BK7 | BK7 |
Out of stock
Ships in: 62–65 calendar days
$174
|
| 340-0329 | 38.1 mm | BK7 | BK7 |
Out of stock
Ships in: 62–65 calendar days
$210
|
| 340-0538 | 50.8 mm | BK7 | BK7 |
3 in stock
Ships in: 2–5 calendar days
$240
|
| 340-0648 | 63.5 mm | BK7 | BK7 |
3 in stock
Ships in: 2–5 calendar days
$300
|
| 340-1217 | 22 mm | FS | UVFS |
Out of stock
Ships in: 62–65 calendar days
$198
|
| 340-1217M | 22 mm | FS | UVFS |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 340-1437M | 50 mm | FS | UVFS |
Out of stock
Ships in: 58–61 calendar days
—
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Angle Tolerance, +/- | 0 deg 0 min 5 sec |
| Transmitted Beam Deviation | 180 deg 0 min 0 sec |
Surface 1
| Surface quality, grind or polish | Polished |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, grind or polish | Polished |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Deviate incident light by 180 degrees independently of an angle of incidence

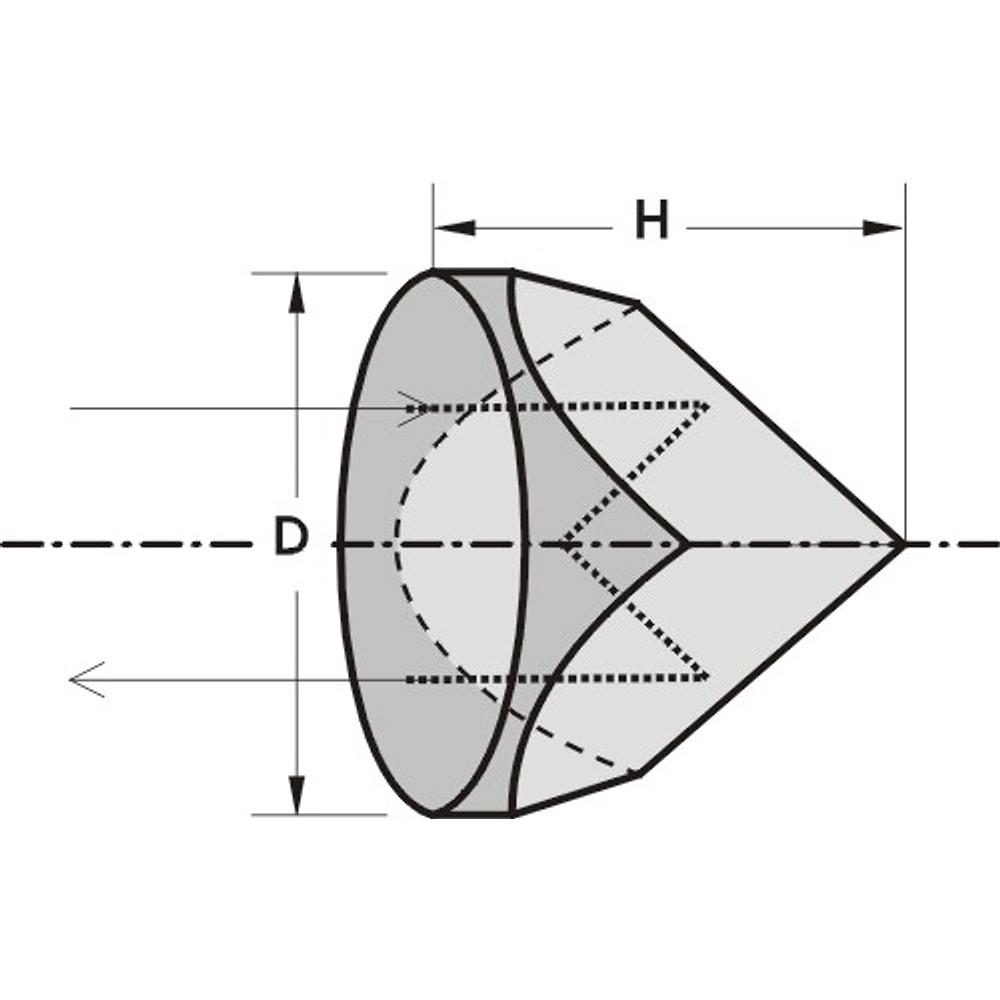

These prisms (corner cube) have 3 mirror surfaces making angles of 90° to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All beams, despite of incident direction, are reflected back to the original direction. Solid corner cube is used in high precision applications or with lasers over very long distances. These ”angle insensitive” mirrors therefore find frequent applications in situations where orientation is difficult or impossible to control and where a mirror would therefore be unsatisfactory.
