Kinematic Mirror / Beamsplitter Mounts 840-0056 SKU: 840-0056-13

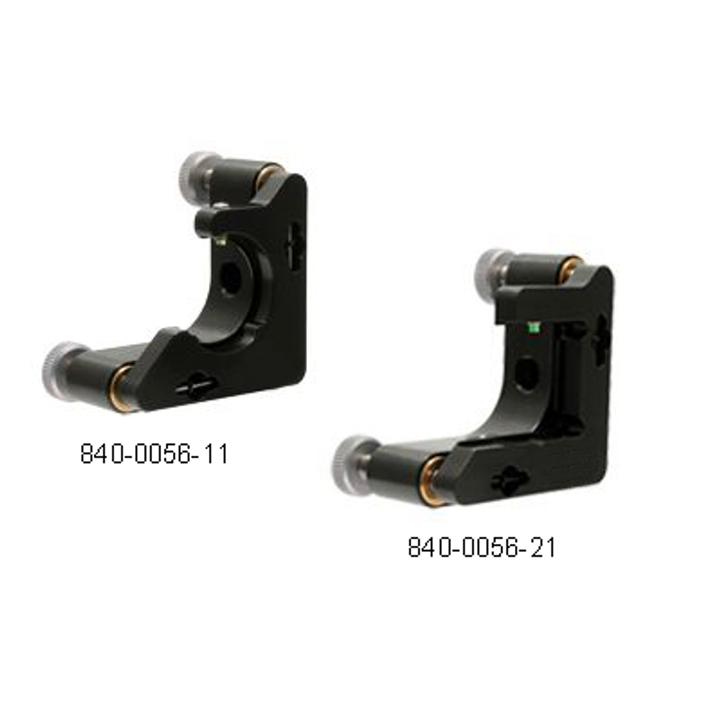

Kinematic Mirror / Beamsplitter Mounts 840-0056 are used for precise angular and linear alignment of optical elements. We provide two types of kinematic mirror/beamsplitter mounts: for round optical elements (840-0056-11; 840-0056-12; 840-0056-13) and for square optical elements…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 3-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Travel Range | 4 mm |
| Travel Sensitivity | 1 µm |
| Mounting Thread | M6 |
| Mounted Optics Diameter | 76.2 mm - 76.2 mm |
| Width | 92 mm |
| Length | 50.5 mm |
| Height | 100 mm |
| Number of Axes | 2 |
