BroadBand Laser Mirrors

BroadBand Laser Mirrors

• Broadband performance for range of most popular laser wavelengths • High reflectivity - Rₐvg> 99% for (s+p)/2 polarization • Made from UV grade Fused Silica or BK7 substrates • Designed for 45° or 0° angle of… Read more →

From $123 Configure & order →

Volume discount

  • 5–9 units −5%
  • 10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.7 mm - 50.8 mm · 3 values Any mm
mm
Material Any

Surface 1, Wavelength 1

Wavelength 220 nm - 1100 nm · 8 values Any nm
nm
AOI (angle of incidence) Any deg;min;sec
deg;min;sec
58 catalog variants — refine the spec to narrow it down.
SKU Shape Type Diameter Material Surface Shape Coating Wavelength Reflectivity, % AOI (angle of incidence) Polarization
071-3644 Round 12.7 mm BK7 Plano HR 360 nm - 440 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
14 in stock Ships in: 2–5 calendar days
$129
071-4254 Round 12.7 mm BK7 Plano HR 420 nm - 540 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$123
071-5265 Round 12.7 mm BK7 Plano HR 520 nm - 650 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$123

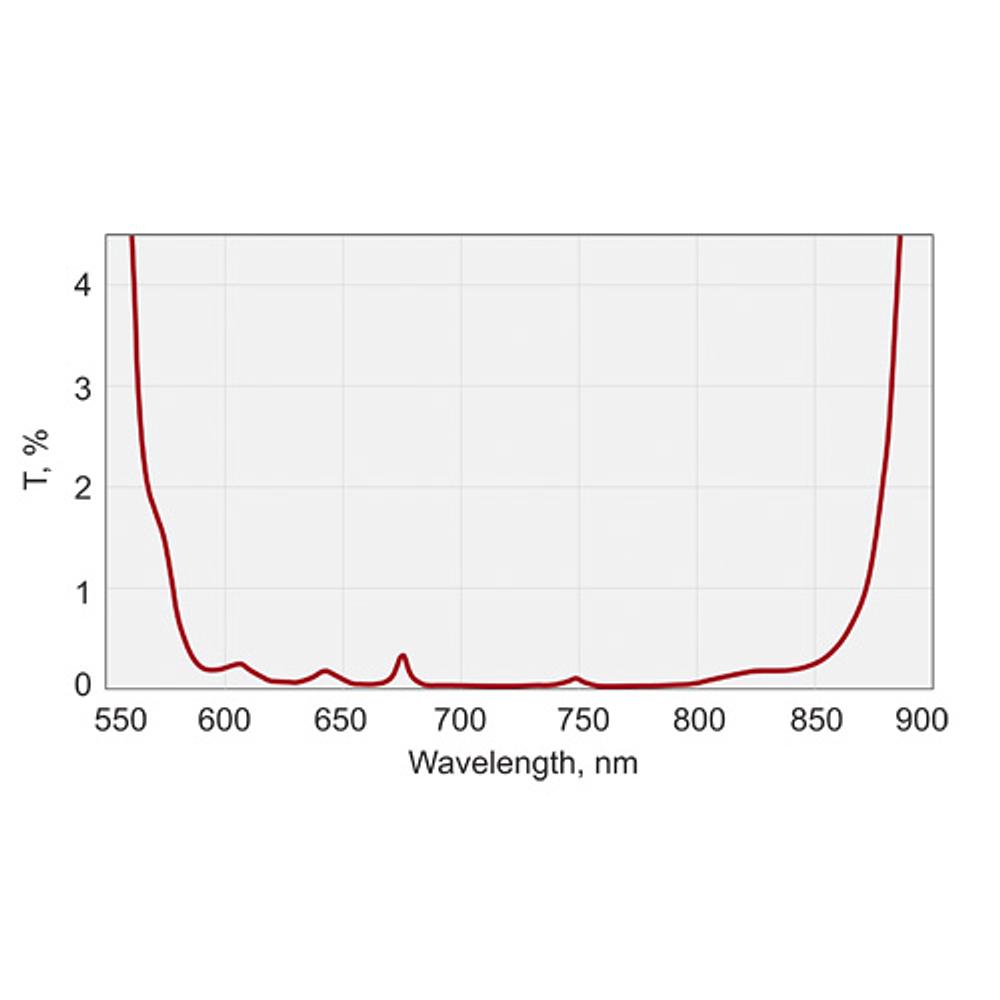

071-6085 Round 12.7 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
7 in stock Ships in: 2–5 calendar days
$123
071-6085-i0 Round 12.7 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$123
071-6085T6 Round 12.7 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$123
071-6085T6-i0 Round 12.7 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$123
071-7395 Round 12.7 mm BK7 Plano HR 730 nm - 950 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$124
071-8011 Round 12.7 mm BK7 Plano HR 800 nm - 1100 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$124
072-3644 Round 25.4 mm BK7 Plano HR 360 nm - 440 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$154
072-4254 Round 25.4 mm BK7 Plano HR 420 nm - 540 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$149
072-4254-i0 Round 25.4 mm BK7 Plano HR 420 nm - 540 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$149
072-5265 Round 25.4 mm BK7 Plano HR 520 nm - 650 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$149
072-5265-i0 Round 25.4 mm BK7 Plano HR 520 nm - 650 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$149
072-6085 Round 25.4 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$149
072-6085-i0 Round 25.4 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$149
072-7395 Round 25.4 mm BK7 Plano HR 730 nm - 950 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
10 in stock Ships in: 2–5 calendar days
$150
072-7395-i0 Round 25.4 mm BK7 Plano HR 730 nm - 950 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
18 in stock Ships in: 2–5 calendar days
$150
072-8011 Round 25.4 mm BK7 Plano HR 800 nm - 1100 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
7 in stock Ships in: 2–5 calendar days
$150
072-8011-i0 Round 25.4 mm BK7 Plano HR 800 nm - 1100 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$150
075-3644 Round 50.8 mm BK7 Plano HR 360 nm - 440 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
2 in stock Ships in: 2–5 calendar days
$218
075-4254 Round 50.8 mm BK7 Plano HR 420 nm - 540 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$209
075-5265 Round 50.8 mm BK7 Plano HR 520 nm - 650 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$209
075-6085 Round 50.8 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$209
075-6085-i0 Round 50.8 mm BK7 Plano HR 600 nm - 850 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$209
075-7395 Round 50.8 mm BK7 Plano HR 730 nm - 950 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$212
075-8011 Round 50.8 mm BK7 Plano HR 800 nm - 1100 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$212
081-2225 Round 12.7 mm UVFS Plano HR 220 nm - 250 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$174
081-2638 Round 12.7 mm UVFS Plano HR 260 nm - 380 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$195
081-3644T6 Round 12.7 mm UVFS Plano HR 360 nm - 440 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$166
081-4254T6 Round 12.7 mm UVFS Plano HR 420 nm - 540 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$159
081-7395-i0 Round 12.7 mm UVFS Plano HR 730 nm - 950 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$188
081-7395T6 Round 12.7 mm UVFS Plano HR 730 nm - 950 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$188
081-8011-i0 Round 12.7 mm UVFS Plano HR 800 nm - 1100 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$173
082-2225 Round 25.4 mm UVFS Plano HR 220 nm - 250 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$198
082-2225-i0 Round 25.4 mm UVFS Plano HR 220 nm - 250 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$198
082-2638 Round 25.4 mm UVFS Plano HR 260 nm - 380 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
35 in stock Ships in: 2–5 calendar days
$224
082-2638-i0 Round 25.4 mm UVFS Plano HR 260 nm - 380 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$224
082-3644 Round 25.4 mm UVFS Plano HR 360 nm - 440 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$201
082-3644-i0 Round 25.4 mm UVFS Plano HR 360 nm - 440 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$201
082-4254 Round 25.4 mm FS Plano HR 420 nm - 540 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
2 in stock Ships in: 2–5 calendar days
$185
082-4254-i0 Round 25.4 mm FS Plano HR 420 nm - 540 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
Out of stock Ships in: 62–65 calendar days
$185
082-5265 Round 25.4 mm FS Plano HR 520 nm - 650 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$185
082-6085 Round 25.4 mm UVFS Plano HR 600 nm - 850 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$185
082-6085-i0 Round 25.4 mm UVFS Plano HR 600 nm - 850 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
4 in stock Ships in: 2–5 calendar days
$185
082-7395 Round 25.4 mm UVFS Plano HR 730 nm - 950 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$214
082-7395-i0 Round 25.4 mm UVFS Plano HR 730 nm - 950 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$214
082-8011 Round 25.4 mm UVFS Plano HR 800 nm - 1100 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
2 in stock Ships in: 2–5 calendar days
$200
085-2225 Round 50.8 mm UVFS Plano HR 220 nm - 250 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
Out of stock Ships in: 58–61 calendar days
$317
085-2638 Round 50.8 mm UVFS Plano HR 260 nm - 380 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
5 in stock Ships in: 2–5 calendar days
$359
085-2638-i0 Round 50.8 mm UVFS Plano HR 260 nm - 380 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
3 in stock Ships in: 2–5 calendar days
$359
085-3644 Round 50.8 mm UVFS Plano HR 360 nm - 440 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$310
085-4254 Round 50.8 mm UVFS Plano HR 420 nm - 540 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
2 in stock Ships in: 2–5 calendar days
$309
085-5265 Round 50.8 mm UVFS Plano HR 520 nm - 650 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$309
085-6085 Round 50.8 mm UVFS Plano HR 600 nm - 850 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$309
085-7395 Round 50.8 mm UVFS Plano HR 730 nm - 950 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
6 in stock Ships in: 2–5 calendar days
$338
085-7395-i0 Round 50.8 mm UVFS Plano HR 730 nm - 950 nm 99 % - 100 % 0 deg 0 min 0 sec - 0 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$338
085-8011 Round 50.8 mm UVFS Plano HR 800 nm - 1100 nm 99 % - 100 % 45 deg 0 min 0 sec - 45 deg 0 min 0 sec avg
1 in stock Ships in: 2–5 calendar days
$323

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type Round
Diameter Upper Tolerance 0 mm
Diameter Lower Tolerance -0.12 mm
Center Thickness Upper Tolerance 0.25 mm
Center Thickness Lower Tolerance -0.25 mm
Parallelism, angle 0 deg 0 min 0 sec - 0 deg 3 min 0 sec

Surface 1

Surface Shape Plano
Surface quality, grind or polish Polished
Power and Irregularity, fringes @633 nm 0(0.2)
Clear Aperture, % 85 % - 100 %

Surface 1, Wavelength 1

Coating HR
Reflectivity, % 99 % - 100 %
Polarization avg

Surface 2

Surface Shape Plano
Surface quality, grind or polish Polished

Description

  • Broadband performance for range of most popular laser wavelengths
  • High reflectivity - Rₐvg> 99% for (s+p)/2 polarization
  • Made from UV grade Fused Silica or BK7 substrates
  • Designed for 45° or 0° angle of incidence
  • For ultrafast applications - Broadband Low GDD Laser Mirrors @720-880 mm can be found here

Broadband dielectric mirrors provide an optimised broadband performance at stated wavelength ranges. Broadband laser mirrors are designed for applications using Ti:Sapphire, dye, diode and YAG lasers.

The achieved high polishing quality is important for low wave front distortion, low scattering and high damage threshold.

Downloads

PDF
EKSMA_Optics_Laser_Mirrors_3_.pdf PDF · 207 KB
