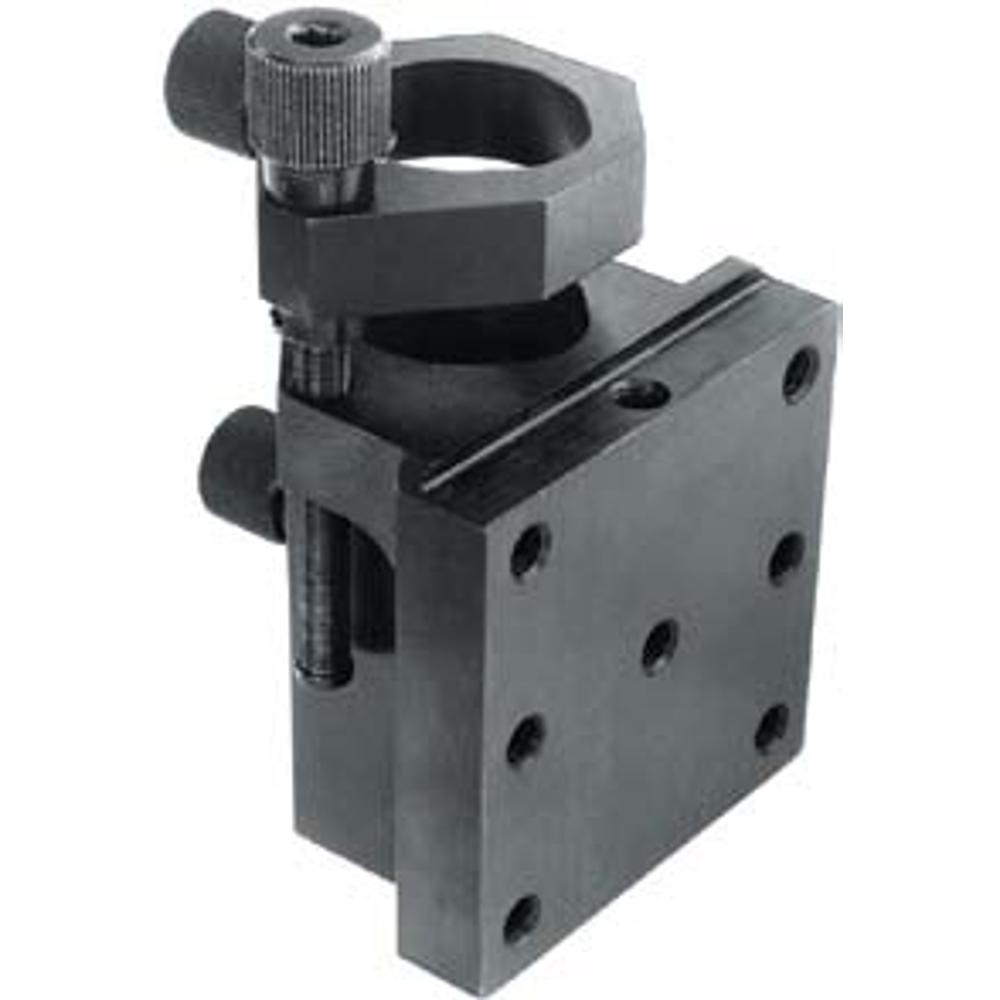

Vertical Positioner 810-0060
The 810-0060 positioner has one mounting surface with M6 tapped holes. It provides coarse and smooth vertical positioning of mounted components. Regulating screw thread is M6 × 0.5 mm. The 820-0090 base and the… Read more →
Order
| SKU | Product Type | Mount Material and Coating | Travel Range | Number of Axes | |
|---|---|---|---|---|---|
| 810-0060 | Vertical Positioner | Black Oxidized Steel | 30 mm | 1 |
Out of stock
$74
|
Specifications
| Product Type | Vertical Positioner |
| Mount Material and Coating | Black Oxidized Steel |
| Travel Range | 30 mm |
| Weight | 1 kg |
| Mounting Thread | M6 |
| Width | 65 mm |
| Length | 70 mm |
| Height | 134 mm |
| Number of Axes | 1 |
Description
The 810-0060 positioner has one mounting surface with M6 tapped holes. It provides coarse and smooth vertical positioning of mounted components. Regulating screw thread is M6 × 0.5 mm. The 820-0090 base and the 810-0080, 810-0090 angle brackets can be fastened to the edge or to the mounting surface of positioner.
Finish: black oxidized steel.

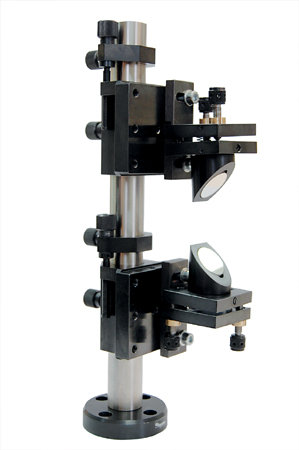

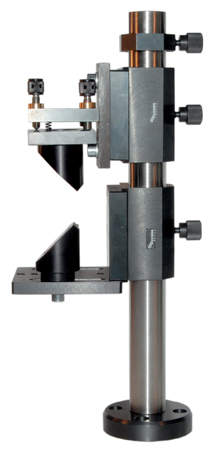

Mounting option - Periscope: Mounting option - Periscope:
Large Rod with rod base 810-0050, Large Rod with rod base 810-0050,
Large Rod Mounting Clamp 810-0061, Kinematic Mirror and Beamsplitter Mount
840-0020 (2 pcs.),
Movable Base 820-0090, Adapter for Mirror at 45 deg 840-0115 (2pcs.),
Kinematic Mirror and Beamsplitter Mount 840-0020, Vertical Positioner 810-0060 (2 pcs.),
Adapter for Mirror at 45 deg 840-0115 (2 pcs.), Movable Base 820-0070 (2pcs.),
Vertical Positioner 810-0060, Mirrors
Movable Base 820-0070 (2pcs.),
Mirrors
