BroadBand and Laser Line Mirrors for AOI from 0 to 45°

• Rₐvg > 99% for (s+p)/2 polarization that operates at all angles of incidence from 0 to 45° • Laser damage threshold >1 J/cm², 8 nsec pulse, 1064 nm typical Broadband and laser line dielectric mirrors with high… Read more →

From $46 Configure & order →

Volume discount

5–9 units −5%
10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Diameter 12.7 mm - 50.8 mm · 3 values Any mm

Material Any

Surface 1, Wavelength 1

Wavelength 257 nm - 1100 nm · 8 values Any nm

Reflectivity, % 98 % - 100 % · 5 values Any %

Polarization Any

21 catalog variants — refine the spec to narrow it down.

SKU	Shape Type	Diameter	Material	Surface Shape	Coating	Wavelength	Reflectivity, %	AOI (angle of incidence)	Polarization
041-0257-i0-45	Round	12.7 mm	UVFS	Plano	HR	257 nm - 257 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	6 in stock Ships in: 2–5 calendar days $156
041-0350-i0-45	Round	12.7 mm	UVFS	Plano	HR	343 nm - 355 nm	99.5 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	sp	10 in stock Ships in: 2–5 calendar days $119
041-0800HHR-i0-45	Round	12.7 mm	UVFS	Plano	HR	760 nm - 840 nm	99.9 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	Out of stock Ships in: 62–65 calendar days $146
042-0257-i0-45	Round	25.4 mm	UVFS	Plano	HR	257 nm - 257 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	6 in stock Ships in: 2–5 calendar days $198
042-0350-i0-45	Round	25.4 mm	UVFS	Plano	HR	351 nm - 361 nm	99.5 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	303 in stock Ships in: 2–5 calendar days $146
061-5306HHR-i0-45	Round	12.7 mm	UVFS	Plano	HR	532 nm - 532 nm	99.7 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	sp	13 in stock Ships in: 2–5 calendar days $126
062-5306HHR-i0-45	Round	25.4 mm	UVFS	Plano	HR	532 nm - 532 nm	99.7 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	sp	12 in stock Ships in: 2–5 calendar days $166
072-4075-i0-45	Round	25.4 mm	BK7	Plano	HR	400 nm - 750 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	28 in stock Ships in: 2–5 calendar days $71
072-7511-i0-45	Round	25.4 mm	BK7	Plano	HR	750 nm - 1100 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	7 in stock Ships in: 2–5 calendar days $71
075-4075-i0-45	Round	50.8 mm	BK7	Plano	HR	400 nm - 750 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	12 in stock Ships in: 2–5 calendar days $135
075-7511-i0-45	Round	50.8 mm	BK7	Plano	HR	750 nm - 1100 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	16 in stock Ships in: 2–5 calendar days $135
076-4076-i0-45	Round	12.7 mm	BK7	Plano	HR	400 nm - 750 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	Out of stock Ships in: 62–65 calendar days $46
076-7511-i0-45	Round	12.7 mm	BK7	Plano	HR	750 nm - 1100 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	29 in stock Ships in: 2–5 calendar days $46
082-2840-i0-45	Round	25.4 mm	UVFS	Plano	HR	280 nm - 400 nm	98 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	46 in stock Ships in: 2–5 calendar days $118
082-4075-i0-45	Round	25.4 mm	UVFS	Plano	HR	400 nm - 750 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	65 in stock Ships in: 2–5 calendar days $78
082-7511-i0-45	Round	25.4 mm	UVFS	Plano	HR	750 nm - 1100 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	64 in stock Ships in: 2–5 calendar days $78
085-4075-i0-45	Round	50.8 mm	UVFS	Plano	HR	400 nm - 750 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	Out of stock Ships in: 62–65 calendar days $149
085-7511-i0-45	Round	50.8 mm	UVFS	Plano	HR	750 nm - 1100 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	70 in stock Ships in: 2–5 calendar days $149
086-2840-i0-45	Round	12.7 mm	UVFS	Plano	HR	280 nm - 400 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	33 in stock Ships in: 2–5 calendar days $93
086-4075-i0-45	Round	12.7 mm	UVFS	Plano	HR	400 nm - 750 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	7 in stock Ships in: 2–5 calendar days $51
086-7511-i0-45	Round	12.7 mm	UVFS	Plano	HR	750 nm - 1100 nm	99 % - 100 %	0 deg 0 min 0 sec - 45 deg 0 min 0 sec	avg	8 in stock Ships in: 2–5 calendar days $51

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Shape Type	Round
Diameter Upper Tolerance	0 mm
Parallelism, angle	0 deg 0 min 0 sec - 0 deg 3 min 0 sec

Surface 1

Surface Shape	Plano
Surface quality, grind or polish	Polished
Power and Irregularity, fringes @633 nm	0(0.2)

Surface 1, Wavelength 1

Coating	HR
AOI (angle of incidence)	0 deg 0 min 0 sec - 45 deg 0 min 0 sec

Surface 2

Surface Shape	Plano
Surface quality, grind or polish	Polished

Description

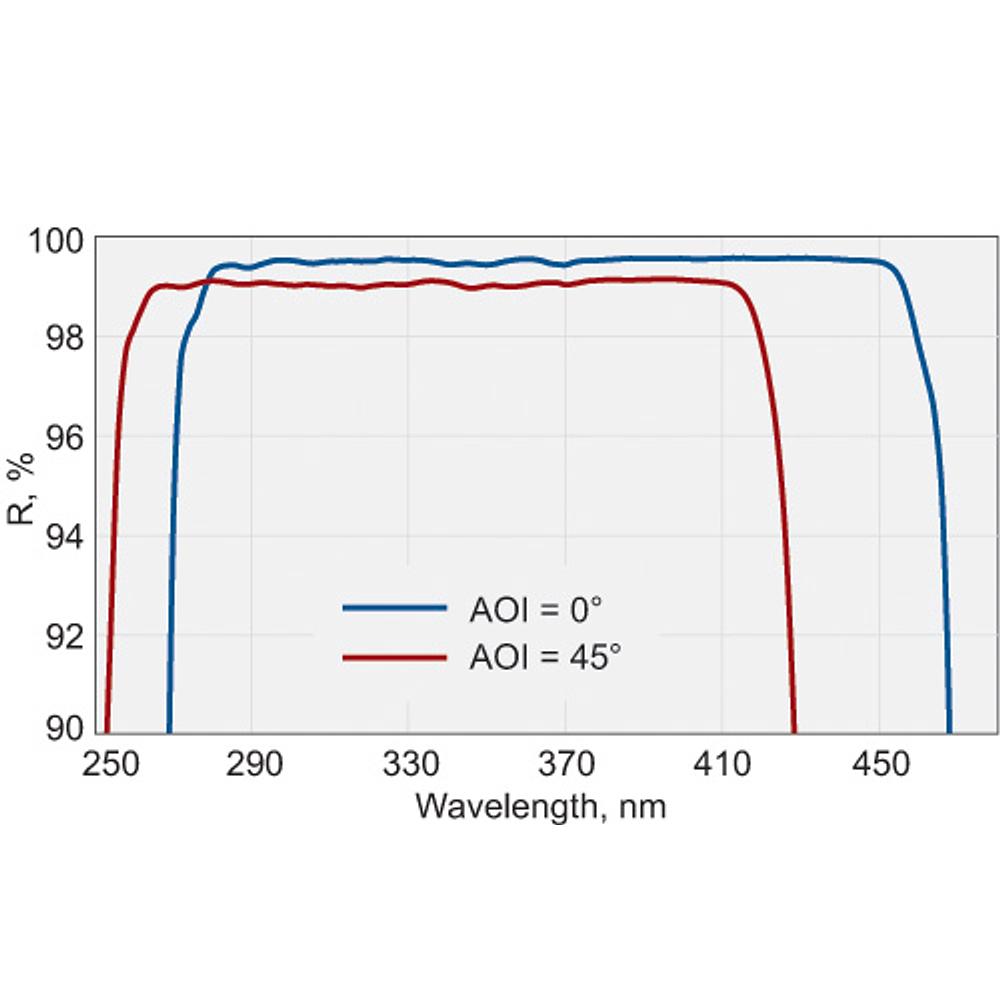

Rₐvg > 99% for (s+p)/2 polarization that operates at all angles of incidence from 0 to 45°
Laser damage threshold >1 J/cm², 8 nsec pulse, 1064 nm typical

Broadband and laser line dielectric mirrors with high reflectance (greater than 99% over specified range minimum) that operate at all angles of incidence from 0° to 45°. Broadband and laser line mirrors are available for 280-400 nm, 349-355 nm, 400-750 nm, 524-532 nm, 532+1064 nm, 750-1100 nm, 1047-1064 nm wavelength ranges.
