BroadBand and Laser Line Mirrors for AOI from 0 to 45° SKU: 086-4075-i0-45

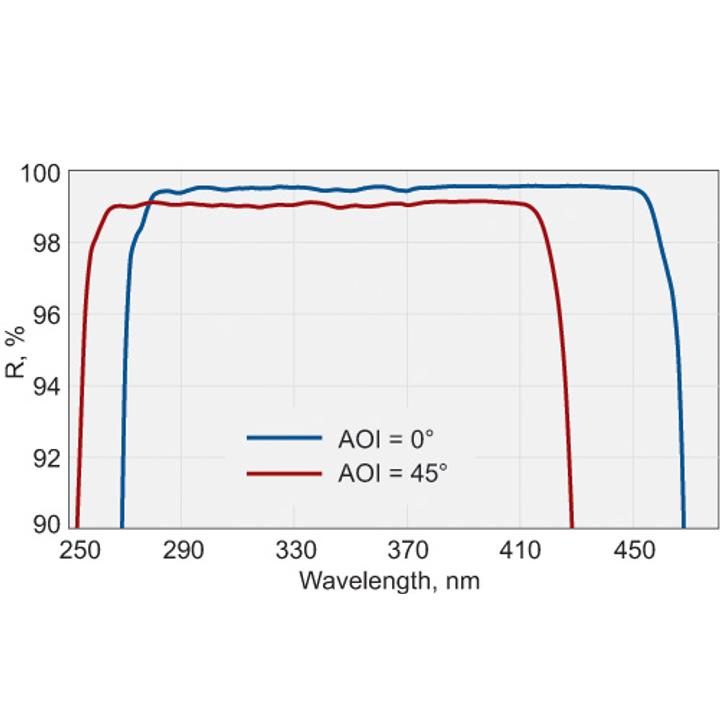

• Rₐvg > 99% for (s+p)/2 polarization that operates at all angles of incidence from 0 to 45° • Laser damage threshold >1 J/cm², 8 nsec pulse, 1064 nm typical Broadband and laser line dielectric mirrors with high reflectance (greater than 99% over specified range minimum) that…
Variant specifications
| Specification | Value |
|---|---|
| Material | UVFS |
| D | 12.7 mm |
| ET | 6 mm |
| R, % (s+p)/2 | 99.0% |
| AOI | 0-45° |
| Wavelength | 400-750 nm |
| Group | Substrate: UVFS |
Shared product specifications
These specifications apply across the BroadBand and Laser Line Mirrors for AOI from 0 to 45° product family.
| Material | UV grade fused silica |
| S1 Surface Flatness | λ / 10 typical at 633 nm |
| S1 Surface Quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| S2 Surface Quality | Commercial polish |
| Diameter Tolerance | + 0.00 mm, - 0.12 mm |
| Thickness Tolerance | ± 0.25 mm |
| Wedge | < 3 minutes |
| Chamfer | 0.3 mm at 45° typical |
| Technology | Electron beam multilayer dielectric / Ion beam sputtering (HHR series) |
| Adhesion and Durability | Per MIL-C-675A. Insoluble in lab solvents |
| Clear Aperture | Exceeds central 85% of diameter |
| Damage Threshold | 1 J / cm², 8 nsec pulse, 1064 nm typical |
| Coated Surface Flatness | λ / 10 at 633 nm over 85% of diameter |
| Angle of incidence | from 0° to 45° |
Classification
| Coating | dielectric |
Variant files
Technical drawings, models and data files for SKU 086-4075-i0-45.
Product brochures
Shared documentation for the complete product family.
