Femtoline Low GDD Ultrafast Mirrors
Laser mirrors for femtosecond applications are designed to have a broad operating wavelength range and linear phase versus frequency characteristics (low group delay dispersion (GDD)). The coating is a single layer… Read more →
Volume discount
- 5–9 units −10%
- 10+ units −15%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Surface 1, Wavelength 1
| SKU | Shape Type | Diameter | Material | Surface Shape | Coating | Wavelength | Reflectivity, % | AOI (angle of incidence) | Polarization | |
|---|---|---|---|---|---|---|---|---|---|---|
| 031-0400-i0 | Round | 12.7 mm | BK7 | Plano | HR | 380 nm - 420 nm | 99.5 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$76
|
| 031-0800-i0 | Round | 12.7 mm | BK7 | Plano | HR | 760 nm - 840 nm | 99.5 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
34 in stock
Ships in: 2–5 calendar days
$81
|
| 031-0800T6 | Round | 12.7 mm | BK7 | Plano | HR | 760 nm - 840 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
18 in stock
Ships in: 2–5 calendar days
$81
|
| 031-1030 | Round | 12.7 mm | BK7 | Plano | HR | 1000 nm - 1060 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$76
|
| 037-0515 | Round | 76.2 mm | BK7 | Plano | HR | 500 nm - 530 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$245
|
| 037-0515-i0 | Round | 76.2 mm | BK7 | Plano | HR | 500 nm - 530 nm | 99.5 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$245
|
| 037-1030 | Round | 76.2 mm | BK7 | Plano | HR | 1000 nm - 1060 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$245
|
| 037-1030-i0 | Round | 76.2 mm | BK7 | Plano | HR | 1000 nm - 1060 nm | 99.5 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$245
|
| 041-0400 | Round | 12.7 mm | UVFS | Plano | HR | 380 nm - 420 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$89
|
| 041-0515T6-i0 | Round | 12.7 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.5 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$82
|
| 041-0515T6HHR | Round | 12.7 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.9 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
14 in stock
Ships in: 2–5 calendar days
$100
|
| 041-0515T6HHR-i0 | Round | 12.7 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.9 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
13 in stock
Ships in: 2–5 calendar days
$100
|
| 041-0800T6HHR-i0 | Round | 12.7 mm | UVFS | Plano | HR | 760 nm - 840 nm | 99.95 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
6 in stock
Ships in: 2–5 calendar days
$143
|
| 042-0515HHR | Round | 25.4 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.9 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
154 in stock
Ships in: 2–5 calendar days
$140
|
| 042-0515HHR-i0 | Round | 25.4 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.9 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
33 in stock
Ships in: 2–5 calendar days
$140
|
| 042-1030 | Round | 25.4 mm | UVFS | Plano | HR | 1000 nm - 1060 nm | 99.5 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
178 in stock
Ships in: 2–5 calendar days
$119
|
| 042-1030HHR | Round | 25.4 mm | UVFS | Plano | HR | 1000 nm - 1060 nm | 99.9 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
92 in stock
Ships in: 2–5 calendar days
$140
|
| 045-0515T12HHR | Round | 50.8 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.9 % - 100 % | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$492
|
| 045-0515T12HHR-i0 | Round | 50.8 mm | UVFS | Plano | HR | 500 nm - 530 nm | 99.9 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
8 in stock
Ships in: 2–5 calendar days
$492
|
| 045-1030-i0 | Round | 50.8 mm | UVFS | Plano | HR | 1000 nm - 1060 nm | 99.5 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
9 in stock
Ships in: 2–5 calendar days
$224
|
| 047-0266-i0 | Round | 76.2 mm | UVFS | Plano | HR | 257 nm - 275 nm | 99 % - 100 % | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec | avg |
Out of stock
Ships in: 62–65 calendar days
$456
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Diameter Lower Tolerance | -0.12 mm |
| Center Thickness Upper Tolerance | 0.25 mm |
| Center Thickness Lower Tolerance | -0.25 mm |
Surface 1
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 85 % - 100 % |
Surface 1, Wavelength 1
| Coating | HR |
| Polarization | avg |
Surface 2
| Surface Shape | Plano |
| Surface quality, grind or polish | Polished |
Description
Laser mirrors for femtosecond applications are designed to have a broad operating wavelength range and linear phase versus frequency characteristics (low group delay dispersion (GDD)). The coating is a single layer dielectric and has no phase shift over the operating wavelength region.

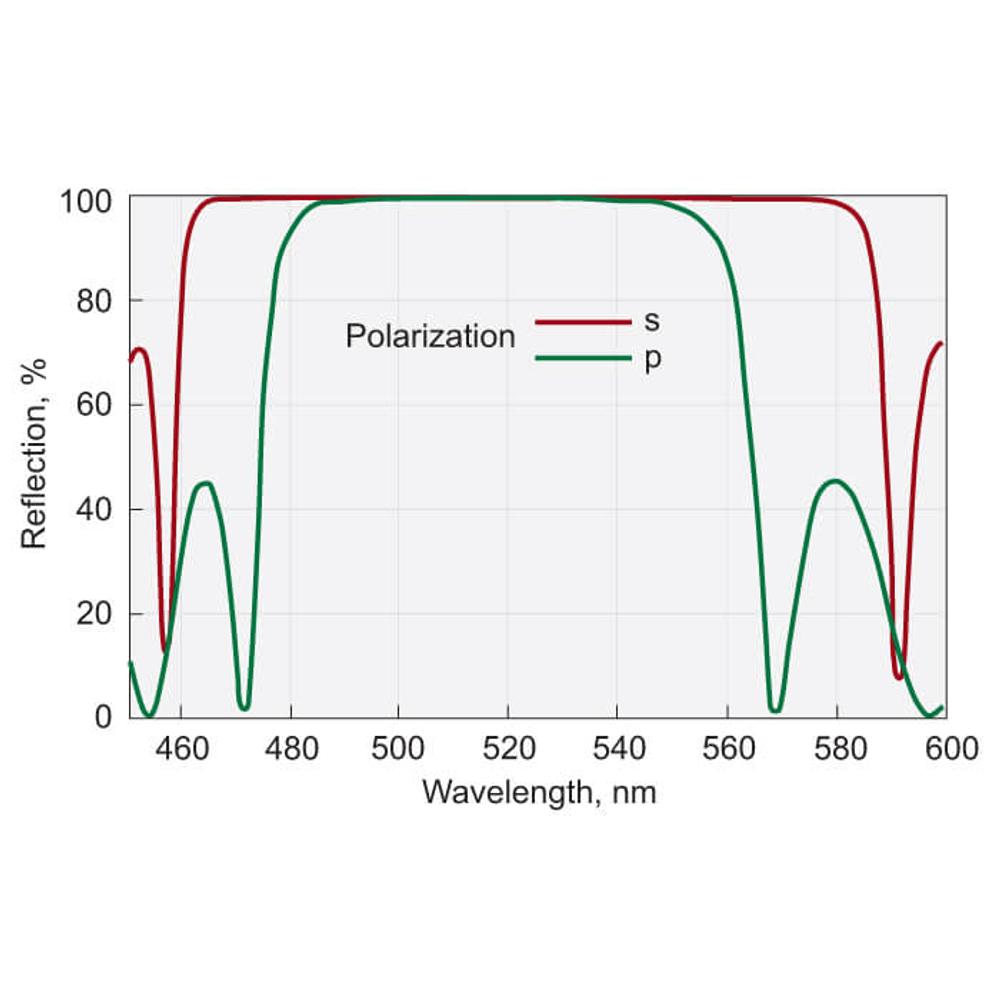

High reflectivity mirrors always have higher reflection, broader operating region and lower pulse distortion for s-polarization than for p-polarization for the same dielectric coating. If possible use the mirrors with s-polarized beam.
Our standard mirrors are suitable for fundamental Ti:Sapphire and Yb:KGW/KYW lasers and their doubled, tripled or quadrupled frequencies. Recommended for high power laser applications operating in UV region.
