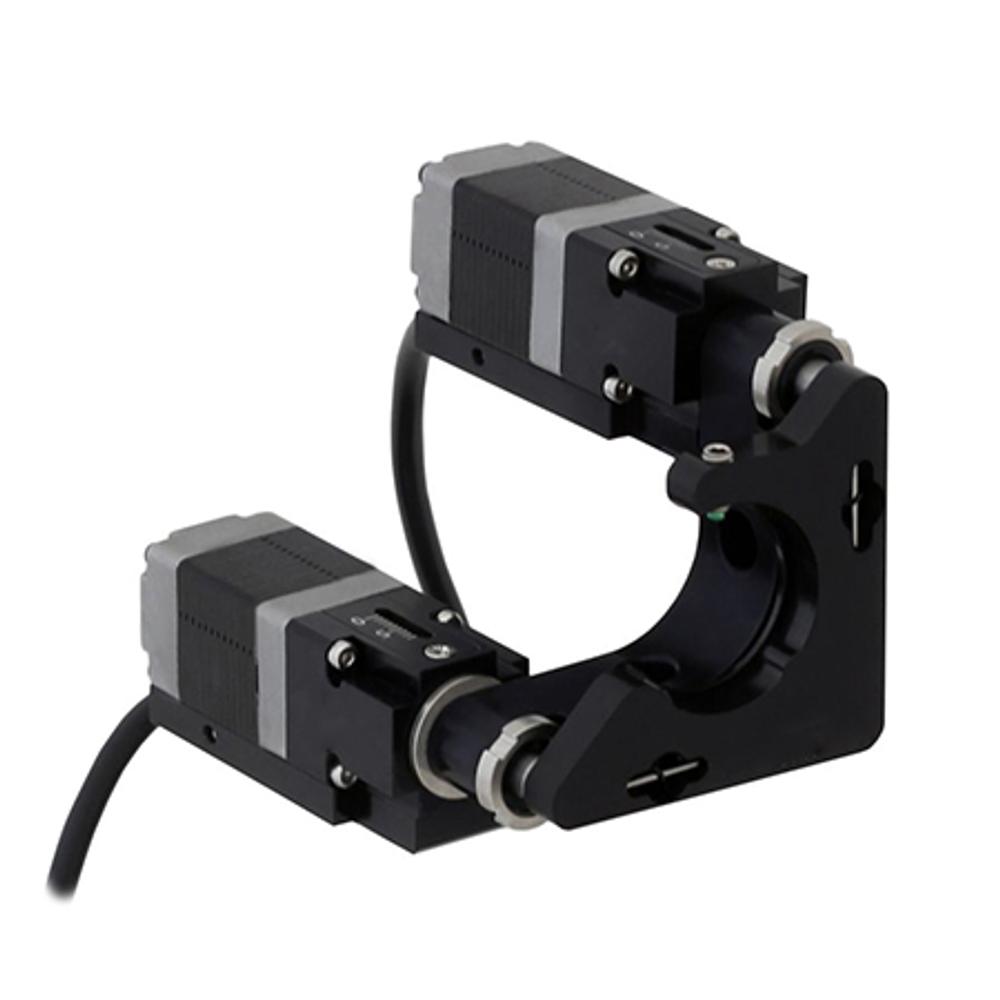

Motorized Mirror / Beamsplitter Mount 940-0060
• Mounts for Ø 1", Ø 2", Ø 3" optics • Tilt travel range 9° (about two axes) • Mounting on either of 2 sides • Clear edge design • Vacuum version available under request 940-0060 Motorized Mirror Mounts combine our… Read more →
Listed in
Order
| SKU | Description | |
|---|---|---|
| 940-0060-01 | For Ø 1" (25.4 mm) optics |
Out of stock
$1,235
|
| 940-0060-02 | For Ø 2" (50.8 mm) optics |
Out of stock
$1,365
|
| 940-0060-03 | For Ø 3" (76.2 mm) optics |
Out of stock
$1,493
|
Specifications
| Model | 940-0060-01 | 940-0060-02 | 940-0060-03 |
|---|---|---|---|
| Optics diameter | 25.4 mm | 50.8 mm | 76.2 mm |
| Clear aperture | 23 mm | 48 mm | 74 mm |
| Resolution | <1 arcsec | <1 arcsec | <1 arcsec |
| Tilt range | ±4.5° | ±4.5° | ±2.8° |
| Speed | from 1 arcsec / sec to 1° / sec | from 1 arcsec / sec to 1° / sec | from 1 arcsec / sec to 1° / sec |
| Installed actuators | 2 x 970-0060 | 2 x 970-0060 | 2 x 970-0060 |
| Optocoupler end limit switches | 2 per actuator, pushed is open | 2 per actuator, pushed is open | 2 per actuator, pushed is open |
| Cable | 1.2 m length cable included | 1.2 m length cable included | 1.2 m length cable included |
| Motor connector | HDB15(M) | HDB15(M) | HDB15(M) |
| Recommended controller | 980-0942 | 980-0942 | 980-0942 |
Description
- Mounts for Ø 1", Ø 2", Ø 3" optics
- Tilt travel range 9° (about two axes)
- Mounting on either of 2 sides
- Clear edge design
- Vacuum version available under request
940-0060 Motorized Mirror Mounts combine our popular Kinematic Mirror/Beamsplitter Mount with Motorized Compact Actuators . These motorized mirror mounts enable users to achieve more precise poistioning than with manual adjusters. Integrated opto-electronical limit switches prevent damage, while providing homing - repeatedly better than 10 arcsec.
As a standard motorized translation and rotation stages are provided with a damper. Revolution sensor and encoder are availbale under request. .
