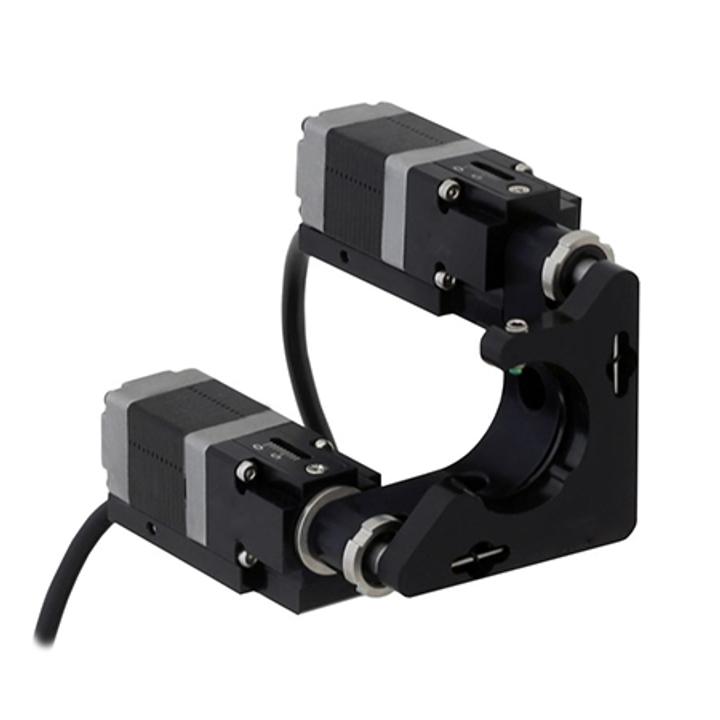

Motorized Mirror / Beamsplitter Mount 940-0060 SKU: 940-0060-03
• Mounts for Ø 1", Ø 2", Ø 3" optics • Tilt travel range 9° (about two axes) • Mounting on either of 2 sides • Clear edge design • Vacuum version available under request 940-0060 Motorized Mirror Mounts combine our popular 840-0056 Kinematic Mirror/Beamsplitter Mount with…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Motorized Optical Positioner, 2-screws |
| Vacuum Compatibility | False |
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 5.6 Deg |
| Tilt Sensitivity | 0 deg 0 min 1 sec |
| Travel Range | 4 mm |
| Mount Clear Aperture | 74 mm |
| Motor Type | Stepper motor 20 |
| Motor Connector | HDB15 |
| Weight | 0.3 kg |
| Mounted Optics Diameter | 76.2 mm - 76.2 mm |
| Number of Axes | 2 |
