Magnesium Fluoride (MgF2) Components
• Very hard and rugged • Resistant to mechanical and thermal shock • The only one optical material combining a wide spectral transmission band with birefringence phenomenon Magnesium fluoride (MgF₂) is a proven… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Diameter | Thickness | Material Type | Material | Coating S1W1 | Coating S2W1 | |
|---|---|---|---|---|---|---|---|
| 520-5253 | 25.4 mm | 3 mm | Crystalline Material | MGF2 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$156
|
| 520-5385 | 38.1 mm | 5 mm | Crystalline Material | MGF2 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$276
|
| 520-5506 | 50.8 mm | 6 mm | Crystalline Material | MGF2 | Uncoated | Uncoated |
1 in stock
Ships in: 2–5 calendar days
$444
|
| 520-6253 | 25.4 mm | 3 mm | Crystalline Material | MGF2 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$132
|
| 520-6385 | 38.1 mm | 5 mm | Crystalline Material | MGF2 | Uncoated | Uncoated |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 520-6506 | 50.8 mm | 6 mm | Crystalline Material | MGF2 | Uncoated | Uncoated |
3 in stock
Ships in: 2–5 calendar days
$420
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Shape Type | Round |
| Diameter Upper Tolerance | 0 mm |
| Thickness Tolerance Upper Limit | -0.2 mm |
| Thickness Tolerance Lower Limit | 0.2 mm |
| Material Type | Crystalline Material |
| Material | MGF2 |
Surface 1
| Surface quality, ISO | 40-20 |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 90 % - 100 % |
| Irregularity, fringes @633 nm | 0.5 fr |
Surface 1, Wavelength 1
| Coating | Uncoated |
Surface 2
| Surface quality, ISO | 40-20 |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 90 % - 100 % |
| Irregularity, fringes @633 nm | 0.5 fr |
Surface 2, Wavelength 1
| Coating | Uncoated |
Description
- Very hard and rugged
- Resistant to mechanical and thermal shock

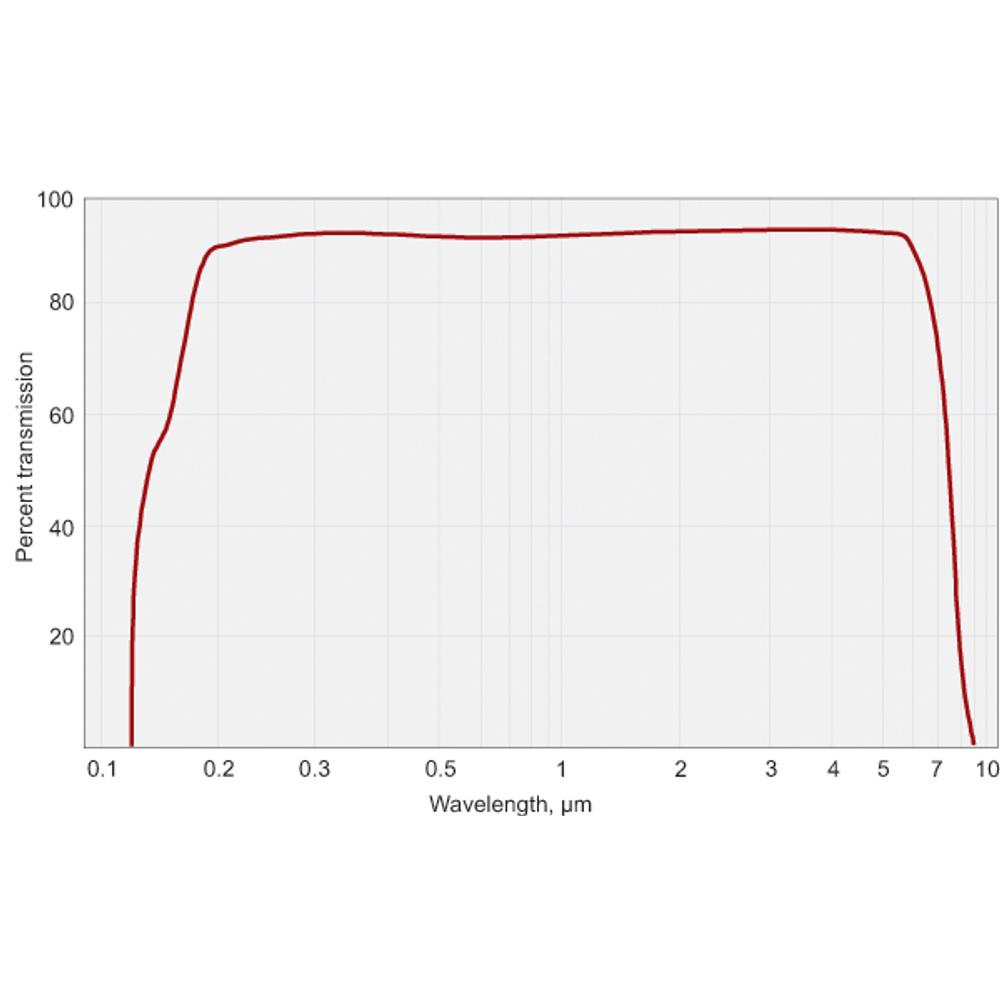

- The only one optical material combining a wide spectral transmission band with birefringence phenomenon
Magnesium fluoride (MgF₂) is a proven material for high energy lasers, and particularly for lasers operating in the UV range. Generally all optical elements are manufactured with the working surface perpendicular to the c-axis MgF₂ crystal.
