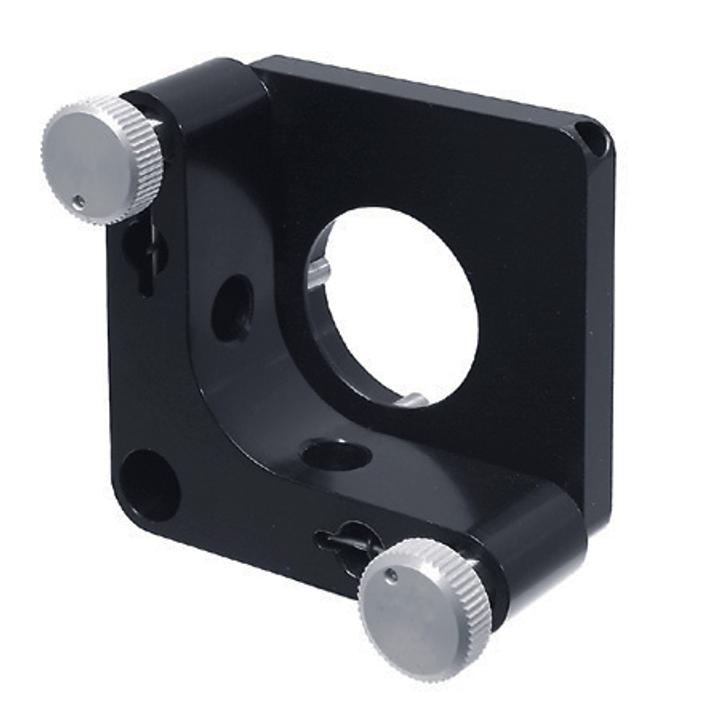

Kinematic Mirror/Beamsplitter Mounts (Al) 840-0032, 840-0033 SKU: 840-0033-90
Kinematic Mirror/Beamsplitter Mounts 840-0032 and 840-0033 are designed for precise alignment of various optical elements to desired angular and linear orientation. • Precise and handy adjustment • Stable vertical mounting • Made of black anodized aluminium The base of…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Manual Optical Positioner, 3-screws |
| Mount Material and Coating | Black Anodised Aluminum |
| Angular Tilt Range | 9 Deg |
| Tilt Sensitivity | 0 deg 0 min 3 sec |
| Travel Range | 5 mm |
| Mount Clear Aperture | 24 mm |
| Travel Sensitivity | 1 µm |
| Weight | 0.09 kg |
| Mounting Thread | M6 |
| Mounted Optics Diameter | 25.4 mm - 25.4 mm |
| Width | 54 mm |
| Length | 31.5 mm |
| Height | 54 mm |
| Number of Axes | 2 |
