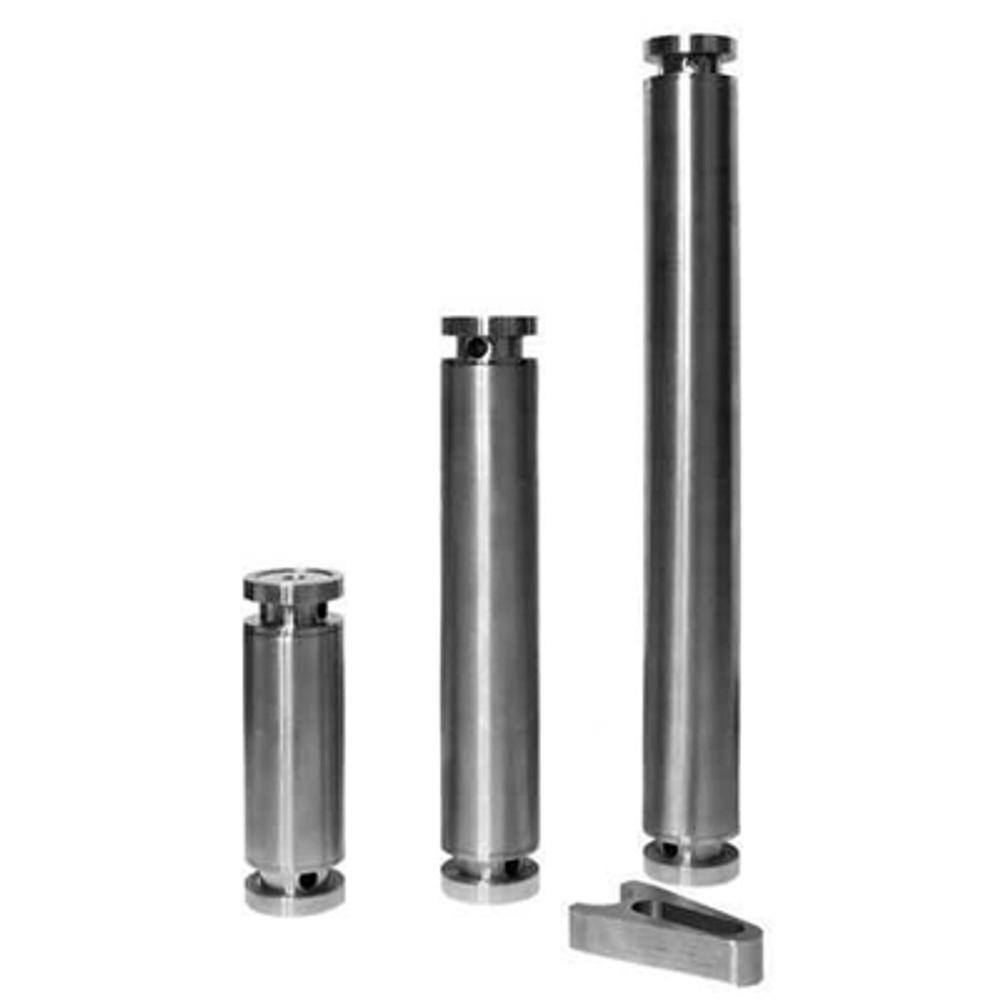

Silent Rods 795-0010
Great stiffness, sturdiness and strength of steel allow the Silent Rods 795-0010 to support large loads with great stability. • Antivibration filling Ø 32 mm • Stainless steel rod • M6 tapped holes on both end •… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Height | Diameter | Mount Material and Coating | |
|---|---|---|---|---|---|
| 795-0010-10 | Silent Rod | 100 mm | 32 mm | Stainless Steel |
Out of stock
$35
|
| 795-0010-20 | Silent Rod | 200 mm | 32 mm | Stainless Steel |
Out of stock
$39
|
| 795-0010-30 | Silent Rod | 300 mm | 32 mm | Stainless Steel |
Out of stock
$43
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Silent Rod |
| Diameter | 32 mm |
| Mount Material and Coating | Stainless Steel |
| Mounting Thread | M6 |
Description
Great stiffness, sturdiness and strength of steel allow the Silent Rods 795-0010 to support large loads with great stability.
- Antivibration filling Ø 32 mm
- Stainless steel rod
- M6 tapped holes on both end
- Designed to use with breadboards up to 0.5 m² square surface
Each rod has M6 tapped holes on, and a groove around both ends. Thus, for mounting to tables, thread adapters or clamp 820-0125 may be used.
A Silent Rod consists of a stainless steel tube filled with vibration damping plastic. Even without external damping elements applied, the rods have high resonant frequency and low vibration amplitudes. Steel ensures strength and thermal stability.
