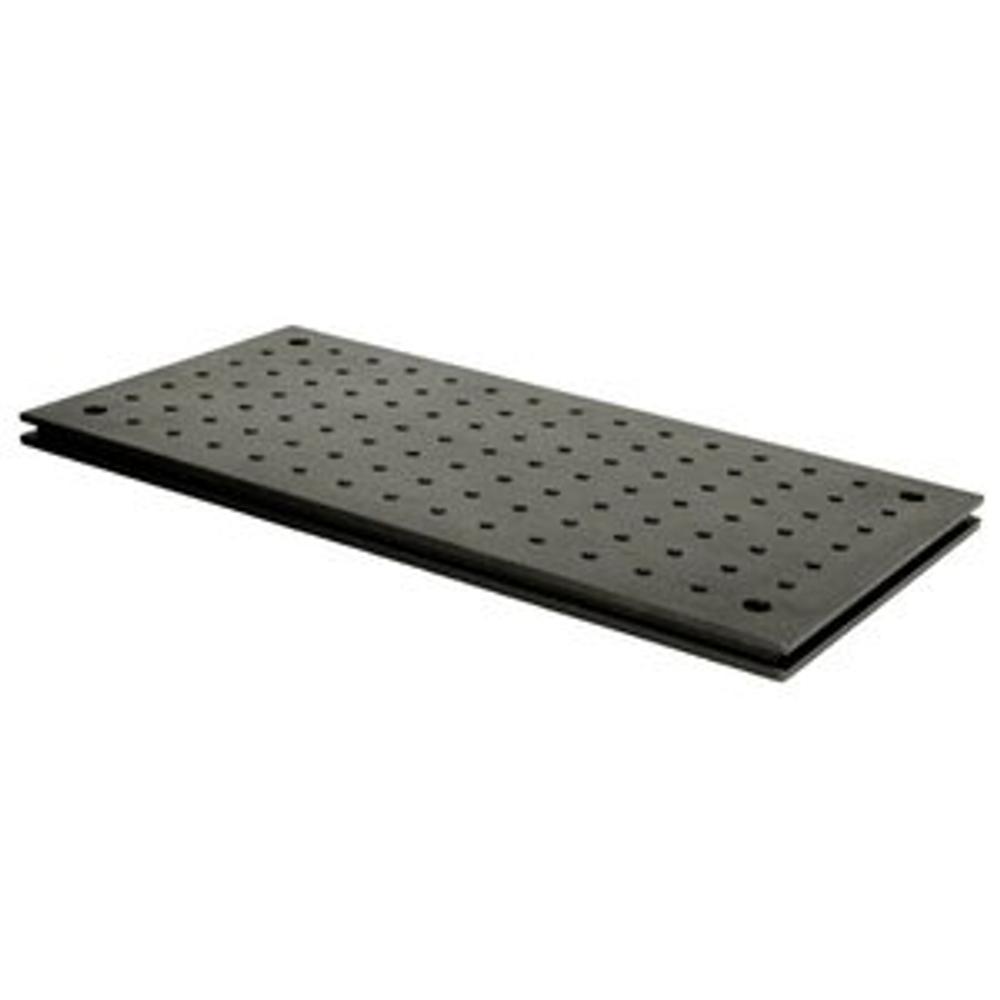

Solid Steel Breadboard 716
Solid steel optical breadboards are an alternative to honeycomb table tops. They are particulary useful in small optical setups. Breadboards have grooves on all 4 sides for quick mounting using table clamps 820-0240. On… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Width | Length | Height | Mount Material and Coating | |
|---|---|---|---|---|---|---|
| 716-2040 | Solid Breadboard | 200 mm | 400 mm | 15 mm | Blackened Steel |
Out of stock
$248
|
| 716-2040-BL | Solid Breadboard | 200 mm | 400 mm | 15 mm | Black Anodised Aluminum |
Out of stock
$266
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Solid Breadboard |
| Width | 200 mm |
| Length | 400 mm |
| Height | 15 mm |
| Hole spacing | 25 mm |
| Mounting Thread | M6 |
| Number of mounting holes | 4 |
| Hole-to-edge distance | 25 mm |
| Thickness | 15 mm |
Description
Solid steel optical breadboards are an alternative to honeycomb table tops. They are particulary useful in small optical setups. Breadboards have grooves on all 4 sides for quick mounting using table clamps 820-0240. On the corners there are 4 holes for M6 screws that can be used to mount the breadbord directly to optical tables or to fix the breadbord at a certain height on silent rods 795-0010.
Breadboard 716-2040 is a ferromagnetic steel plate with a flatness of ±0.03 mm.
Breadboard 716-2040-BL is a black anodized aluminum plate of a same design, but with a flatness of ±0.15 mm. This breadboard can be supplied on request.
- Length 400 mm, width 200 mm
- Thickness 15 mm
- M6 tapped holes pattern on 25 mm centres
