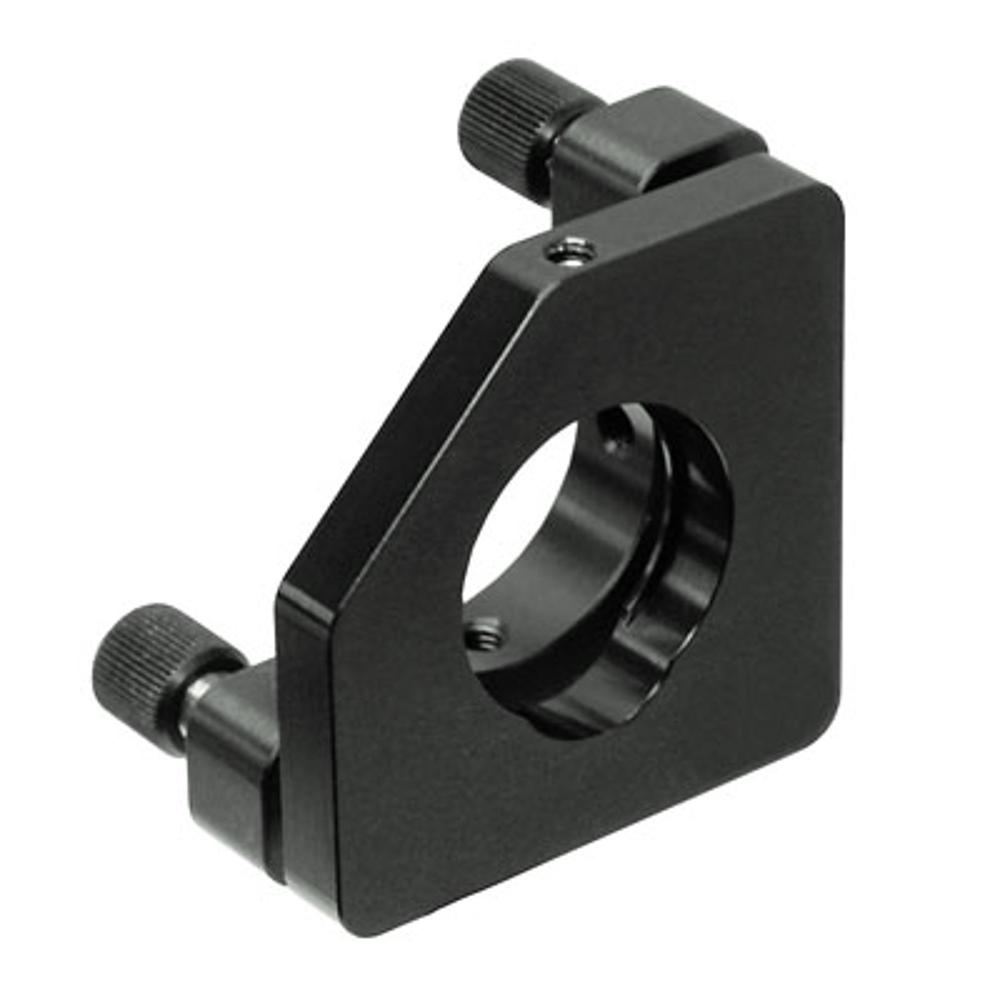

Beamsplitter/Mirror Mounts 840-3120-B
• For Ø25.4 mm (1 inch) optics • Reset-flange inside the central aperture stops the optics • Nylon-tipped fixing screw secures the optics • M6x0.25 adjustment screws provide precise kinematic control
Configure & order — pick a catalog variant or configure your own
Product
Product Type
Any
2
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Mount Clear Aperture | Mounted Optics Diameter | Number of Axes | |
|---|---|---|---|---|---|
| 840-3120E-B2 | Manual Optical Positioner, 2-screws | 24 mm | 25.4 mm | 2 |
Out of stock
$59
|
| 840-3120E-B3 | Manual Optical Positioner, 3-screws | 24 mm | 25.4 mm | 2 |
Out of stock
$71
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Mount Clear Aperture | 24 mm |
| Weight | 0.08 kg |
| Mounted Optics Diameter | 25.4 mm |
| Width | 50 mm |
| Length | 35 mm |
| Height | 50 mm |
| Number of Axes | 2 |
Description
- For Ø25.4 mm (1 inch) optics
- Reset-flange inside the central aperture stops the optics
- Nylon-tipped fixing screw secures the optics
- M6x0.25 adjustment screws provide precise kinematic control
