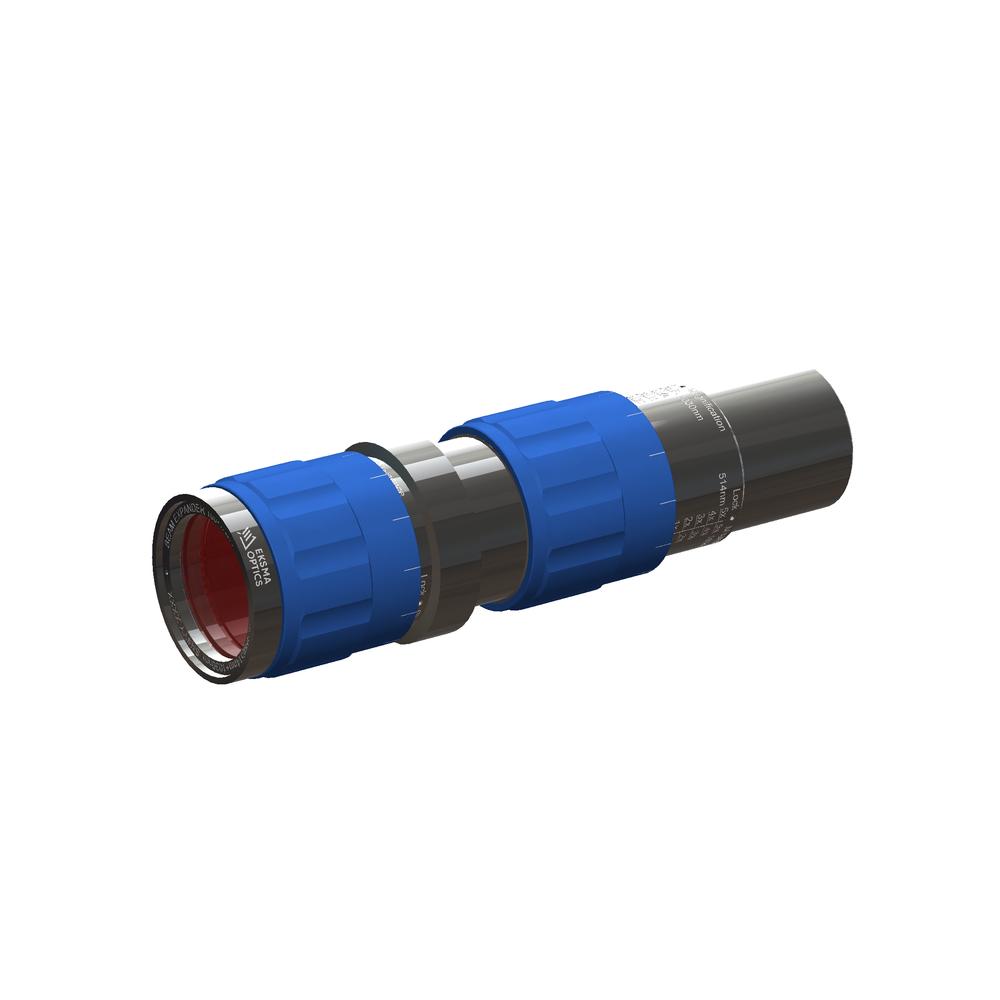

Zoom Beam Expanders for High Power Lasers
• Designed for high power laser applications: • IBS-coated UVFS thin lenses: LDT>80 J/cm² at 10 ns, 100 Hz, 1064 nm and >0.5 J/cm² at 200 fs, 1 kHz, 1030 nm • High total transmission: >98.5% • Low GDD:… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Order
Spec at a glance
| Wavelength range | 515-532+1030-1064 nm |
| Output Clear Aperture | 36.0 mm |
| Input Aperture | 11.0 mm |
| Expansion | 1X-5X |
| Weight | 0.41 kg |
| Wavelength Range | 343-355 nm |
| SKU | Wavelength range · Output Clear Aperture · Input Aperture · Expansion · Weight · Wavelength Range | |
|---|---|---|
| 166-1X5X-1H2H | 515-532+1030-1064 nm·36.0 mm·11.0 mm·1X-5X |
2 in stock
Ships in: 2–5 calendar days
$2,435
|
| 166-1X5X-3H | 36.0 mm·11.0 mm·1X-5X·0.41 kg·343-355 nm |
Out of stock
$2,551
|
Specifications
| Lenses material | UVFS |
| Transmitted Wavefront Distortion (TWD) | λ / 4 at 633 nm |
| Magnification | 1X - 5X |
| Coating | Antireflection, Ion Beam Sputtering |
| Laser Damage Threshold | 1064 nm: >10 J / cm², 10 ns pulse, 10 Hz / 532 nm: >7 J / cm², 10 ns pulse, 10 Hz / 355 nm: >5 J / cm², 10 ns pulse, 10 Hz |
| Input Thread | SM1 external |
| Mounting Options | SM1 external, Ø38.1, Ø50.8, M4 |
| Reverse usage | No |
Description
- Designed for high power laser applications:
- IBS-coated UVFS thin lenses: LDT>80 J/cm² at 10 ns, 100 Hz, 1064 nm and >0.5 J/cm² at 200 fs, 1 kHz, 1030 nm
- High total transmission: >98.5%
- Low GDD: relative pulse broadening <21% at 1030 nm
- Dual band AR-coated for: 1030/1064 nm + 515/532 nm
- Diffraction limited design for continuous magnification from 1X to 5X
- Divergence adjustment: non-rotating optics, sliding lens design
