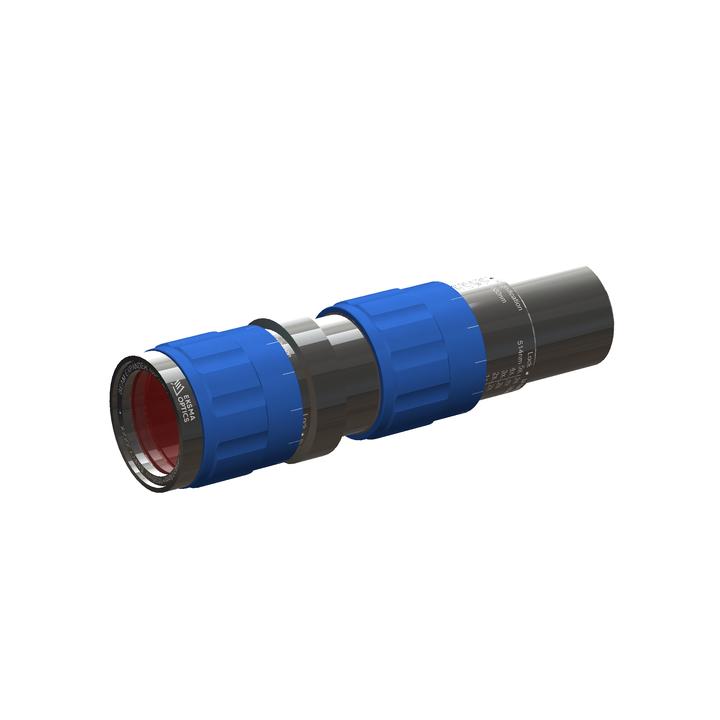

Zoom Beam Expanders for High Power Lasers SKU: 166-1X5X-3H
• Designed for high power laser applications: • IBS-coated UVFS thin lenses: LDT>80 J/cm² at 10 ns, 100 Hz, 1064 nm and >0.5 J/cm² at 200 fs, 1 kHz, 1030 nm • High total transmission: >98.5% • Low GDD: relative pulse broadening <21% at 1030 nm • Dual band AR-coated…
Variant specifications
| Specification | Value |
|---|---|
| Weight | 0.41 kg |
| Output Clear Aperture | 36.0 mm |
| Wavelength Range | 343-355 nm |
| Input Aperture | 11.0 mm |
| Expansion | 1X-5X |
Shared product specifications
These specifications apply across the Zoom Beam Expanders for High Power Lasers product family.
| Lenses material | UVFS |
| Transmitted Wavefront Distortion (TWD) | λ / 4 at 633 nm |
| Magnification | 1X - 5X |
| Coating | Antireflection, Ion Beam Sputtering |
| Laser Damage Threshold | 1064 nm: >10 J / cm², 10 ns pulse, 10 Hz / 532 nm: >7 J / cm², 10 ns pulse, 10 Hz / 355 nm: >5 J / cm², 10 ns pulse, 10 Hz |
| Input Thread | SM1 external |
| Mounting Options | SM1 external, Ø38.1, Ø50.8, M4 |
| Reverse usage | No |
Variant files
Technical drawings, models and data files for SKU 166-1X5X-3H.
