High Energy Polarizing Cube Beamsplitters
• Optically contacted for high power applications • Typical damage threshold: >15 J/cm², 10 ns, 10 Hz at 1064 nm • Dimensions - 12.7 x 12.7 mm or 25.4 x 25.4 mm • Precision surface quality • High extinction ratio … Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Side A length
12.7 mm - 25.4 mm · 2 values
Any
mm
mm
Mounted
Any
Extinction ratio
Any
Material
Any
Surface 1, Wavelength 1
Wavelength
343 nm - 1090 nm · 10 values
Any
nm
nm
Reflectivity, %
99.5 % - 100 % · 2 values
Any
%
%
Transmission, %
90 % - 100 % · 3 values
Any
%
%
25
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Side A length | Mounted | Extinction ratio | Material | Wavelength | Reflectivity, % | Transmission, % | |
|---|---|---|---|---|---|---|---|---|---|
| 435-1121 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 532 nm - 532 nm | 99.5 % - 100 % | 97 % - 100 % |
51 in stock
Ships in: 2–5 calendar days
$420
|
| 435-1121-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 532 nm - 532 nm | 99.5 % - 100 % | 97 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$480
|
| 435-1122 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 780 nm - 820 nm | 99.5 % - 100 % | 97 % - 100 % |
7 in stock
Ships in: 2–5 calendar days
$420
|
| 435-1122-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 780 nm - 820 nm | 99.5 % - 100 % | 97 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$480
|
| 435-1123 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 1064 nm - 1064 nm | 99.5 % - 100 % | 97 % - 100 % |
32 in stock
Ships in: 2–5 calendar days
$420
|
| 435-1123-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 1064 nm - 1064 nm | 99.5 % - 100 % | 97 % - 100 % |
1 in stock
Ships in: 2–5 calendar days
$480
|
| 435-1124 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 1030 nm - 1030 nm | 99.5 % - 100 % | 97 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$420
|
| 435-1124-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 1030 nm - 1030 nm | 99.5 % - 100 % | 97 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$480
|
| 435-1124D | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | H-ZF1 | 515 nm - 515 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$516
|
| 435-1127 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 355 nm - 355 nm | 99.5 % - 100 % | 97 % - 100 % |
19 in stock
Ships in: 2–5 calendar days
$450
|
| 435-1127-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 355 nm - 355 nm | 99.5 % - 100 % | 97 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$510
|
| 435-1128 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 343 nm - 343 nm | 99.5 % - 100 % | 97 % - 100 % |
22 in stock
Ships in: 2–5 calendar days
$450
|
| 435-1128-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 343 nm - 343 nm | 99.5 % - 100 % | 97 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$510
|
| 435-1129 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | UVFS | 515 nm - 515 nm | 99.5 % - 100 % | 97 % - 100 % |
3 in stock
Ships in: 2–5 calendar days
$420
|
| 435-1129-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | UVFS | 515 nm - 515 nm | 99.5 % - 100 % | 97 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$480
|
| 435-1222 | Polarizing beamsplitter cube | 25.4 mm | False | 500:1 | UVFS | 780 nm - 820 nm | 99.5 % - 100 % | 97 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$540
|
| 435-1222-M2P | Polarizing beamsplitter cube | 25.4 mm | True | 500:1 | UVFS | 780 nm - 820 nm | 99.5 % - 100 % | 97 % - 100 % |
1 in stock
Ships in: 2–5 calendar days
$600
|
| 435-1223 | Polarizing beamsplitter cube | 25.4 mm | False | 1000:1 | N-SF2 | 1020 nm - 1090 nm | 99.5 % - 100 % | 97 % - 100 % |
4 in stock
Ships in: 2–5 calendar days
$540
|
| 435-1223-M2P | Polarizing beamsplitter cube | 25.4 mm | True | 1000:1 | N-SF2 | 1020 nm - 1090 nm | 99.5 % - 100 % | 97 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$600
|
| 435-1224D | Polarizing beamsplitter cube | 25.4 mm | False | 500:1 | H-ZF1 | 515 nm - 515 nm | 99.5 % - 100 % | 95 % - 100 % |
9 in stock
Ships in: 2–5 calendar days
$660
|
| 435-1224D-M2P | Polarizing beamsplitter cube | 25.4 mm | True | 500:1 | H-ZF1 | 515 nm - 515 nm | 99.5 % - 100 % | 95 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$720
|
| 436-1121 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | N-SF2 | 420 nm - 680 nm | 99.8 % - 100 % | 90 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$450
|
| 436-1121-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | N-SF2 | 420 nm - 680 nm | 99.8 % - 100 % | 90 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$510
|
| 436-1123 | Polarizing beamsplitter cube | 12.7 mm | False | 500:1 | N-SF2 | 700 nm - 1080 nm | 99.8 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$450
|
| 436-1123-M2Ps | Polarizing beamsplitter cube | 12.7 mm | True | 500:1 | N-SF2 | 700 nm - 1080 nm | 99.8 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$510
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Polarizing beamsplitter cube |
| Side A length Lower Tolerance | -0.2 mm |
| Side A length upper tolerance | 0.2 mm |
| Cementing material or method | Optically contacted |
Surface 1
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 85 % - 100 % |
Surface 1, Wavelength 1
| AOI (angle of incidence) | 45 deg 0 min 0 sec - 45 deg 0 min 0 sec |
| Polarization | s/p |
Surface 2
| Surface quality, grind or polish | Polished |
| Clear Aperture, % | 85 % - 100 % |
Surface 2, Wavelength 1
| Coating | AR |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description
- Optically contacted for high power applications
- Typical damage threshold: >15 J/cm², 10 ns, 10 Hz at 1064 nm
- Dimensions - 12.7 x 12.7 mm or 25.4 x 25.4 mm
- Precision surface quality
- High extinction ratio

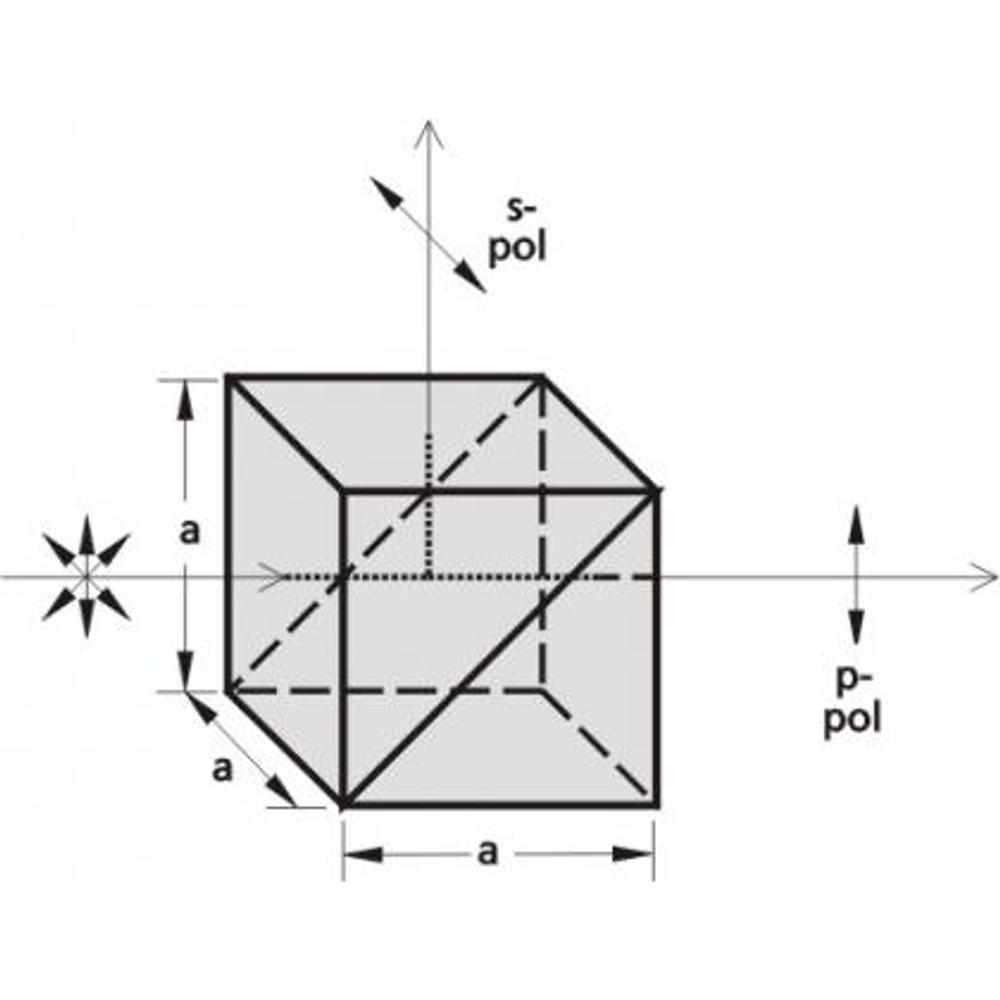

High Energy Polarizing Cube Beamsplitters are made of UV FS and optimized to be used for wavelength of 355, 532, 800, 1064 nm or wavelength ranges of 420-680 nm and 700-1080 nm.
Cube beamsplitters are optically contacted and feature laser damage thershold up to 15 J/cm². All four outer faces of the cube beamsplitters have anti-reflection coating. High Energy Polarizing Cubes are provided unmounted or conveniently mounted on M2Ps mount.
