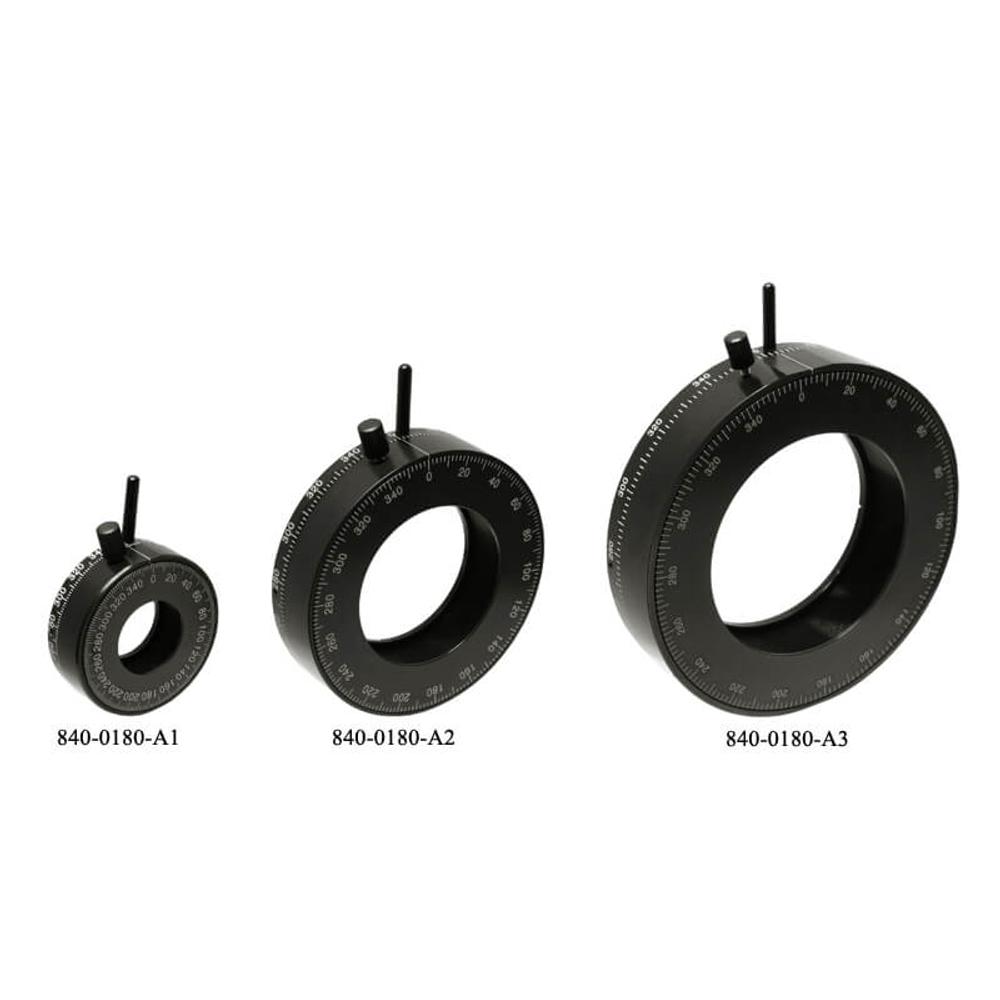

Polarizer Holders 840-0180-A, 840-0180-B

• 2 engraved scales located on face and outer surfaces • Compact design with roller bearings • Lockable • Continuous 360° rotation • Direct mounting of optics 1" , 2" or 3'' in diameter Polarizer Holders 840-0180-A are… Read more →

From $99 Configure & order →

Configure & order — pick a catalog variant or configure your own

Product

Mount Outer Diameter 51 mm - 115 mm · 3 values Any mm

Mount Thickness 17.5 mm - 26.5 mm · 3 values Any mm

6 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Mount Outer Diameter	Mount Thickness
840-0180-A1	Waveplate Holder	51 mm	17.5 mm	Out of stock $99
840-0180-A2	Waveplate Holder	82 mm	20 mm	2 in stock Ships in: 2–5 calendar days $210
840-0180-A3	Waveplate Holder	115 mm	26.5 mm	Out of stock $299
840-0180-B1	Waveplate Holder	51 mm	17.5 mm	Out of stock $99
840-0180-B2	Waveplate Holder	82 mm	20 mm	Out of stock $210
840-0180-B3	Waveplate Holder	115 mm	26.5 mm	Out of stock $299

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type	Waveplate Holder
Mount Material and Coating	Black Anodised Aluminum
Mounting Thread	M6, M4

Description

2 engraved scales located on face and outer surfaces
Compact design with roller bearings
Lockable
Continuous 360° rotation
Direct mounting of optics 1" , 2" or 3'' in diameter

Polarizer Holders 840-0180-A are ideal for positioning rotation sensitive optics such as polarizers or waveplates. Holders are offered for optics 1", 2" or 3'' in diameter. Optics is placed inside central aperture, where it is securely held in place by a threaded retaining ring. The position is indicated on two 360° angular scales, with gradation of 2°. Where space doesn't allow to read one scale, you always will be able to view another.

The base of a holder has threaded holes M6 and M4 for mounting on posts or bases.

840-0180-A has a removable rod to rotate the platform by any of its 4 holes.

Polarizer Holders 840-0180-B are the same as 840-0180-A, except that their fixing screw is tightened with a hex-key (included), and it doesn't stand out from the surface.

Like in 840-0180-A, the platform is rotated by any rod or the same hex key.

The holders are made of black anodized aluminium.
