Glan-Taylor Polarizing Prisms
• Made from natural calcite • Air-spaced • Extinction ratio - 1:100 000 Natural calcite Glan-Taylor polarizing prisms transmit linearly polarized extraordinary beam and deflect the ordinary beam to the housing.… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Side A length | Mounted | Mount Outer Diameter | Mount Clear Aperture | Material | Design Wavelength Range | Coating | |
|---|---|---|---|---|---|---|---|---|---|
| POL0001308 | Glan Taylor | 12 mm | False | — | — | Natural Calcite | 220 nm - 2300 nm | — |
Out of stock
Ships in: 62–65 calendar days
$641
|
| POL0001309 | Glan Taylor | 12 mm | True | 25 mm | 11 mm | Natural Calcite | 220 nm - 2300 nm | — |
Out of stock
Ships in: 62–65 calendar days
$684
|
| POL0001764 | Glan Taylor | — | True | 30 mm | 15 mm | a-BBO | 260 nm - 300 nm | AR |
Out of stock
Ships in: 58–61 calendar days
$1,080
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Glan Taylor |
| Cementing material or method | Air spaced |
| Material Type | Crystalline Material |
| TWD, fringes @633 nm | -(0.5) |
Surface 1
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
Surface 2
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
Description
- Made from natural calcite
- Air-spaced
- Extinction ratio - 1:100 000

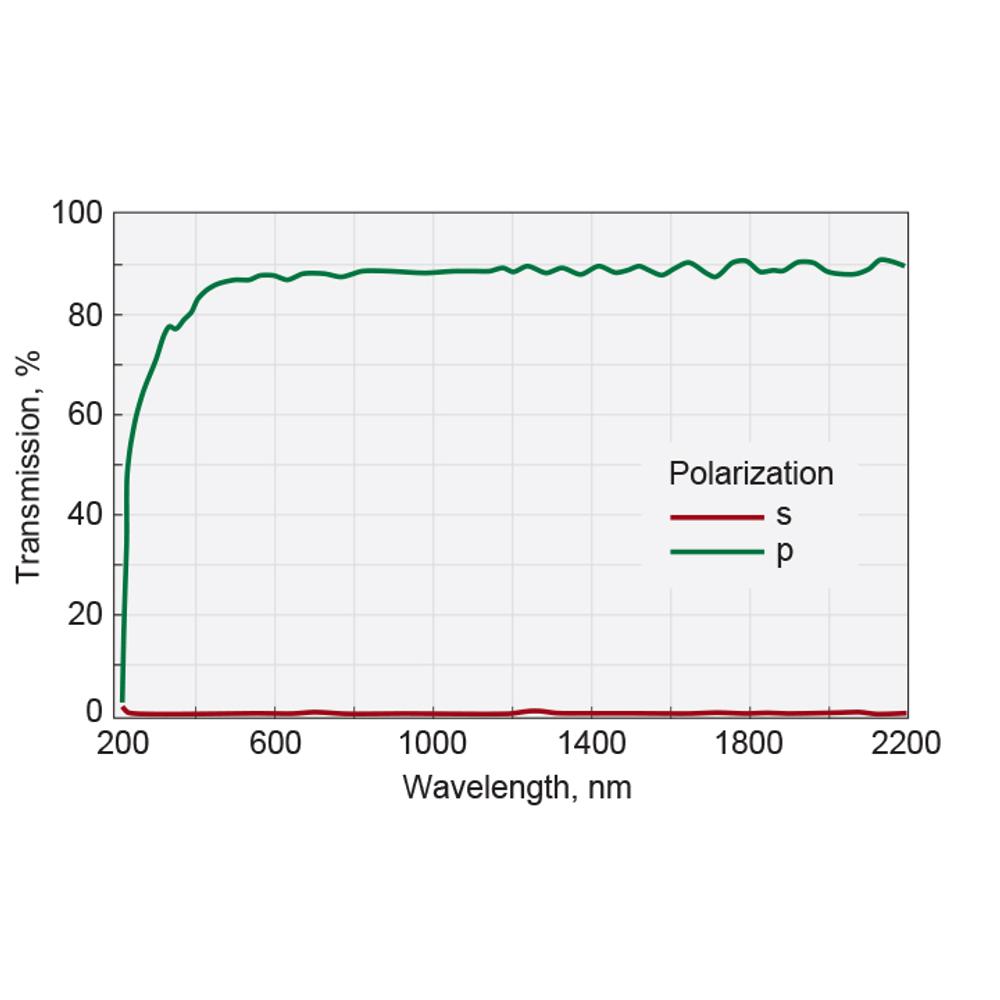

Natural calcite Glan-Taylor polarizing prisms transmit linearly polarized extraordinary beam and deflect the ordinary beam to the housing. Glan-Taylor prisms are designed for operation across the transmission range from 220 nm to 2300 nm.
Mounted prisms are supplied in ø 25 mm black anodized aluminum housings with no escape ports.
