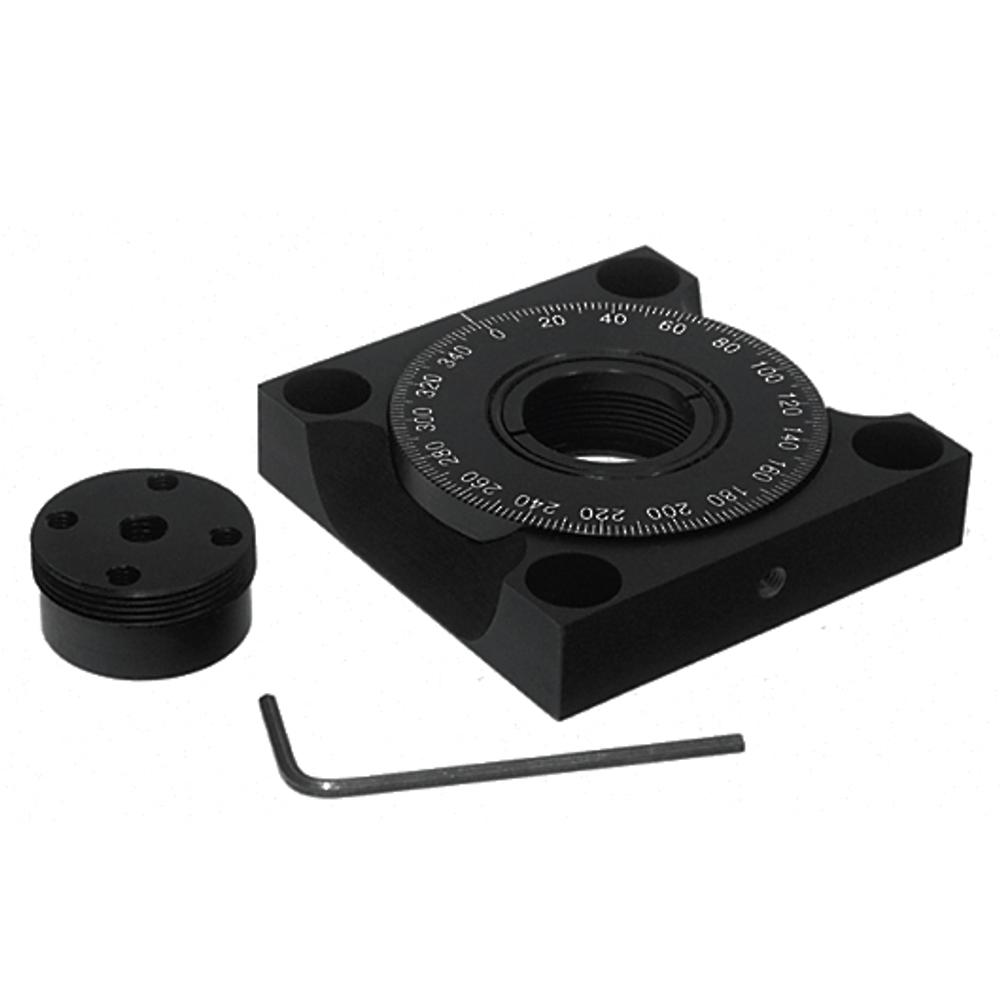

Polarizer Holder 840-0190
• for Ø1" optics • can be used as an optical mount and rotation stage • accepts optics up to 9 mm thick • continunous 360° rotation with 2° scale gradation • lockable • roller bearings design • material: black… Read more →
Configure & order — pick a catalog variant or configure your own
Product
| SKU | Product Type | Mount Thickness | |
|---|---|---|---|
| 840-0190-01 | Waveplate Holder | 15 mm |
2 in stock
Ships in: 2–5 calendar days
$104
|
| 840-0190-A1 | — | 13.2 mm |
Out of stock
$9
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Mount Material and Coating | Black Anodised Aluminum |
Description
- for Ø1" optics
- can be used as an optical mount and rotation stage
- accepts optics up to 9 mm thick
- continunous 360° rotation with 2° scale gradation
- lockable
- roller bearings design
- material: black anodized aluminium
Base of 840-0190 has beveled sides for fingers to rotate the platform by its knurled edge.
840-0190 Polarizer Holder can be transfomed into a rotation stage with a complementary insert platform 840-0190-A1, which should be ordered separately.
The platform has a pattern of M4 holes and a central Ø7-to-M6 hole. If you need to fasten to the central hole a unit with M4 mounting hole, you can slip an M4 screw through this Ø7-to-M6 combined hole (see the drawing for 840-0190-01).
