Alpha-BBO Glan Laser Polarizing Prisms
• Transmit linearly polarized extraordinary beam without deviation from its initial direction • Reflect ordinary ray out of the prism into either the black glass or the escape port air-spaced prisms Glan laser… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Listed in
Configure & order — pick a catalog variant or configure your own
Operating wavelength range
Any
or
Clear aperture
Any
Outer mount
Any
18
catalog variants — refine the spec to narrow it down.
| SKU | Group · Operating wavelength range · Clear aperture · Outer mount | |
|---|---|---|
| 441-2108 | Mounted without adapter, 200-270 nm·200-270 nm·ø 8 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$735
|
| 441-2108-M2Pd | Mounted with adapter, 200-270 nm·200-270 nm·ø 8 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$807
|
| 441-2110 | Mounted without adapter, 200-270 nm·200-270 nm·ø 10 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$857
|
| 441-2110-M2Pd | Mounted with adapter, 200-270 nm·200-270 nm·ø 10 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$929
|
| 441-2115 | Mounted without adapter, 200-270 nm·200-270 nm·ø 15 mm·ø 30 mm |
Out of stock
Ships in: 62–65 calendar days
$1,217
|
| 441-2115-M2PD | Mounted with adapter, 200-270 nm·200-270 nm·ø 15 mm·ø 30 mm |
Out of stock
Ships in: 62–65 calendar days
$1,289
|
| 441-2208 | Mounted without adapter, 260-340 nm·260-300 nm·ø 8 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$706
|
| 441-2208-M2Pd | 260-300 nm·ø 8 mm·ø 25.4 mm |
Out of stock
Ships in: 58–61 calendar days
$778
|
| 441-2210 | Mounted without adapter, 260-340 nm·260-300 nm·ø 10 mm·ø 25.4 mm |
3 in stock
Ships in: 2–5 calendar days
$836
|
| 441-2210-M2Pd | 260-300 nm·ø 10 mm·ø 25.4 mm |
Out of stock
Ships in: 58–61 calendar days
$908
|
| 441-2215 | Mounted without adapter, 260-340 nm·260-300 nm·ø 15 mm·ø 30 mm |
Out of stock
Ships in: 62–65 calendar days
$1,196
|
| 441-2215-M2PD | Mounted with adapter, 260-340 nm·260-300 nm·ø 15 mm·ø 30 mm |
2 in stock
Ships in: 2–5 calendar days
$1,268
|
| 441-2308 | Mounted without adapter, 300-400 nm·300-400 nm·ø 8 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$706
|
| 441-2308-M2Pd | Mounted with adapter, 300-400 nm·300-400 nm·ø 8 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$778
|
| 441-2310 | Mounted without adapter, 300-400 nm·300-400 nm·ø 10 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$836
|
| 441-2310-M2Pd | Mounted with adapter, 300-400 nm·300-400 nm·ø 10 mm·ø 25.4 mm |
Out of stock
Ships in: 62–65 calendar days
$908
|
| 441-2315 | Mounted without adapter, 300-400 nm·300-400 nm·ø 15 mm·ø 30 mm |
Out of stock
Ships in: 62–65 calendar days
$1,196
|
| 441-2315-M2PD | Mounted with adapter, 300-400 nm·300-400 nm·ø 15 mm·ø 30 mm |
Out of stock
Ships in: 62–65 calendar days
$1,268
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Material | α-BBO |
| Transmittance wavelength range | 200-3500 nm |
| Extinction ratio | 1:100 000 |
| Surface quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| Wavefront distortion | λ / 4 at 633 nm |
| Beam deviation | <3 arcmin |
| Angular field | >6 deg |
| Coating | Single layer MgF₂ |
| Mount | Black anodized aluminium |
Classification
| Type | Glan-Taylor|Glan-Laser|prism |
Description

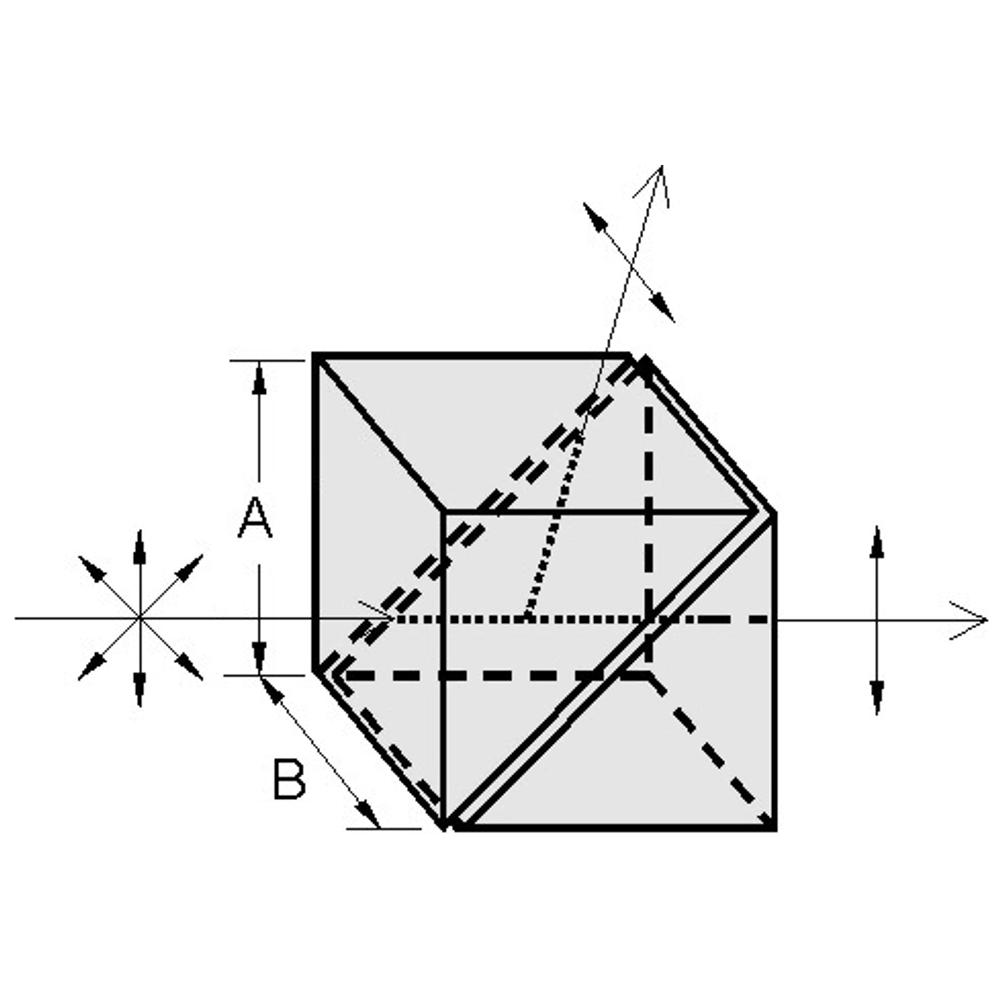

- Transmit linearly polarized extraordinary beam without deviation from its initial direction
- Reflect ordinary ray out of the prism into either the black glass or the escape port air-spaced prisms
Glan laser polarizers are manufactured from the finest optical grade α-BBO. They are useful in applications requiring high degree of polarization purity, high total transmission and low, medium or high power requirements.
