Alpha-BBO Glan Laser Polarizing Prisms SKU: 441-2310-M2Pd

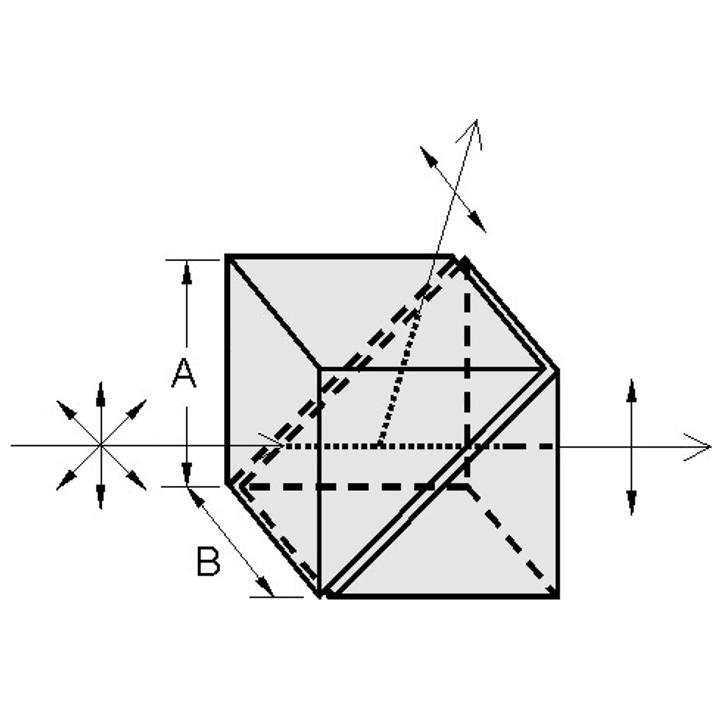

• Transmit linearly polarized extraordinary beam without deviation from its initial direction • Reflect ordinary ray out of the prism into either the black glass or the escape port air-spaced prisms Glan laser polarizers are manufactured from the finest optical grade α-BBO.…
Variant specifications
| Specification | Value |
|---|---|
| Operating wavelength range | 300-400 nm |
| Outer mount | ø 25.4 mm |
| Clear aperture | ø 10 mm |
| Group | Mounted with adapter, 300-400 nm |
Shared product specifications
These specifications apply across the Alpha-BBO Glan Laser Polarizing Prisms product family.
| Material | α-BBO |
| Transmittance wavelength range | 200-3500 nm |
| Extinction ratio | 1:100 000 |
| Surface quality | 20-10 scratch & dig (MIL-PRF-13830B) |
| Wavefront distortion | λ / 4 at 633 nm |
| Beam deviation | <3 arcmin |
| Angular field | >6 deg |
| Coating | Single layer MgF₂ |
| Mount | Black anodized aluminium |
Classification
| Type | Glan-Taylor|Glan-Laser|prism |
