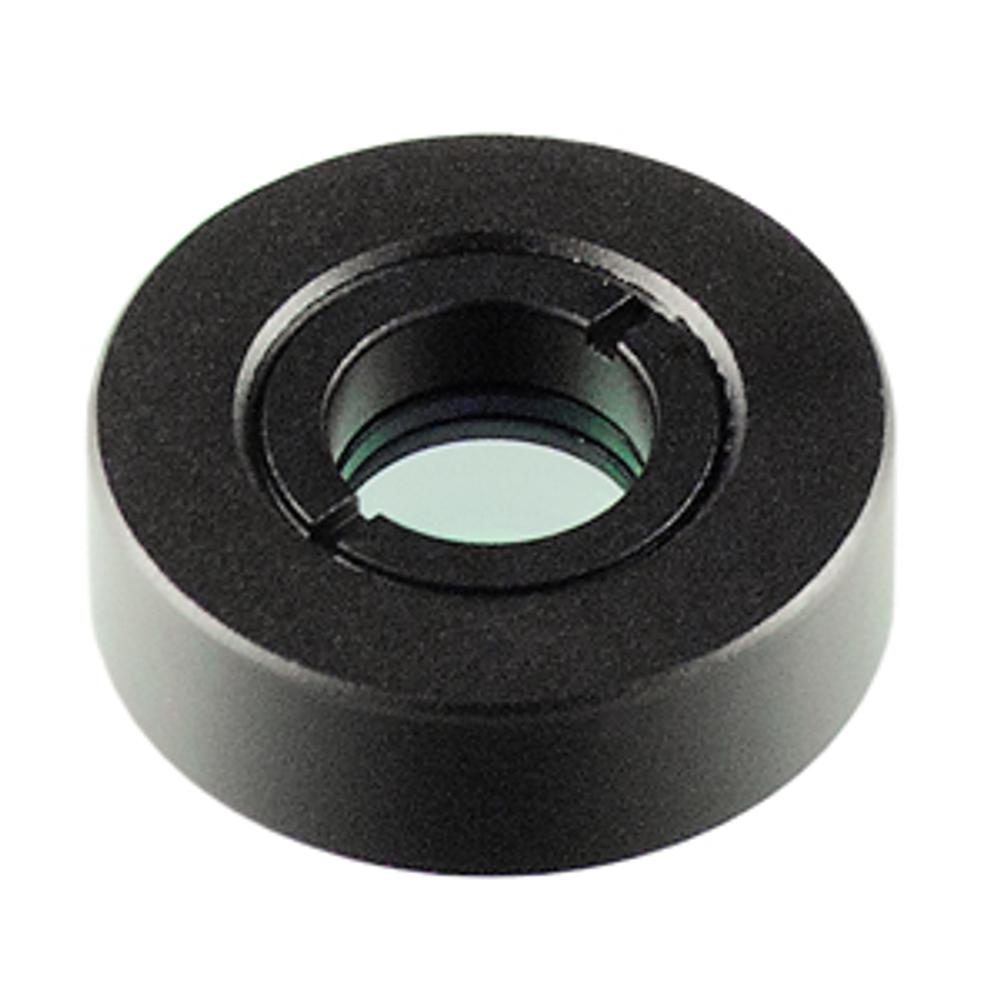

Achromatic Air-Spaced Wave Plates
Achromatic waveplates are made from two different materials: crystal quartz and magnesium fluoride with highly efficient broadband antireflection coatings in an air spaced design. Retardation tolerance of our… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Wavelength 1
| SKU | Product Type | Cementing material or method | Shape Type | Diameter | Mounted | Material | Design Wavelength Range | Retardation | Retardation Accuracy | |
|---|---|---|---|---|---|---|---|---|---|---|
| 467-4205 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 450 nm - 680 nm | L/2 | <L/100 |
18 in stock
Ships in: 2–5 calendar days
$576
|
| 467-4210 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 700 nm - 1000 nm | L/2 | <L/100 |
15 in stock
Ships in: 2–5 calendar days
$576
|
| 467-4215 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 950 nm - 1300 nm | L/2 | <L/100 |
Out of stock
Ships in: 62–65 calendar days
$576
|
| 467-4220 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 1200 nm - 1650 nm | L/2 | <L/100 |
4 in stock
Ships in: 2–5 calendar days
$576
|
| 467-4405 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 450 nm - 680 nm | L/4 | <L/100 |
23 in stock
Ships in: 2–5 calendar days
$576
|
| 467-4410 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 700 nm - 1000 nm | L/4 | <L/100 |
15 in stock
Ships in: 2–5 calendar days
$576
|
| 467-4415 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 950 nm - 1300 nm | L/4 | <L/100 |
3 in stock
Ships in: 2–5 calendar days
$576
|
| 467-4420 | Achromatic | Air spaced | Round | 12.7 mm | True | Crystal Quartz+MgF2 | 1200 nm - 1650 nm | L/4 | <L/100 |
9 in stock
Ships in: 2–5 calendar days
$576
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Achromatic |
| Cementing material or method | Air spaced |
| Shape Type | Round |
| Diameter | 12.7 mm |
| Thickness | 0 mm |
| Mounted | True |
| Mount Thickness | 6 mm |
| Mount Outer Diameter | 25.4 mm |
| Material Type | Crystalline Material |
| Material | Crystal Quartz+MgF2 |
| TWD, fringes @633 nm | -(0.5) |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 30 sec |
Wavelength 1
| Retardation Accuracy | <L/100 |
Surface 1
| Surface quality, ISO | 20-10 |
Surface 1, Wavelength 1
| Coating | AR |
| Reflectivity, % | 0 % - 0.8 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Surface 2
| Surface quality, ISO | 20-10 |
Surface 2, Wavelength 1
| Coating | AR |
| Reflectivity, % | 0 % - 0.8 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
Description
Achromatic waveplates are made from two different materials: crystal quartz and magnesium fluoride with highly efficient broadband antireflection coatings in an air spaced design.
Retardation tolerance of our achromatic waveplates is better than λ/100 over the entire wavelength range. The flat response of these waveplates is ideal for use with tunable lasers,multiple laser-line systems and other broad spectrum sources.
Our achromatic waveplates are available for four wavelength ranges:VIS (450-680nm), NIR (700-1000nm), 950-1300, nm 1200-1650 nm. The waveplates are provided in a black anodized aluminum housing.
