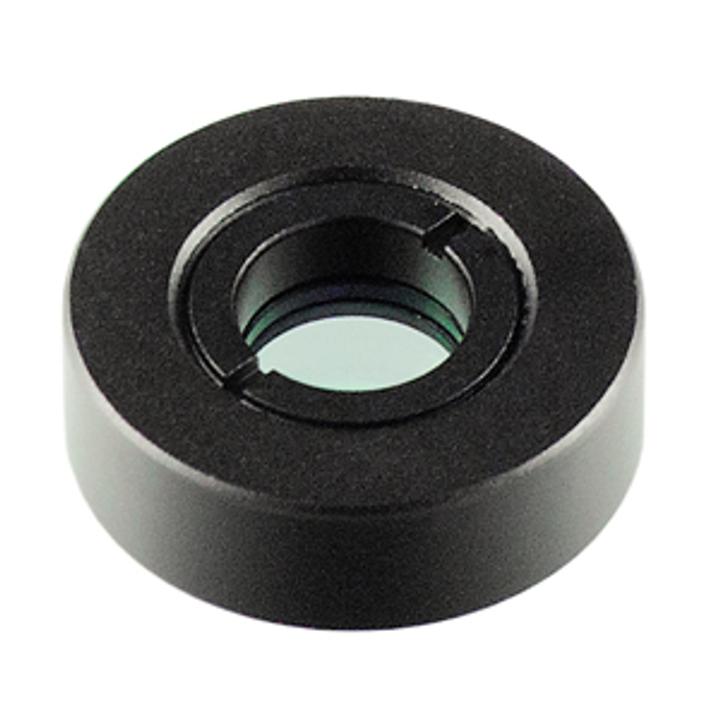

Achromatic Air-Spaced Wave Plates SKU: 467-4205
Achromatic waveplates are made from two different materials: crystal quartz and magnesium fluoride with highly efficient broadband antireflection coatings in an air spaced design. Retardation tolerance of our achromatic waveplates is better than λ/100 over the entire…
Variant specifications
| Product | Value |
|---|---|
| Product Type | Achromatic |
| Cementing material or method | Air spaced |
| Shape Type | Round |
| Diameter | 12.7 mm |
| Thickness | 0 mm |
| Mounted | True |
| Mount Thickness | 6 mm |
| Mount Outer Diameter | 25.4 mm |
| Mount Clear Aperture | 12 mm |
| Material Type | Crystalline Material |
| Material | Crystal Quartz+MgF2 |
| TWD, fringes @633 nm | -(0.5) |
| Parallelism, angle | 0 deg 0 min 0 sec - 0 deg 0 min 30 sec |
| Wavelength 1 | Value |
|---|---|
| Design Wavelength Range | 450 nm - 680 nm |
| Retardation | L/2 |
| Retardation Accuracy | <L/100 |
| Surface 1 | Value |
|---|---|
| Surface quality, ISO | 20-10 |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Surface 1, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 450 nm - 680 nm |
| Reflectivity, % | 0 % - 0.8 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
| Surface 2 | Value |
|---|---|
| Surface quality, ISO | 20-10 |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Surface 2, Wavelength 1 | Value |
|---|---|
| Coating | AR |
| Wavelength | 450 nm - 680 nm |
| Reflectivity, % | 0 % - 0.8 % |
| AOI (angle of incidence) | 0 deg 0 min 0 sec - 0 deg 0 min 0 sec |
