Cube Polarizing Beamsplitters
• Durable and convenient • Optimized for popular laser wavelengths Polarizing film is coated on the internal face of a cube beamsplitter. Thin film polarizers utilize the polarization wich occurs on reflection… Read more →
Volume discount
- 5–9 units −5%
- 10+ units −10%
Applied in your cart. Quantities of any variant of this product count together.
Configure & order — pick a catalog variant or configure your own
Product
Side A length
10 mm - 25 mm · 4 values
Any
mm
mm
Mounted
Any
Extinction ratio
Any
Material
Any
Surface 1, Wavelength 1
Wavelength
308 nm - 1064 nm · 6 values
Any
nm
nm
Reflectivity, %
99 % - 100 % · 2 values
Any
%
%
Transmission, %
90 % - 100 % · 2 values
Any
%
%
39
catalog variants — refine the spec to narrow it down.
| SKU | Product Type | Side A length | Mounted | Extinction ratio | Material | Wavelength | Reflectivity, % | Transmission, % | |
|---|---|---|---|---|---|---|---|---|---|
| 430-0101 | Polarizing beamsplitter cube | 10 mm | False | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$162
|
| 430-0101-M2Ps | Polarizing beamsplitter cube | 10 mm | True | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 430-0102 | Polarizing beamsplitter cube | 10 mm | False | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
13 in stock
Ships in: 2–5 calendar days
$162
|
| 430-0102-M2Ps | Polarizing beamsplitter cube | 10 mm | True | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 430-0103 | Polarizing beamsplitter cube | 10 mm | False | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
5 in stock
Ships in: 2–5 calendar days
$162
|
| 430-0103-M2Ps | Polarizing beamsplitter cube | 10 mm | True | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 430-0104 | Polarizing beamsplitter cube | 10 mm | False | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
4 in stock
Ships in: 2–5 calendar days
$162
|
| 430-0104-M2Ps | Polarizing beamsplitter cube | 10 mm | True | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 430-0151 | Polarizing beamsplitter cube | 15 mm | False | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
23 in stock
Ships in: 2–5 calendar days
$198
|
| 430-0151-M2P | Polarizing beamsplitter cube | 15 mm | True | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0152 | Polarizing beamsplitter cube | 15 mm | False | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$198
|
| 430-0152-M2P | Polarizing beamsplitter cube | 15 mm | True | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0153 | Polarizing beamsplitter cube | 15 mm | False | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$198
|
| 430-0153-M2P | Polarizing beamsplitter cube | 15 mm | True | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0154 | Polarizing beamsplitter cube | 15 mm | False | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
1 in stock
Ships in: 2–5 calendar days
$198
|
| 430-0154-M2P | Polarizing beamsplitter cube | 15 mm | True | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0201 | Polarizing beamsplitter cube | 20 mm | False | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$222
|
| 430-0201-M2P | Polarizing beamsplitter cube | 20 mm | True | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$282
|
| 430-0202 | Polarizing beamsplitter cube | 20 mm | False | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$222
|
| 430-0202-M2P | Polarizing beamsplitter cube | 20 mm | True | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$282
|
| 430-0203 | Polarizing beamsplitter cube | 20 mm | False | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
1 in stock
Ships in: 2–5 calendar days
$222
|
| 430-0203-M2P | Polarizing beamsplitter cube | 20 mm | True | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$282
|
| 430-0204 | Polarizing beamsplitter cube | 20 mm | False | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
19 in stock
Ships in: 2–5 calendar days
$222
|
| 430-0251 | Polarizing beamsplitter cube | 25 mm | False | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0251-M2P | Polarizing beamsplitter cube | 25 mm | True | 200:1 | BK7 | 532 nm - 532 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$318
|
| 430-0252 | Polarizing beamsplitter cube | 25 mm | False | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0252-M2P | Polarizing beamsplitter cube | 25 mm | True | 200:1 | BK7 | 780 nm - 780 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$318
|
| 430-0253 | Polarizing beamsplitter cube | 25 mm | False | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
5 in stock
Ships in: 2–5 calendar days
$258
|
| 430-0253-M2P | Polarizing beamsplitter cube | 25 mm | True | 200:1 | BK7 | 1064 nm - 1064 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$318
|
| 430-0254 | Polarizing beamsplitter cube | 25 mm | False | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$258
|
| 430-0254-M2P | Polarizing beamsplitter cube | 25 mm | True | 200:1 | BK7 | 633 nm - 633 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$318
|
| 430-1105 | Polarizing beamsplitter cube | 10 mm | False | 100:1 | UVFS | 308 nm - 308 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 58–61 calendar days
$336
|
| 430-1107 | Polarizing beamsplitter cube | 10 mm | False | 100:1 | UVFS | 355 nm - 355 nm | 99 % - 100 % | 90 % - 100 % |
1 in stock
Ships in: 2–5 calendar days
$324
|
| 430-1107-M2Ps | Polarizing beamsplitter cube | 10 mm | True | 100:1 | UVFS | 355 nm - 355 nm | 99 % - 100 % | 90 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$384
|
| 430-1155 | Polarizing beamsplitter cube | 15 mm | False | 100:1 | UVFS | 308 nm - 308 nm | 99.5 % - 100 % | 95 % - 100 % |
2 in stock
Ships in: 2–5 calendar days
$408
|
| 430-1157 | Polarizing beamsplitter cube | 15 mm | False | 100:1 | UVFS | 355 nm - 355 nm | 99 % - 100 % | 90 % - 100 % |
7 in stock
Ships in: 2–5 calendar days
$396
|
| 430-1157-M2P | Polarizing beamsplitter cube | 15 mm | True | 100:1 | UVFS | 355 nm - 355 nm | 99 % - 100 % | 90 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$456
|
| 430-1205 | Polarizing beamsplitter cube | 20 mm | False | 100:1 | UVFS | 308 nm - 308 nm | 99.5 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$456
|
| 430-1207 | Polarizing beamsplitter cube | 20 mm | False | 100:1 | UVFS | 355 nm - 355 nm | 99 % - 100 % | 95 % - 100 % |
Out of stock
Ships in: 62–65 calendar days
$456
|
We can make this for you
No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.
Specifications
| Product Type | Polarizing beamsplitter cube |
| Side A length Lower Tolerance | -0.3 mm |
| Side A length upper tolerance | 0.3 mm |
Surface 1
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 90 % - 100 % |
Surface 1, Wavelength 1
| Coating | HR |
| Polarization | s/p |
Surface 2
| Surface quality, grind or polish | Polished |
| Power and Irregularity, fringes @633 nm | -(0.5) |
| Clear Aperture, % | 90 % - 100 % |
Surface 2, Wavelength 1
| Coating | AR |
Description
- Durable and convenient
- Optimized for popular laser wavelengths

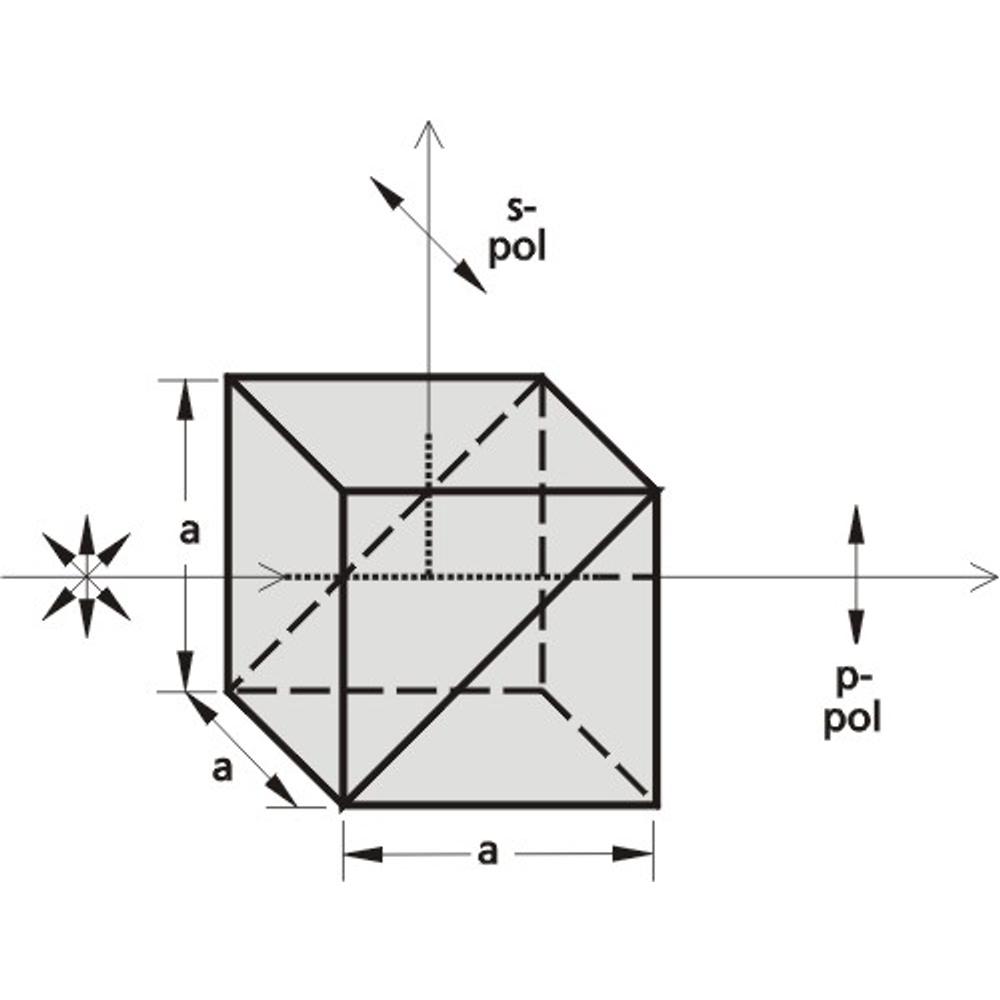

Polarizing film is coated on the internal face of a cube beamsplitter. Thin film polarizers utilize the polarization wich occurs on reflection deviated by 90° angle. Cube polarizing beamsplitters can be optimized for a particular wavelength to give superior performance for laser applications.
