Cube Polarizing Beamsplitters SKU: 430-1207

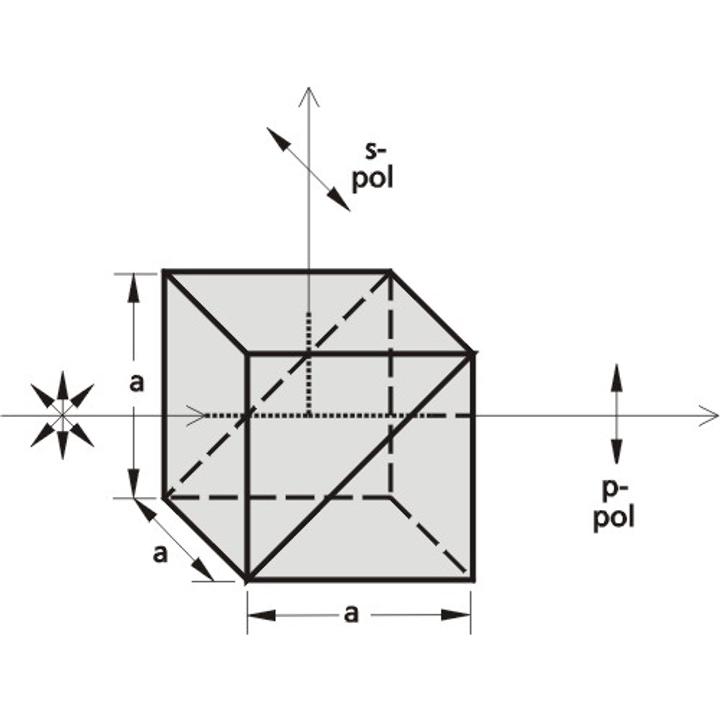

• Durable and convenient • Optimized for popular laser wavelengths Polarizing film is coated on the internal face of a cube beamsplitter. Thin film polarizers utilize the polarization wich occurs on reflection deviated by 90° angle. Cube polarizing beamsplitters can be…
Variant specifications
| Specification | Value |
|---|---|
| Wavelength | 355 nm |
| Reflection (s-pol) | Rs>99% |
| Transmission (p-pol) | Tp>90% |
| Dimensions | 20 x 20 mm |
| Group | UVFS, unmounted, 355 nm |
Shared product specifications
These specifications apply across the Cube Polarizing Beamsplitters product family.
| Material | BK7, UV FS |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Surface flatness | λ / 4 @ 633 nm |
| Clear aperture | 90% of the face size |
| Beam deviation | <3 arcmin |
| Dimension tolerance | ±0.3 mm |
| Laser Damage Threshold | 0.3 J / cm²&ⁿbsp; 10 ns pulses at 1064 nm |
Classification
| Type | Glan-Taylor|Glan-Laser|prism |
