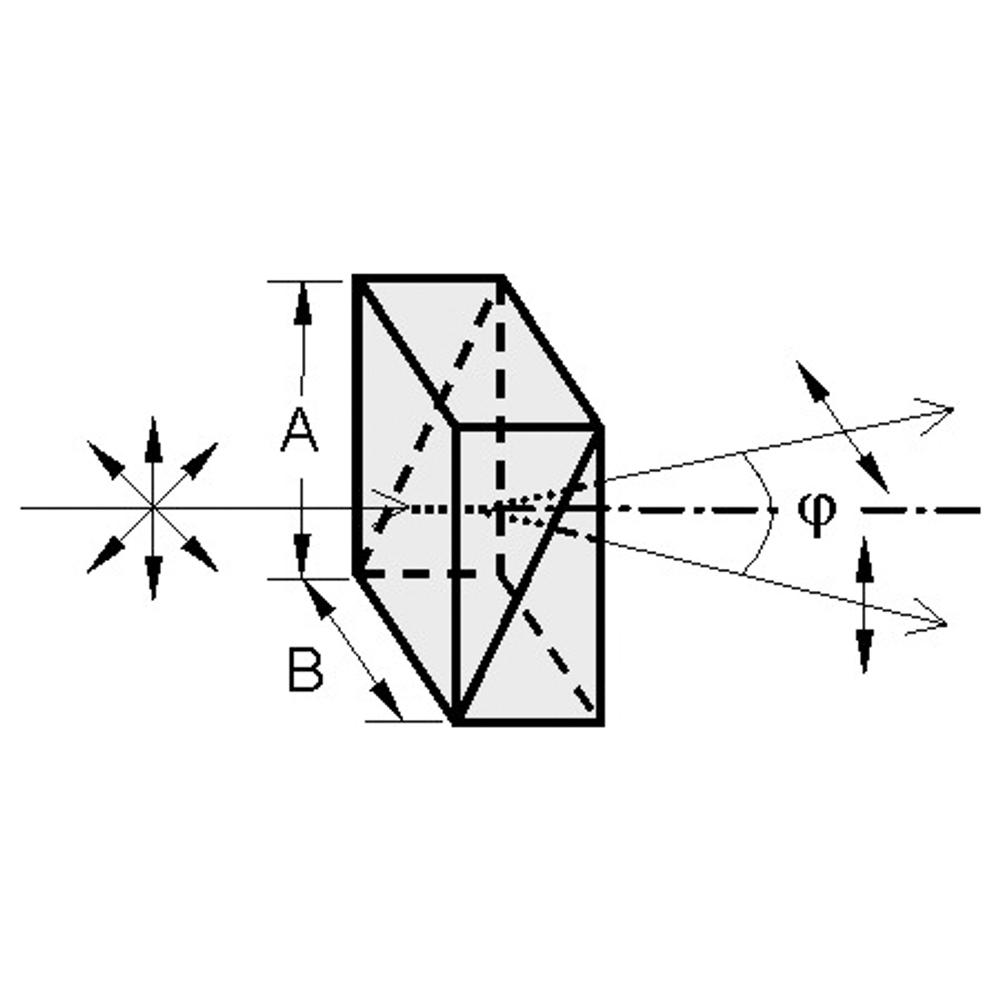

Wollaston Prisms

• Split a beam into two orthogonally polarized divergent beams • Made from the finest optical grade natural calcite Wollaston Prism Polarizer consists of two equal calcite prisms. Both output beams are almost equally… Read more →

From $617 Configure & order →

Volume discount

5–9 units −5%
10+ units −10%

Applied in your cart. Quantities of any variant of this product count together.

Configure & order — pick a catalog variant or configure your own

Product

Side A length 10 mm - 14 mm · 3 values Any mm

Mounted Any

Beam Separation Angle Any deg;min;sec

deg;min;sec

11 catalog variants — refine the spec to narrow it down.

SKU	Product Type	Side A length	Mounted	Mount Outer Diameter	Material	Design Wavelength Range	Beam Separation Angle	Coating
450-2101	Wolaston	10 mm	False	—	Natural Calcite	300 nm - 2200 nm	10 deg 0 min 0 sec	Uncoated	4 in stock Ships in: 2–5 calendar days $617
450-2101-M2Ps	Wolaston	10 mm	True	25.4 mm	Natural Calcite	300 nm - 2200 nm	10 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $689
450-2102	Wolaston	10 mm	False	—	Natural Calcite	300 nm - 2200 nm	20 deg 0 min 0 sec	Uncoated	3 in stock Ships in: 2–5 calendar days $675
450-2102-M2Ps	Wolaston	10 mm	True	25.4 mm	Natural Calcite	300 nm - 2200 nm	20 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $747
450-2121	Wolaston	12 mm	False	—	Natural Calcite	300 nm - 2200 nm	10 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $744
450-2121-M2Ps	Wolaston	12 mm	True	—	Natural Calcite	300 nm - 2200 nm	10 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $816
450-2122	Wolaston	12 mm	False	—	Natural Calcite	300 nm - 2200 nm	20 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $800
450-2141	Wolaston	14 mm	False	—	Natural Calcite	300 nm - 2200 nm	10 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $785
450-2141-M2P	Wolaston	14 mm	True	—	Natural Calcite	300 nm - 2200 nm	10 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $857
450-2142	Wolaston	14 mm	False	—	Natural Calcite	300 nm - 2200 nm	20 deg 0 min 0 sec	Uncoated	1 in stock Ships in: 2–5 calendar days $838
450-2142-M2P	Wolaston	14 mm	True	—	Natural Calcite	300 nm - 2200 nm	20 deg 0 min 0 sec	Uncoated	Out of stock Ships in: 62–65 calendar days $910

We can make this for you

No catalog variant matches your exact spec. Add it to your cart as a custom item — sales will confirm price and lead time within 1 business day.

Specifications

Product Type	Wolaston
Shape Type	Square
Side A length Lower Tolerance	-0.25 mm
Side A length upper tolerance	0.25 mm
Material Type	Crystalline Material
Material	Natural Calcite
TWD, fringes @633 nm	-(0.5)
Design Wavelength Range	300 nm - 2200 nm

Surface 1

Surface quality, grind or polish	Polished
Power and Irregularity, fringes @633 nm	-(0.5)

Surface 1, Wavelength 1

Coating

Uncoated

Surface 2

Surface quality, grind or polish	Polished
Power and Irregularity, fringes @633 nm	-(0.5)

Surface 2, Wavelength 1

Coating

Uncoated

Description

Split a beam into two orthogonally polarized divergent beams
Made from the finest optical grade natural calcite

Wollaston Prism Polarizer consists of two equal calcite prisms. Both output beams are almost equally deviated. Angular separation of output beams depends on wavelength. The use of the highest grade calcite provides useful transmission covering 300-2200 nm range.
