Wollaston Prisms SKU: 450-2122

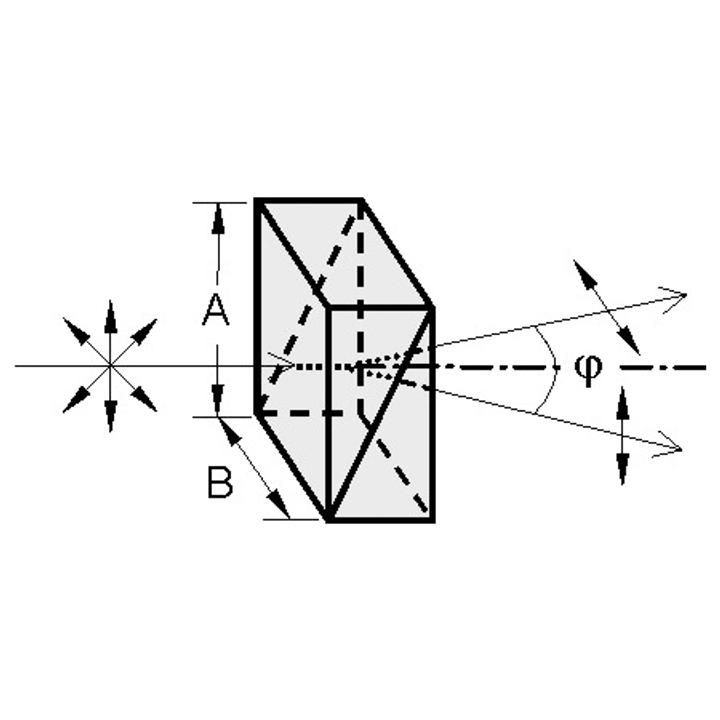

• Split a beam into two orthogonally polarized divergent beams • Made from the finest optical grade natural calcite Wollaston Prism Polarizer consists of two equal calcite prisms. Both output beams are almost equally deviated. Angular separation of output beams depends on…
Variant specifications
| Specification | Value |
|---|---|
| Standard dimensions A x B | 12 x 12 mm |
| Beam separation φ | ϕ-20° |
| Group | Unmounted Natural Calcite Wollaston Prisms |
Shared product specifications
These specifications apply across the Wollaston Prisms product family.
| Material | Natural Calcite |
| Wavelength Range | 350-2200 nm |
| Extinction Ratio | 1:100 000 |
| Surface quality | 40-20 scratch & dig (MIL-PRF-13830B) |
| Wavefront distortion | λ / 4 at 633 nm |
| Separation angle | 10 or 20 deg |
| Dimension tolerance | ±0.25 mm |
Classification
| Type | Glan-Taylor|Glan-Laser|prism |
